ICON Vehicle Dynamics K67201 7 Stage 2 Suspension SystemK67201
2008-2010 FORD F250/F350 7 inch LIFT STAGE 2 SUSPENSION SYSTEM

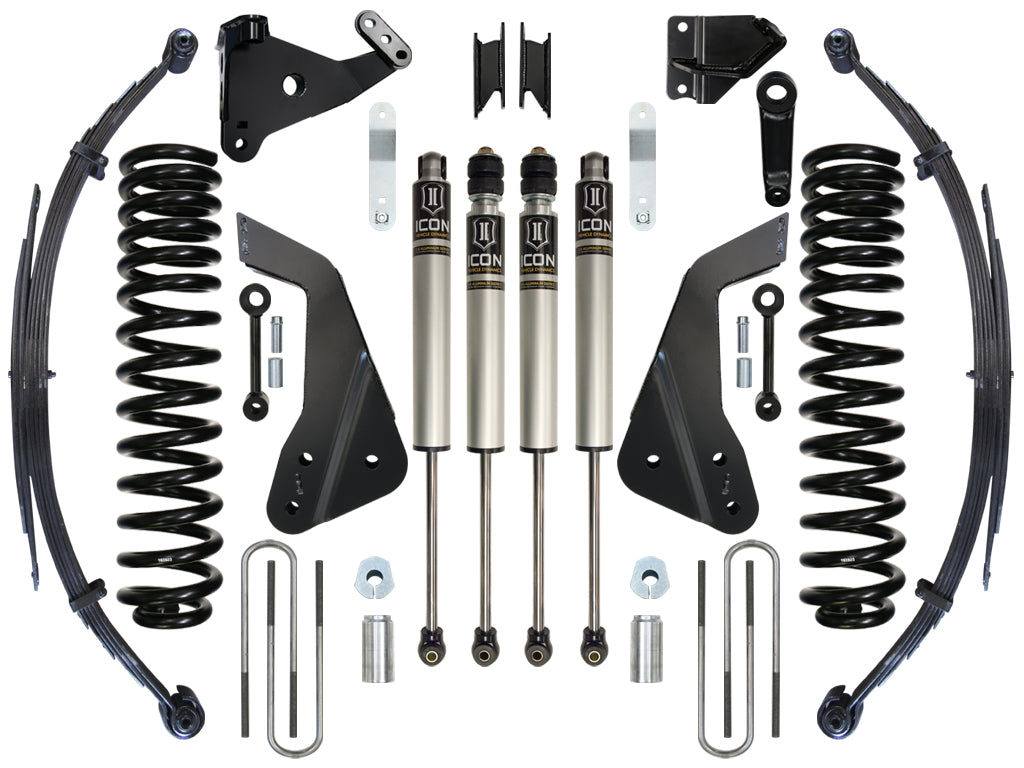

ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance. Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Dutys towing capacity. ICONs 7†Suspension System for the 08-10 Super Duty yields enough lift to clear 37†tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 2 System is comprised of 7†lift dual rate coil springs, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5 inch lift progressive rate leaf springs w/ U-bolts, and 2.0 Aluminum Series smooth body front & rear shocks.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
- Hard anodized aluminum shock body with 5/8†polished nitro steel shaft
- Heavy duty radius arm drop brackets
- Correctly positioned steering and track bar components
- Rear progressive design leaf pack for smooth compliant ride
- No drive shaft modifications needed
Information:
APPLICATION NOTE #29: 7†SYSTEMS USING A 4-LINK IN PLACE OF THE FACTORY RADIUS ARMS DO NOT REQUIRE THE USE OF ALIGNMENT CAMS. CASTER CAN BE ADJUSTED BY THE LOWER LINK ARMS
Application Summary:
| Year |
Make/Model |
| 2008-2010 |
Ford F-250 Super Duty |
| 2008-2010 |
Ford F-350 Super Duty |
