ICON Vehicle Dynamics K73001 1-3 Stage 1 Suspension SystemK73001
2007-2018 GM 1500 1-3 inch LIFT STAGE 1 SUSPENSION SYSTEM

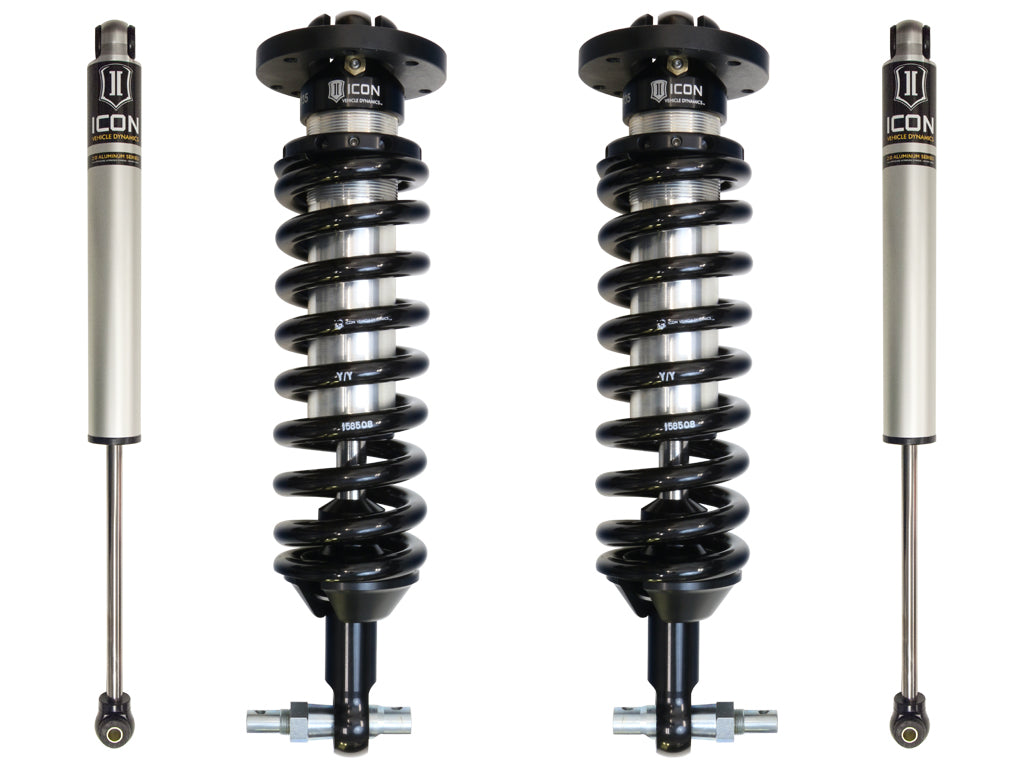

ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platforms suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel†through the range of travel. These coilovers are also height adjustable from 1-3†allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Fits 2WD and 4WD models
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers allow for f 1-3 inch of front lift height over stock
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 inch shaft
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear IFP shocks with 5/8 inch shock shafts
Information:
TECH NOTE: Not compatible with models equipped Magnetic Ride Control
Application Summary:
| Year |
Make/Model |
| 2007-2020 |
Chevrolet Silverado 1500 |
| 2019 |
Chevrolet Silverado 1500 LD |
| 2014-2020 |
Chevrolet Suburban |
| 2007-2014 |
Chevrolet Suburban 1500 |
| 2007-2020 |
Chevrolet Tahoe |
| 2007-2018 |
GMC Sierra 1500 |
| 2019 |
GMC Sierra 1500 Limited |
| 2007-2020 |
GMC Yukon |
| 2015-2020 |
GMC Yukon XL |
| 2007-2014 |
GMC Yukon XL 1500 |
