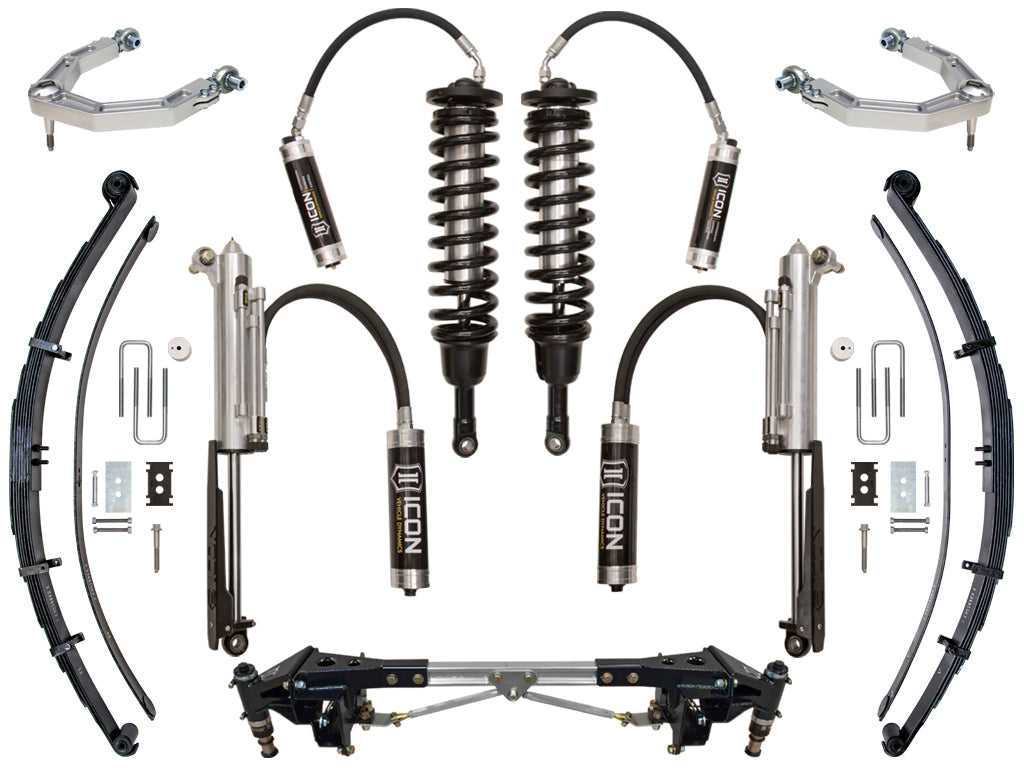

ICON Vehicle Dynamics K93054 Stage 4 Suspension SystemK93054
2010-2014 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM
ICON RXT Multi-Rate Leaf Spring:
- Key Features of the Raptor Front 3.0 Coilover Shock:
- 17-4 Stainless Steel Taper Adapter Pin Provides OEM Like Fitment
- O-ring sealed dust cover
- 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coilover Shocks
- Key Features of Hydraulic Bump Stop System:
- Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
- Easy bolt on installation without having to remove the truck bed
- 6061 Solid billet cross bar that is polished & anodized
- Bump stop striker pad does not require leaf spring disassembly
- Comfortable on road manners with sufficient damping capability under extreme load
- Hydro-pneumatic bump stop increases bump energy capacity
- Oversized 1†Heavy Duty CNC Machined Shock Shafts
- Velocity sensitive Hydro-pneumatic bump stop increases the amount of energy absorbed the faster it is hit
- Reduces rear end kick and improves overall performance
- Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use
- Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
- Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
- Increases frame rigidity and improves overall vehicle dynamics
- Industry first billet cross beam
- Pre-tuned and Nitrogen charged for most Ford Raptors
- Integrated adjustability for future ICON Raptor specific products
- Key Features of the Raptor RXT Multi-Rate Leaf Spring:
- Extended Droop Travel and Increased Overall Performance on and off road
- 3 User-adjustable spring rates for unique setups
- Triple military wrap front eyelet and rear half wrap for increased durability
- Rebound leaf reduces severe axle wrap
- Tip inserts and leaf separators to reduce friction and improve ride comfort
- Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
- OE style bonded rubber bushings that are maintenance free and do not squeak
- Bump stop extensions included for use when no aftermarket bump stop kit is installed
- New Ford OE front spring eye bolts included for easy removal and re-installation of springs
- Key Features of the Raptor RXT Rear 3.0 Bypass Shock:
- 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
- Key Features of the Raptor Upper Control Arms:
- Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
- Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
- Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
- Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
- High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
- Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
- High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
- Replaceable bypass tubes that can easily be replaced if damaged
- Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
- Special engineered damped valve seats for quiet and precise operation without the standard bypass loud “clicking†noise you will find with other brands
- 6061 Billet Aluminum
- Multi stage cad plated finish with polished and anodized top cap / rod ends
- Protective shin guards standard with every kit
- Nitrogen Charged 6063-T832 Aluminum 10†Remote Reservoirs
- Adjustable Ride Height from 1 – 3†of Lift
- ICON Engineered Eibach Springs Offer Increased Travel and Performance
- Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
- Precision CNC Machined
- Patented Delta Joint (U.S. Patent No. 10,731,700)
- RSMX PTFE Lined 7/8†Rod Ends
- Easily Adjustable on the Vehicle for Perfect Wheel Alignments
Information:
Ships in multiple boxes
Application Summary:
| Year |
Make/Model |
| 2010-2014 |
Ford F-150 |
