ICON Vehicle Dynamics K93061 0-2.63 Stage 1 Suspension SystemK93061
2014 FORD F150 4WD 0-2.63 inch LIFT STAGE 1 SUSPENSION SYSTEM

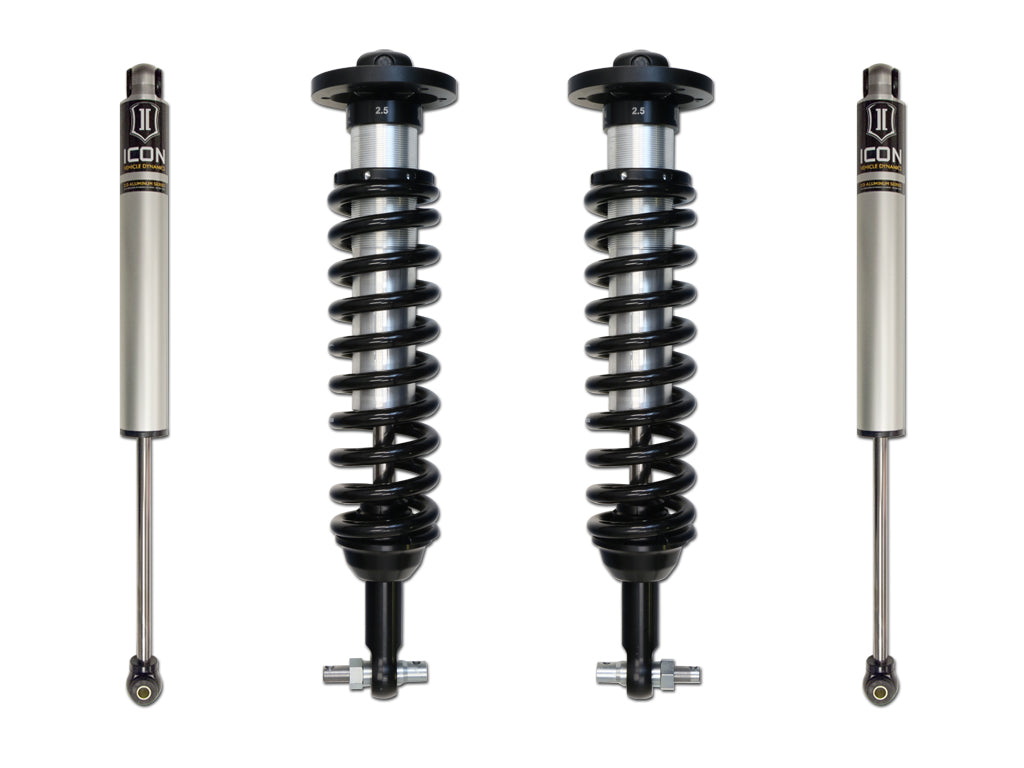

ICON Vehicle Dynamics 2014 Ford F150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5†coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel†through the range of travel. These coilovers are also height adjustable from 0-2.63†allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2014 F150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers provide 0-2.63 inch of lift height
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 inch shaft
- High strength alloy CNC machined lower bar pin
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 aluminum body IFP rear shock with 5/8 inch polished shaft
- 100% bolt-on system - no drilling, cutting, or welding necessary for install
Information:
TECH NOTE: Included rear shocks are compatible with 0-1 inch of rear lift over stock on most models
Application Summary:
| Year |
Make/Model |
| 2014 |
Ford F-150 |
