Description

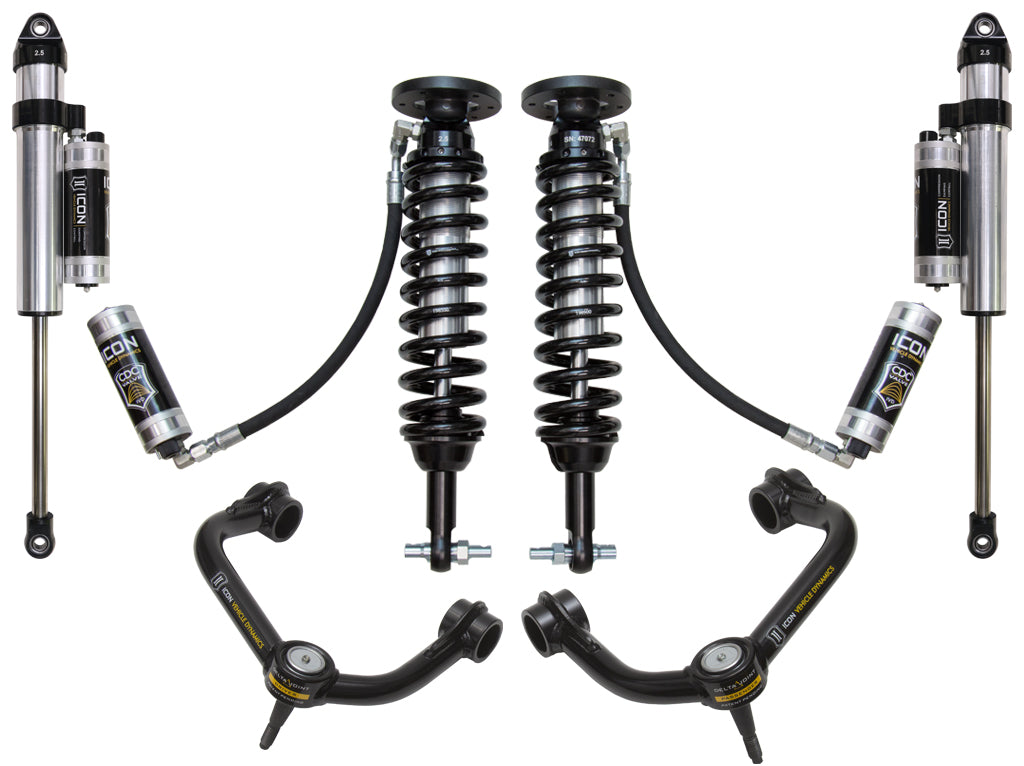

ICON Vehicle Dynamics K93095T 1.75-3 Stage 5 Suspension System with Tubular Upper Control Arm

K93095T

2015-2020 FORD F150 2WD 1.75-3 inch LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UCA

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Corrosion resistant CAD plated coilover shock bodies with 7/8 inch shafts
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • FK Rod End bearings for extended longevity and minimal deflection
  • Bolt-on system - No cutting or welding necessary for install
  • Unique valving developed for the lighter weight of the 2015-2020 F150
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coilovers from 1.75-3 inch of lift height
  • ICON CDCV equipped shocks front and rear for fully adjustable tuneability of your shocks
  • Tubular upper control arms for added strength, durability, and improved alignment geometry
  • 6061 aircraft grade aluminum CNC machined components

Information:

TECH NOTE: Included rear shocks are compatible with 0-1 inch of rear lift over stock on most models

Application Summary:

Year Make/Model
2015-2020 Ford F-150
