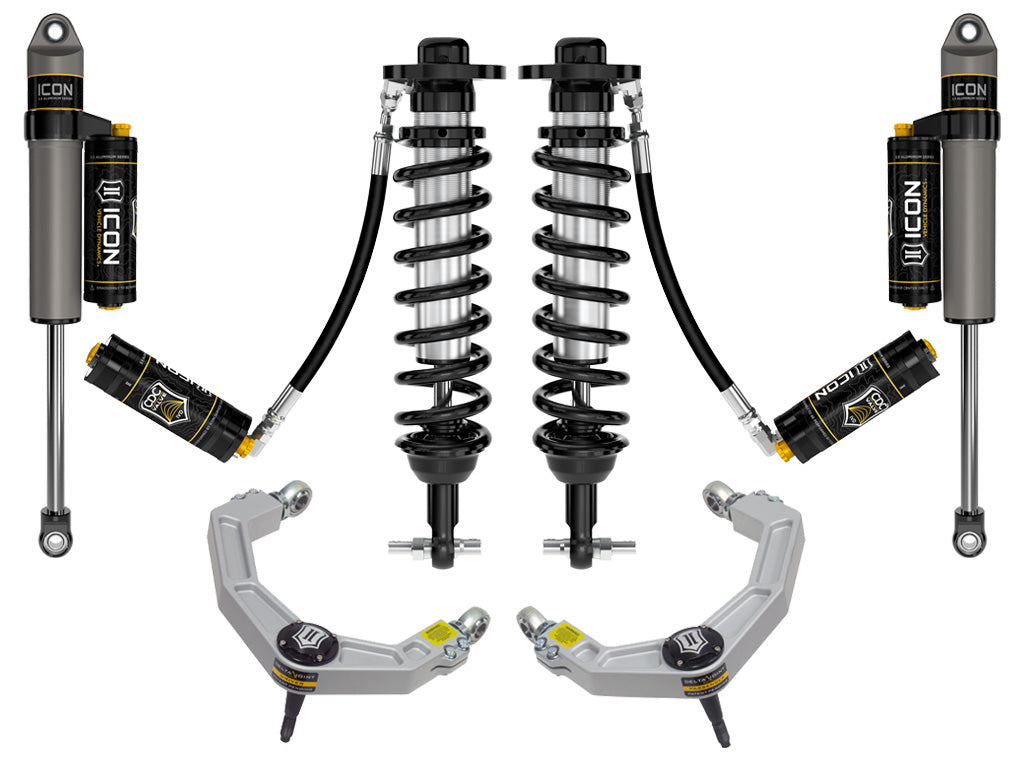

ICON Vehicle Dynamics K93115 0-2.75 Stage 5 Suspension System with Billet Upper Control ArmK93115
Stage 5 includes 2.5†coilovers with remote reservoirs with height adjustability from 0-2.75†of lift. Billet UCA for alignment correction. ICON 2.5 Series rear shocks. CDCV in front and rear shocks allow for compression damping adjustment.
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Billet Aluminum Upper Control Arms for added strength, durability, and alignment spec range
- ICON CDC Valve allows quick and easy end-user compression adjustment
- Corrosion resistant CAD plated coilover shock bodies with 7/8 inch shafts
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Bolt-on system - No cutting or welding necessary for install
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers from 0-2.75 inch of lift height
Information:
Recommended Aftermarket Wheels: ICON Alloys | 18x9 inch w/ 5.25 inch Backspace / 6mm Offset
Application Summary:
| Year |
Make/Model |
| 2021-2023 |
Ford F-150 |
