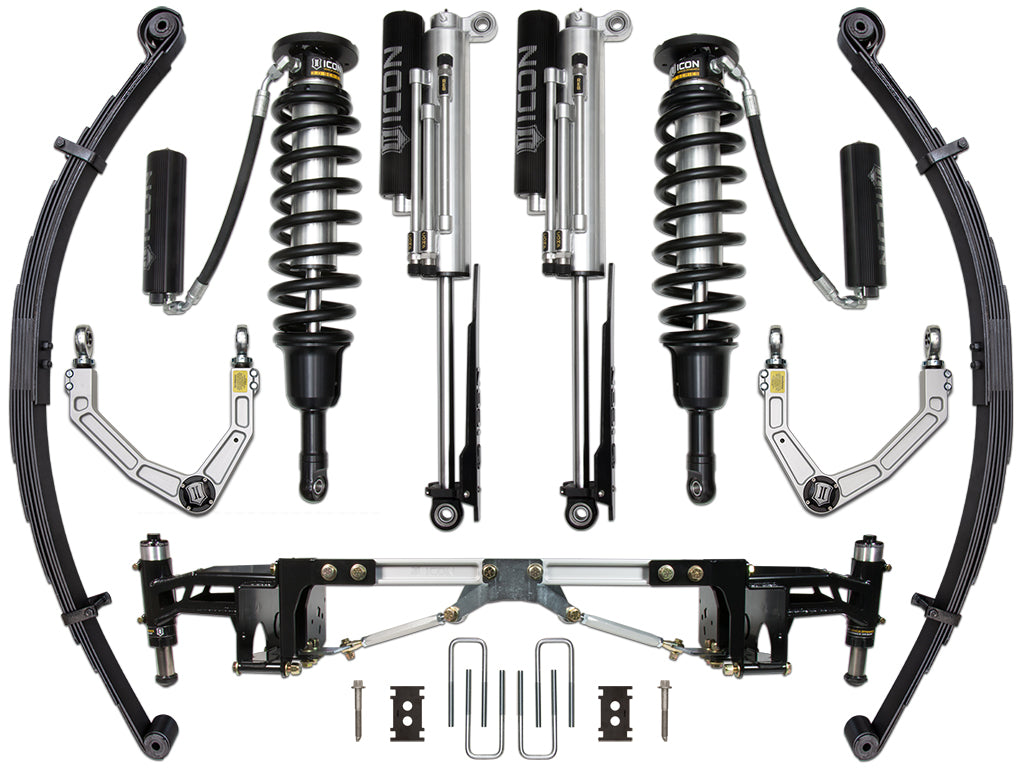

ICON Vehicle Dynamics K93154 Stage 4 Suspension SystemK93154
2017-2020 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM
ICON Vehicle Dynamics products are proudly designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts. With a reputation for quality, performance, and service it's clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for the 2017-2020 Ford F150 Raptor.
- 3.0 SERIES COILOVER SHOCK KIT
- Built-in caster correction improves front end geometry
- Patented Delta Joint (U.S. Patent No. 10,731,700) for maximum durability and noise-free operation
- Adjustable coilovers yield 1-3†of front lift height
- Camber and caster adjustability allows for precise wheel alignment
- ICON double adjuster sleeves for easy on-vehicle adjustment
- Vehicle specific taper pin provides OE-like fitment
- PTFE Lined 7/8†FK Rod Ends increase rigidity and improve response
- Built in o-ring sealed dust cover cap
- 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
- 3-tube bypass design and inchBump Zone inch technology provides multiple unique zones of damping and rebound control
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
- 12 inch finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Easy-to-adjust detented knobs offer quick adjustability without the use of tools
- Specially engineered damped valve stops for quiet and precise operation without the loud “clicking†noise common with other brands
- Urethane shin guards help to protect the shock shaft & rod end from premature wear
- HYDRAULIC REAR BUMP STOP KIT
- Bolt-on installation does not require any fabrication or removal of the bed
- 2.5†travel hydraulic bump stop reduces rear end ‘kick and improves overall vehicle performance
- Heavy duty CNC machined 1†shock shafts
- Velocity sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
- 6061 billet aluminum crossmember increases chassis rigidity to improve overall vehicle dynamics
- Steel clamshell brackets strengthen the frame in critical areas to prevent damage from extreme off-road use
- Adjustable tension rods allow the frame to be preloaded to withstand torsional force during hard impacts
- Heavy duty 1.25†CNC machined nitro steel shafts
- Multi-stage CAD plated body for maximum corrosion resistance
- Replaceable noise-reducing striker pad
- Fully serviceable
- Superior low speed control reduces body roll and increases on-road stability
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- MULTI-RATE LEAF SPRING KIT
- 3 user-adjustable spring rates for unique vehicle setups
- Triple military wrap front eyelet and rear half wrap for increased durability
- Rebound leaf reduces severe axle wrap
- Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
- Direct bolt-in to OEM spring location makes for an easy install
- “ICON 1K†tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
- ICONs multi-stage hydraulic “Bump Zone†exponentially increases bottom-out resistance in the last 40% of compression travel
- 10 inch finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- CAD plated shock body with hard anodized piston and top cap
- Barreled coil spring design maximizes travel and provides more efficient packaging
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- BILLET ALUMINUM UPPER CONTROL ARM KIT
- CNC machined 6061 billet aluminum construction for light weight and exceptional strength
Information:
Ships in multiple boxes
Application Summary:
| Year |
Make/Model |
| 2017-2020 |
Ford F-150 |
