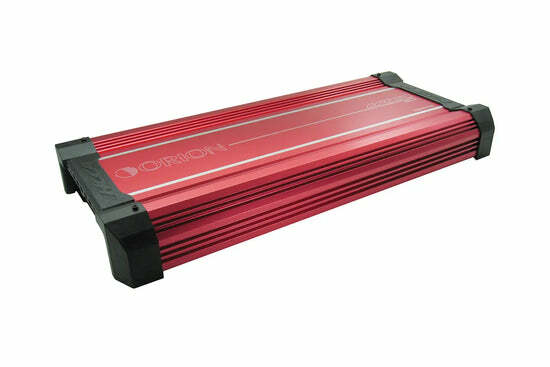

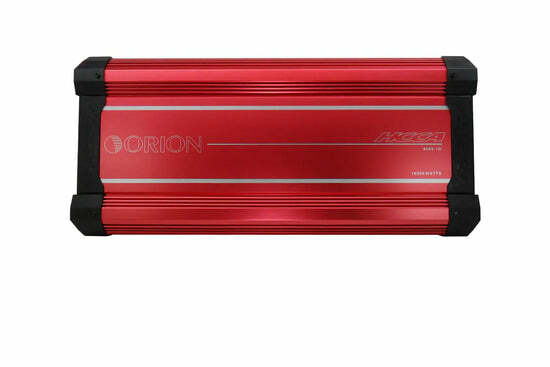

ORION HCCA Series 8000W RMS 1-Channel Class-D Amplifier

HCCA8000.1DSPLX

Unleash Unrivaled Power and Precision
The ORION HCCA8000.1DSPLX HCCA Series 8000W RMS 1-Channel Class-D Amplifier defines the pinnacle of power and precision in car audio. Engineered for audio purists and enthusiasts seeking unparalleled performance, this amplifier redefines your audio experience with unprecedented power and accuracy.

Unleash Auditory Excellence
Elevate your audio journey with the ORION HCCA8000.1DSPLX HCCA Series 8000W RMS 1-Channel Class-D Amplifier. Crafted with precision engineering and advanced features, this amplifier redefines power and accuracy, delivering an auditory experience that resonates profoundly.

Immersive Sound Reproduction
Rediscover your music in its purest form. Every note, beat, and melody – from the softest to the most intense – is meticulously reproduced for an immersive and authentic listening experience.

Unrivaled Power and Precision
Experience your music with unrivaled power and precision. The ORION HCCA8000.1DSPLX HCCA Series Amplifier seamlessly blends colossal power with exceptional audio quality, creating an auditory masterpiece that leaves a lasting impact.

Elevate Your Drive
Step into the realm of unmatched power with the ORION HCCA8000.1DSPLX HCCA Series 8000W RMS 1-Channel Class-D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical supremacy. It's time to embrace sound in its purest form.

FEATURES

Class D Amplification - Experience the epitome of efficiency and power with Class D amplification, delivering unparalleled and precise sound reproduction.
8000 Watts RMS - Immerse yourself in a realm of unmatchable audio power with 8000 Watts RMS, delivering commanding and precise sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12/24dB / Octave Low-Pass Filter
Remote Gain Controller Included
Low-Level and High-Level Balanced Input
Infrasonic Filter
Concealed Controls Under Locking Top Panel Orion Patented ESP®
Digitally Programmed Input Voltage for Fast, Accurate System Setup
Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

POWER RATINGS

- RMS Power @ 4 Ohms @ 0.5% THD+N: 2900W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 5000W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 8500W
- Linked with identical Amplifier
  RMS Power @ 2 Ohms @ 0.5% THD+N: 17000W

POWER TERMINAL MANAGEMENT

  Positive Terminals: 3 x 0 AWG.
  Negative Terminals: 3 x 0 AWG.
  Remote Turn-ON Signal: 10 AWG.
  Speaker Output Terminals: 4 AWG.

SPECIFICATIONS

- Frequency Response: 15Hz - 250Hz
- Low Pass Crossover: 40Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >88%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Input Impedance: 24K Ohms
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: 10 - 40Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 750A recommended (not included)
- Dimensions (L x W x H): 24.02" x 11.89" x 3.15" (610x302x80mm)
