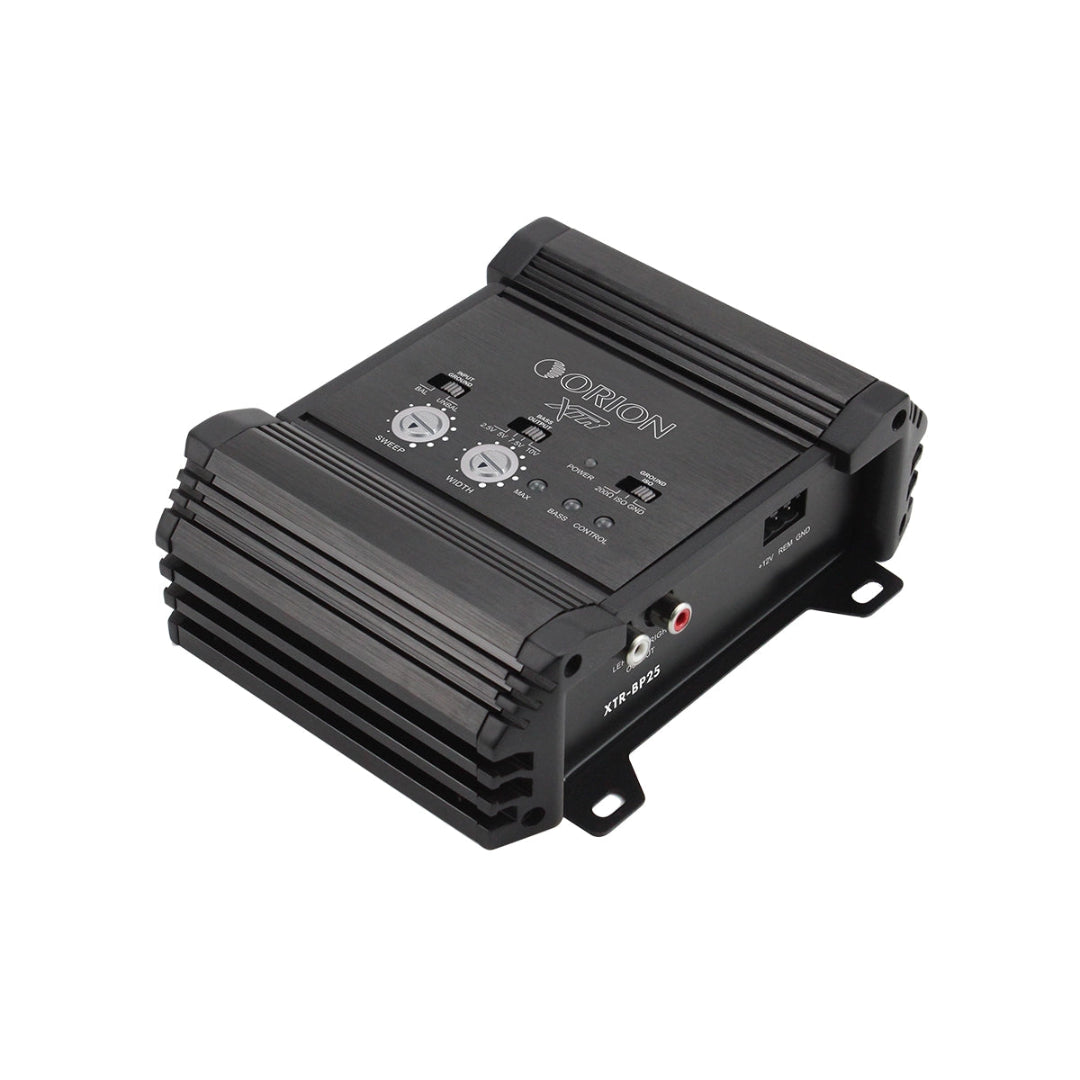

ORION XTR Series Bass Processor w/ Aluminum Housing

PN. XTR-BP25

XTR-BP25 Bass Processor – Enhanced Low-Frequency Performance

Upgrade your car audio system with the XTR-BP25 Bass Processor. It restores and enhances low-frequency performance for stronger bass.

This processor recovers bass often lost in compressed audio and factory systems. As a result, your subwoofers deliver deeper and more controlled output. In addition, it improves clarity and impact.

Precision Bass Tuning

The XTR-BP25 gives you control over your bass response. Therefore, you can fine-tune your system to match your setup.

You can adjust:

• Sweep control to set the frequency center

• Width control to adjust the bandwidth

Because of this, you can achieve deep low-end extension or tight, punchy bass.

High-Output Performance

The processor offers selectable output levels of 2.5V, 5V, 7.5V, and 10V. As a result, it works with a wide range of amplifiers.

Moreover, it maintains strong performance with low distortion and high signal clarity. Your bass stays clean even at higher volume levels.

Easy System Integration

The XTR-BP25 is designed for simple installation. It supports both balanced and unbalanced inputs.

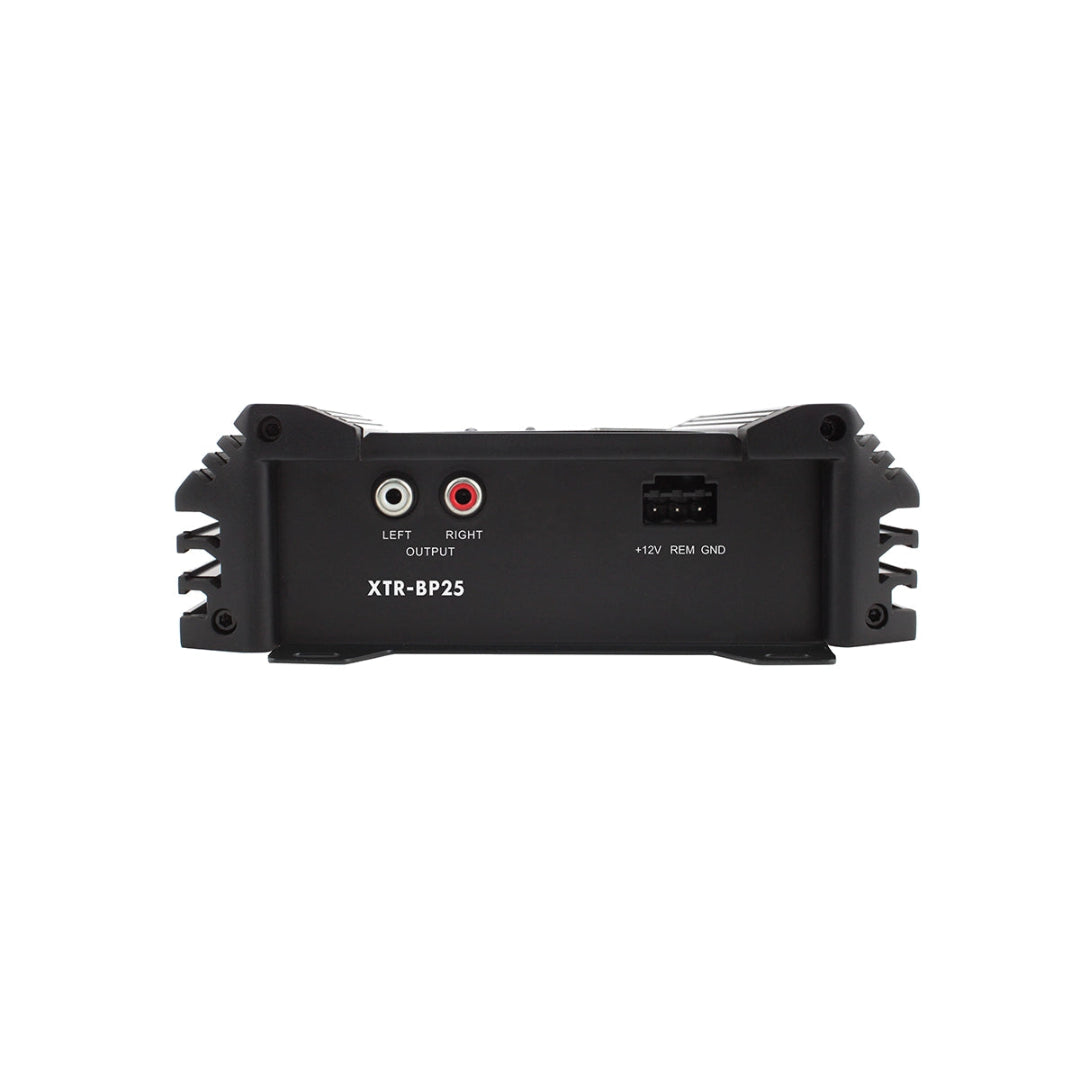

In addition, it includes ground isolation control and RCA connections. Therefore, it integrates easily with factory and aftermarket systems.

Built for Better Sound

Whether you upgrade a stock system or fine-tune a subwoofer setup, the XTR-BP25 delivers reliable performance.

In conclusion, this bass processor gives you better control, stronger output, and cleaner sound. Take your system to the next level with improved bass performance.

KEY FEATURES:

• XTR Performance Bass Processor: Designed to enhance subwoofer performance by restoring and boosting low-frequency signals.
• Bass Restoration Technology: Recovers bass frequencies lost in compressed music or factory audio systems.
• Sweep Frequency Control: Adjusts the center frequency of the bass enhancement for precise bass tuning.
• Width Bandwidth Control: Allows adjustment of the bass restoration range for deeper bass or tighter punch.
• Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match amplifier sensitivity.
• High Signal-to-Noise Performance: Provides clean bass enhancement with a signal-to-noise ratio greater than 110dB.
• Ultra-Low Distortion Processing: Maintains high audio fidelity with less than 0.02% total harmonic distortion.
• Balanced / Unbalanced Input Selection: Ensures compatibility with factory radios and aftermarket head units.
• Ground Isolation Control: Helps eliminate alternator noise and system interference.

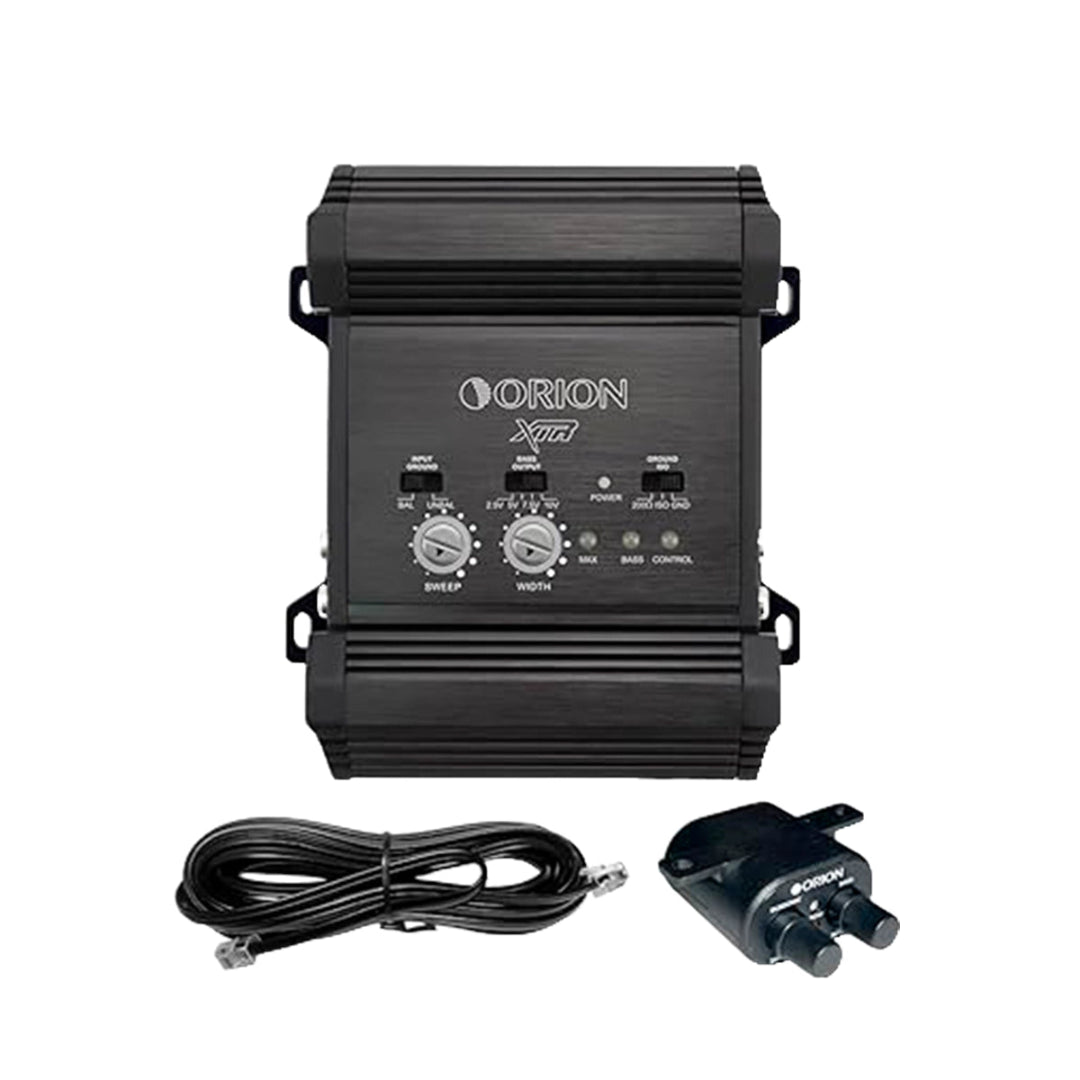

• Remote Bass Control Support: Allows real-time bass adjustment from the driver’s seat.
