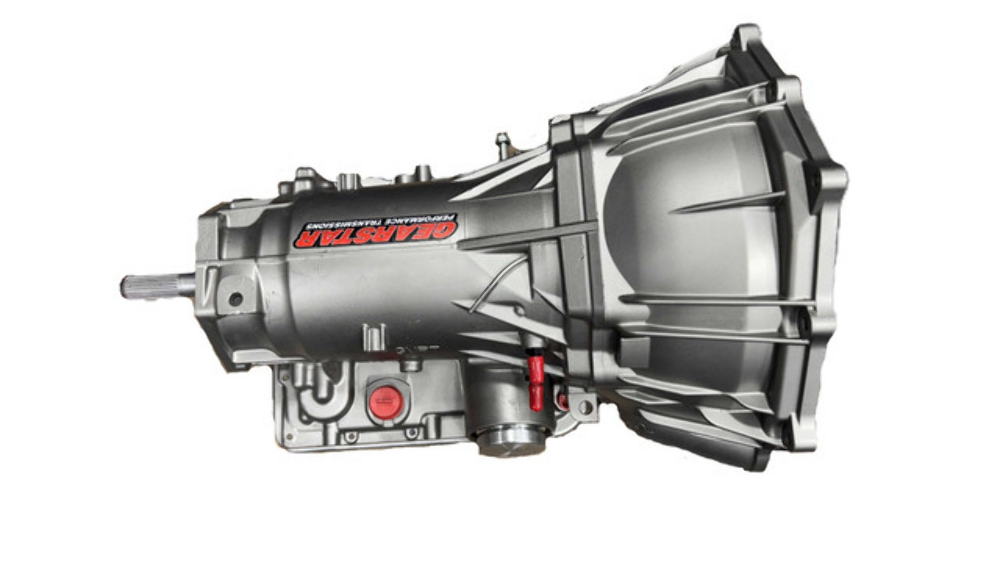

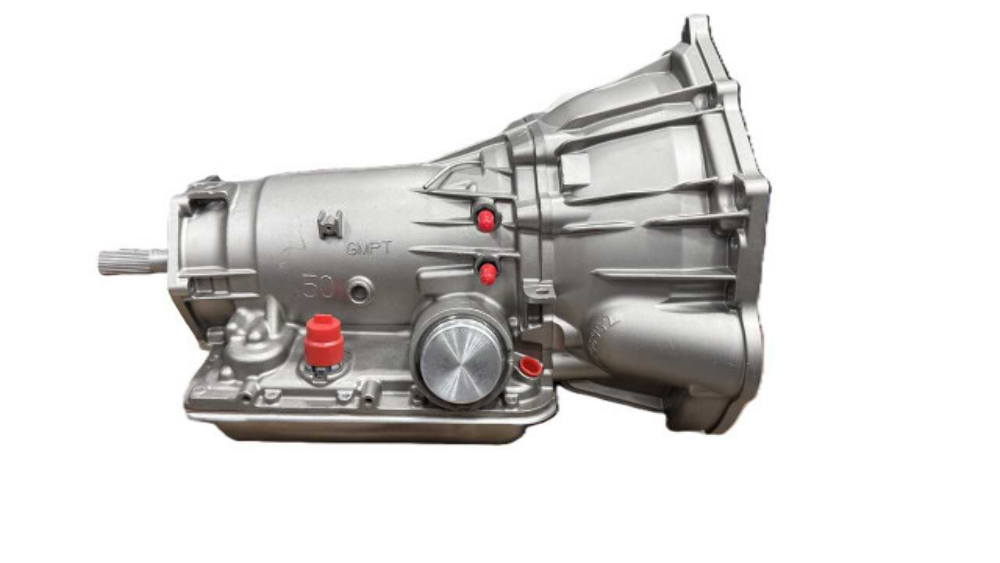

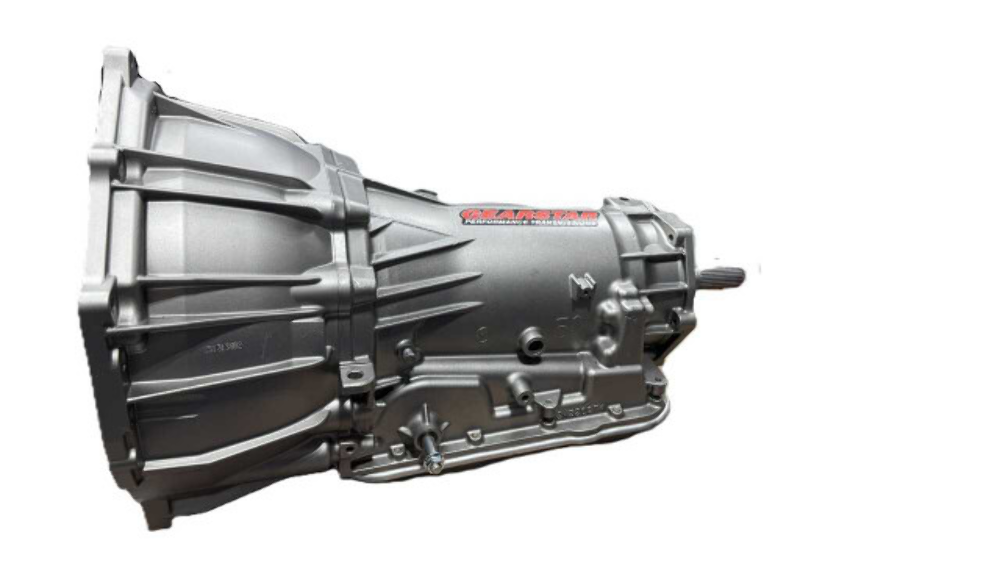

4L70E- designed to attach to an LS engine. The 4L70E features either a 15 or 17-pin main harness connector. You will need to verify the pin count if this is going into a factory application, and plan to use the factory computer. If this is not going into a factory application, you will need to use a standalone transmission controller.
Rated up to 500 HP at the crankshaft
Rated up to 450 lb-ft of torque at the crankshaft
Stall: 2600–3200 RPM

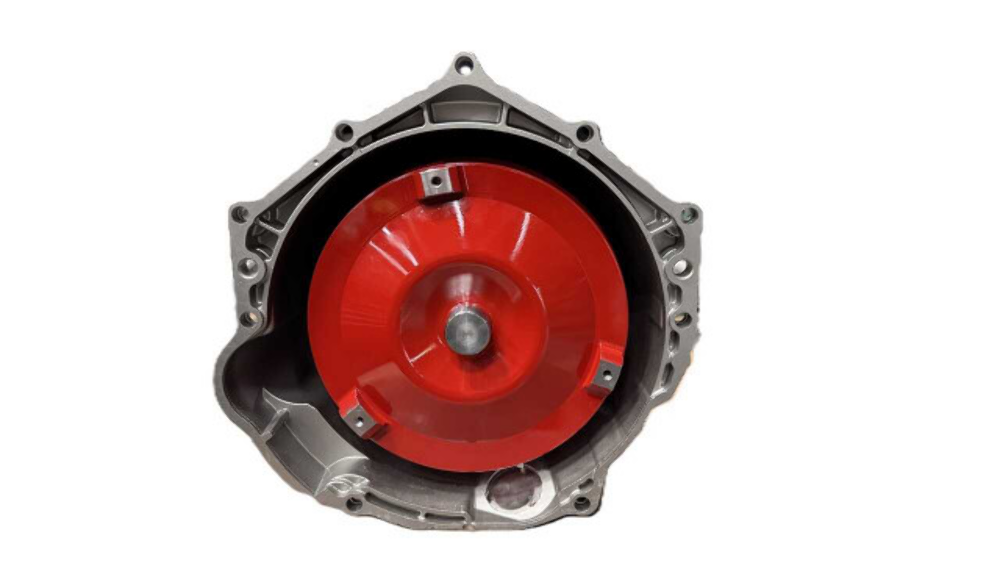

Custom-built & custom-stalled 10" or 11" lock-up billet converter
Master overhaul kit with new steels
Raybestos Stage 1 frictions
New 29-element dual cage sprag
High-capacity upgraded pump assembly
New hardened pump rings
New 13-vane pump rotor
New vanes
New stator
.500 boost valve
Pressure regulator valve
Updated boost valve
Performance Sonnax valve body updates
Bushing kit
New thrust washers
Complete Torrington bearing kit
Heavy-duty hardened sun shell
Heavy-duty expanded capacity input drum with reinforcing sleeve
OE-style 4 pinion planetary gear
Wide carbon-fiber 2-4 band
Corvette servo
New valve body spacer plate
High rev spring kit
New low/rev heavy-duty spring and roller
New shift solenoids
New EPC solenoid
New PWM solenoid
New 3/2 solenoid
New manifold pressure switch
New internal wiring harness with new TCC solenoid
New electronic speed sensor
Filter
New original equipment steel transmission pan
1 year / 12,000 miles (4x4)
| Gear Ratios | 1st | 2nd | 3rd | 4th |
| GM 4L70E | 3.060 | 1.620 | 1.000 |
0.700 |
| 4WD Dimensions |
| Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft |
| Total Length: 27 1/2″ (Including OE T-Case Adapter Housing) |
| Distance to trans mount center: 24 1/2″ |
