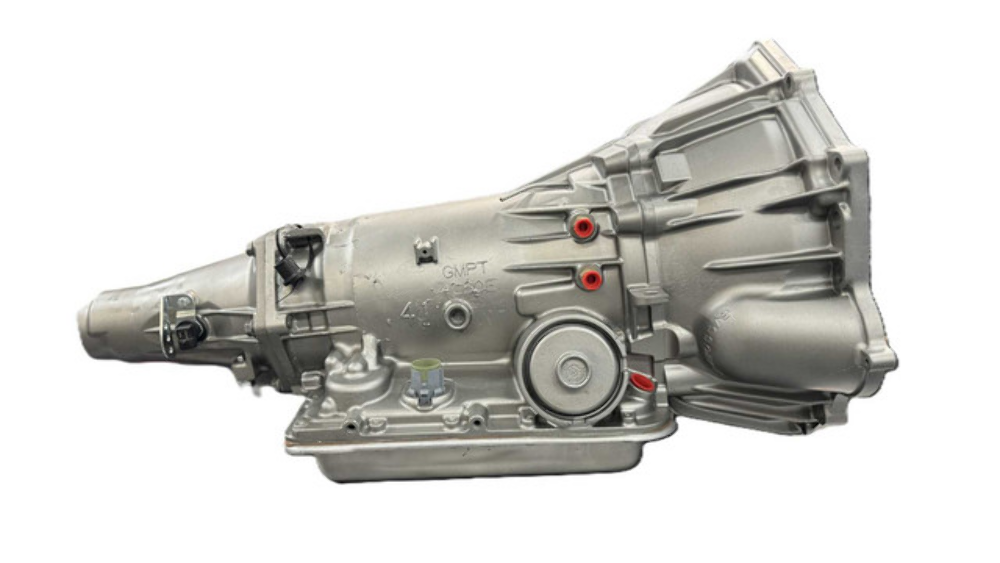

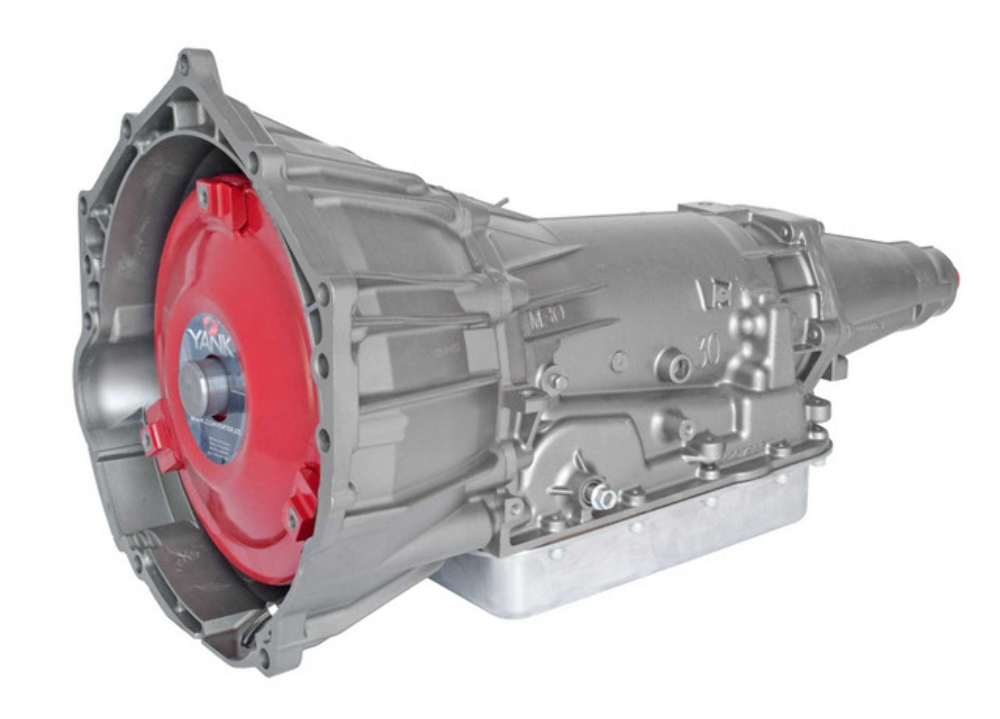

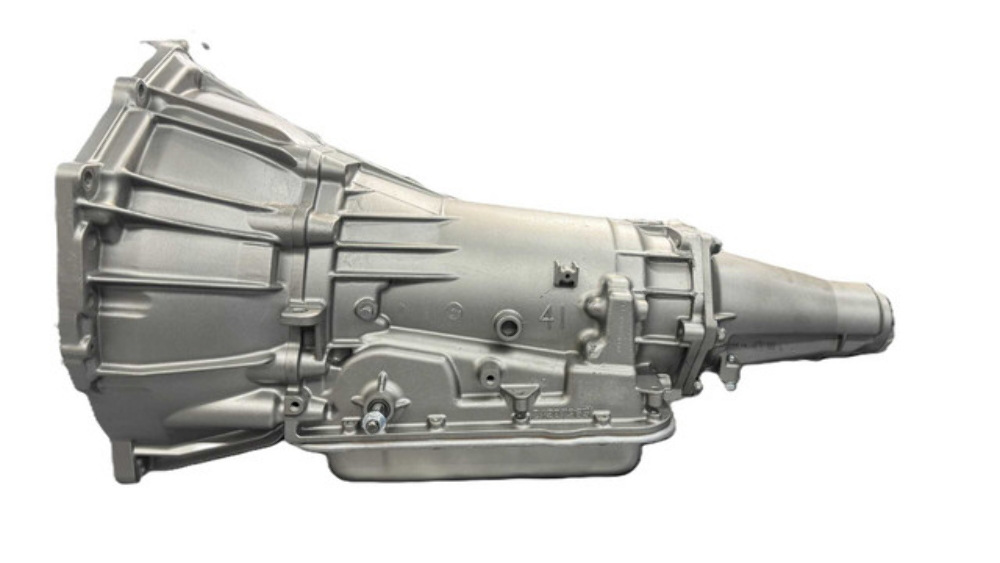

4L70E- designed to attach to an LS engine. The 4L70E features either a 15 or 17-pin main harness connector. You will need to verify the pin count if this is going into a factory application, and plan to use the factory computer. If this is not going into a factory application, a standalone transmission controller will need to be used.
Horsepower: 500 HP
Torque Rating: Up to 500 lb-ft
Stall Range: 2600–3200 RPM
Custom-built lock-up billet converter (10" or 11")
Custom stall matched to the application
Raybestos Stage 1 Frictions
Wide Carbon-Fiber 2–4 Band
Master Overhaul Kit with new steels
High-capacity upgraded pump assembly
New hardened pump rings
New 13-vane pump rotor
New vanes
New stator
New 29-element dual cage sprag
Heavy-duty hardened sun shell
Heavy-duty expanded capacity input drum with reinforcing sleeve
OE-style 4 pinion planetary gear
Complete bushing kit
New thrust washers
Complete Torrington bearing kit
High rev spring kit
New low/reverse heavy-duty spring and roller
.500 boost valve
Pressure regulator valve
Updated boost valve
Performance Sonnax valve body updates
New valve body spacer plate
Corvette servo
New shift solenoids
New EPC solenoid
New PWM solenoid
New 3/2 solenoid
New manifold pressure switch
New internal wiring harness with new TCC solenoid
New electronic speed sensor
New OE steel transmission pan
Universal transmission mount
Filter
2WD: 3-year unlimited mileage
| Gear Ratios | 1st | 2nd | 3rd | 4th |
| GM 4L70E | 3.060 | 1.620 | 1.000 |
0.700 |
| Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft |
| Total Length: 32″ |
| Distance to trans mount center: 24 1/4″ |
