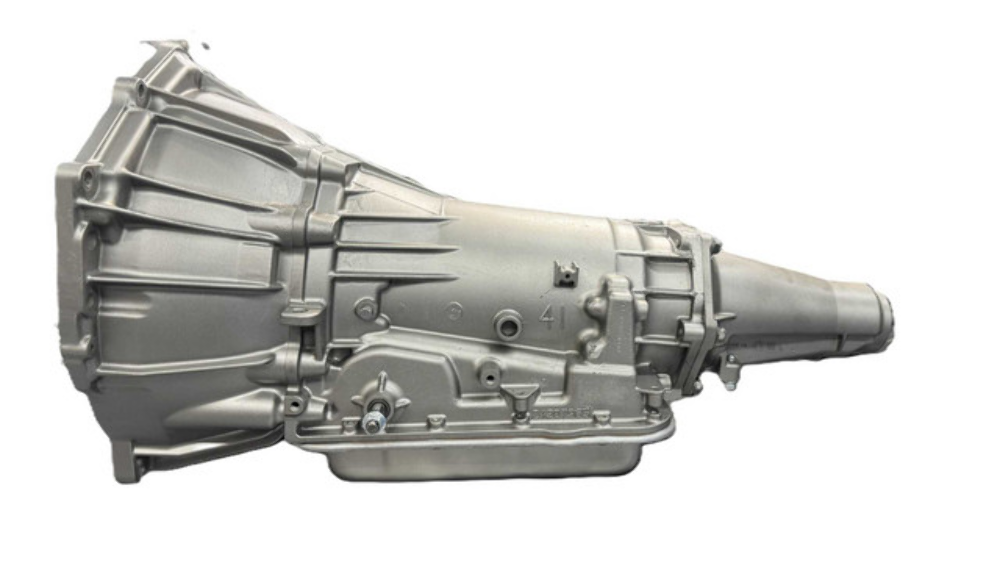

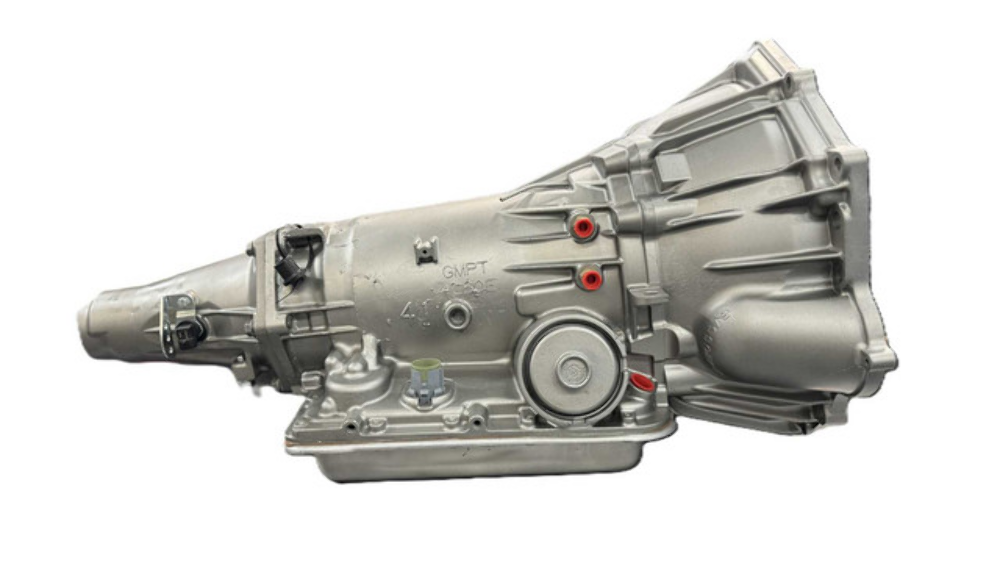

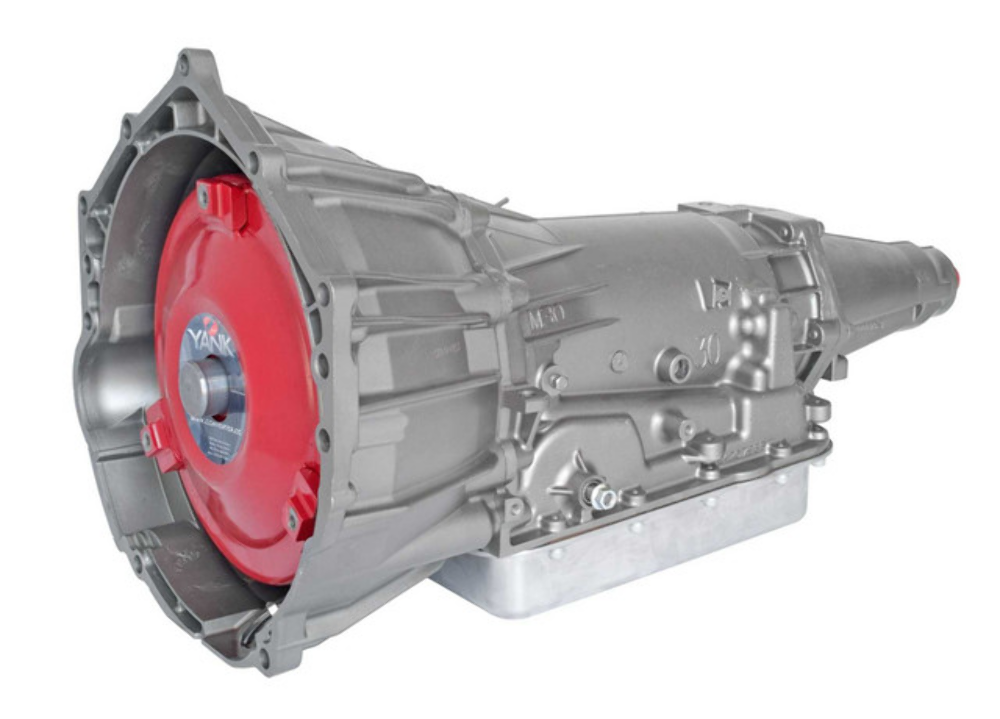

4L70E- designed to attach to an LS engine. The 4L70E features either a 15 or 17-pin main harness connector. You will need to verify the pin count if this is going into a factory application, and plan to use the factory computer. If this is not going into a factory application, a standalone transmission controller will need to be used.
4L70E 2WD Level 4
Warranty: (2WD) 3 Year / 36,000 miles
Rated up to: 650 HP at the crankshaft
Rated up to: 600 ft-lbs. of torque at the crankshaft
Converter: Custom Built & Custom Stalled 9.5", 10” or 11” Lock-Up Billet Racing
Stall: 2600–4000 RPM
Master Overhaul Kit with new steels
Raybestos Stage 1 Racing Frictions
Wide Carbon-Fiber 2-4 Band
High-Capacity Upgraded Pump Assembly
New Hardened Pump Rings
New 13 Vane Pump Rotor
New Vanes
New Stator
Pressure Regulator Valve
Updated Boost Valve
New 29 Element Dual Cage Sprag
Heavy Duty Hardened Sun Shell
Heavy Duty Expanded Capacity Input Drum with Reinforcing Sleeve
Heavy Duty 5 Pinion Front and Rear Planetary Gear Set with Sun Gear
Hardened Output Shaft
Hardened Reaction Shaft and Hub
Bushing Kit
New Thrust Washers
Complete Torrington Bearing Kit
Performance Sonnax valve body updates
New Valve Body Spacer Plate
Corvette Servo
Super Hold 4th Servo
High Rev Spring Kit
New Low/Rev Heavy Duty Spring and Roller
New Shift Solenoids
New EPC Solenoid
New PWM Solenoid
New 3/2 Solenoid
New Manifold Pressure Switch
New Internal Wiring Harness w/ New TCC Solenoid
New Electronic Speed Sensor
Filter
A New Original Equipment Steel Transmission Pan
Universal Transmission Mount
| Gear Ratios | 1st | 2nd | 3rd | 4th |
| GM 4L70E | 3.060 | 1.620 | 1.000 |
0.700 |
| Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft |
| Total Length: 32″ |
| Distance to trans mount center: 24 1/4″ |
