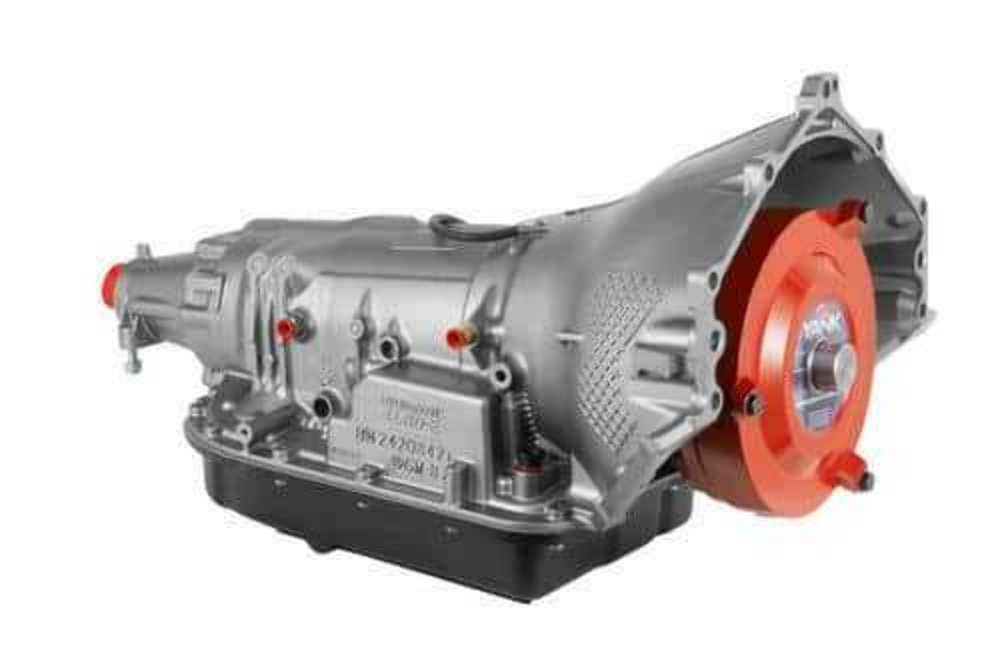

Gearstar Transmission 4L80E LT Level 4 Can Handle 800HP 750lb/ft tq Stall Range 2800-3400 GS4L80ELTL4

Gearstar Transmission 4L80E LT Level 4 Can Handle 800HP 750lb/ft tq Stall Range 2800-3400 GS4L80ELTL4

Gearstar Transmission
GSTGS4L80ELTL4
Heads up — this is a Special Order item. We don't carry it on the shelf, but we can bring it in for you! Lead times vary and can be 10 weeks or more depending on the manufacturer. Give us a call or send us a message so we can check current availability and walk you through your options before you commit to an order.
$16,209.32
$14,163.96
$16,209.32
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Gearstar Transmission 4L80E LT Level 4 Can Handle 800HP 750lb/ft tq Stall Range 2800-3400 GS4L80ELTL4

Gearstar Transmission

Gearstar Transmission 4L80E LT Level 4 Can Handle 800HP 750lb/ft tq Stall Range 2800-3400 GS4L80ELTL4

$14,163.96 $16,209.32
Gearstar Transmission 4L80E LT Level 4 Can Handle 800HP 750lb/ft tq Stall Range 2800-3400 GS4L80ELTL4

Gearstar Transmission

Gearstar Transmission 4L80E LT Level 4 Can Handle 800HP 750lb/ft tq Stall Range 2800-3400 GS4L80ELTL4

$14,163.96 $16,209.32
Description

Gearstar 4L80E LT Level 4 Transmission 800HP/750lb-ft

SKU: GSTGS4L80ELTL4

Chevrolet Supermatic 4L80E. This is a four-speed automatic transmission. If an automatic valve body is used, then a standalone transmission controller is required to control the transmission.

Transmission Overview

Model: 4L80E Level 4 (LT pilot for Chevy Big Block / Small Block)
Power Rating: Up to 800 HP (crankshaft)
Torque Rating: Up to 750 ft-lbs (crankshaft)

Torque Converter

Custom-built 10” Lock-Up Billet Yank Performance converter
Custom stall speed: 2800–3400 RPM

Internal Clutches & Frictions

Master overhaul kit with hardened steels
Raybestos Stage I frictions
Expanded capacity forward clutch drum
Extra capacity second gear clutch assembly
Expanded the capacity of the third clutch drum
Updated molded steel direct clutch piston

Geartrain & Hard Parts

300M input shaft
300M main shaft
300M forward clutch hub
Heavy-duty intermediate sprag
New low roller assembly

Bands & Apply Components

Updated reverse band
Wide kickdown band with a new apply piston

Valve Body & Hydraulic Upgrades

TransGo reprogramming kit with valve body recalibration & shift command
Updated boost valve
Updated TCC regulator valve
Blueprinted pump & valve body

Electronics & Sensors

New internal wiring harness
New manifold pressure switch
New EPC solenoid
New PWM solenoid
New input & output speed sensors
New 1–2 shift solenoid
New 3–4 shift solenoid

Bearings, Bushings & Wear Components

New Torrington bearing kit
New bushing kit
New thrust washer kit

General Service & Supporting Components

Filter
Transmission mount
New OEM steel pan

Gear Ratios 1st 2nd 3rd 4th
GM 4L80E/ 4L85E 2.480 1.480 1.000

0.750



2WD Dimensions
Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft
Total Length: 31″
Distance to trans mount center: 30 1/2″
Fitment
