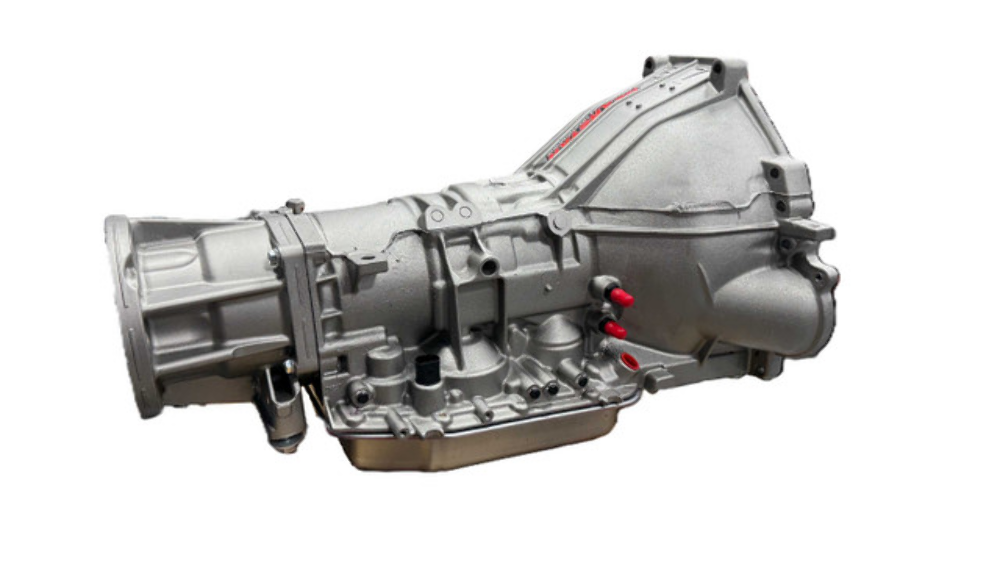

Gearstar 4R70W 4x4 Level 4 Transmission 600HP, 500 lb-ft, 2600–4500 Stall
SKU: GSTGS4R7024X4L4
4R70W Level 4 is designed for Ford Small Block engines using a 2-bolt starter & 4x4 applications with a factory transfer case. **It will not fit the early Bronco Dana 20 transfer case. This will require the use of a standalone transmission controller unless this is going into a factory application. Our 4R70Ws are designed to work with 1998-2003 wiring for standalone transmission controllers.
Transmission Overview
4R70W Level 4
Performance Specifications
600 HP capacity
500 ft-lbs torque
Torque Converter & Stall
Custom-built & custom-stalled converter
10" multi-disk lock-up or
13" billet Yank Performance Converter
Stall Speed: 1800–2,600 RPM
Clutches, Bands & Frictions
Raybestos Stage 1 Racing Frictions
High Capacity 4 Plate Intermediate Clutch
Direct Clutch Pack (8 frictions)
New Reverse Band
Carbon Fiber Wide O.D. Band
Shafts & Hard Parts
300M Hardened Intermediate Shaft
Heat-treated & stress-relieved input shaft
Wide Reverse Drum with Mechanical Diode
Updated Sun Shell with Gear
New Low Spring and Roller
Valve Body & Hydraulic Upgrades
High Performance Valve Body Reprogramming Kit
High-Capacity Pump Assembly with New Gears
Updated O.D. Servo Pin and Piston
Updated 3rd Accumulator Piston
Internal Components & Rebuild Parts
Master Overhaul Kit with Hardened Steels
Complete Torrington Bearing Kit
New Bushing Kit
High Flow Filter
Electronics
New electronics package including:
Updated EPC
Shift Solenoids
Lock-Up Solenoid
Internal Wiring Harness
Output Sensors
External Components & Extras
Custom 360° Adjustable Shift Linkage Arm
Transmission Mount
New OE Pan
| Gear Ratios |
1st |
2nd |
3rd |
4th |
| Ford 4R70W |
2.840 |
1.550 |
1.000 |
0.700 |
| Dimensions |
| Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft |
| Total Length: 32 1/2″ |
| Distance to trans mount center: 23 1/2″ |
