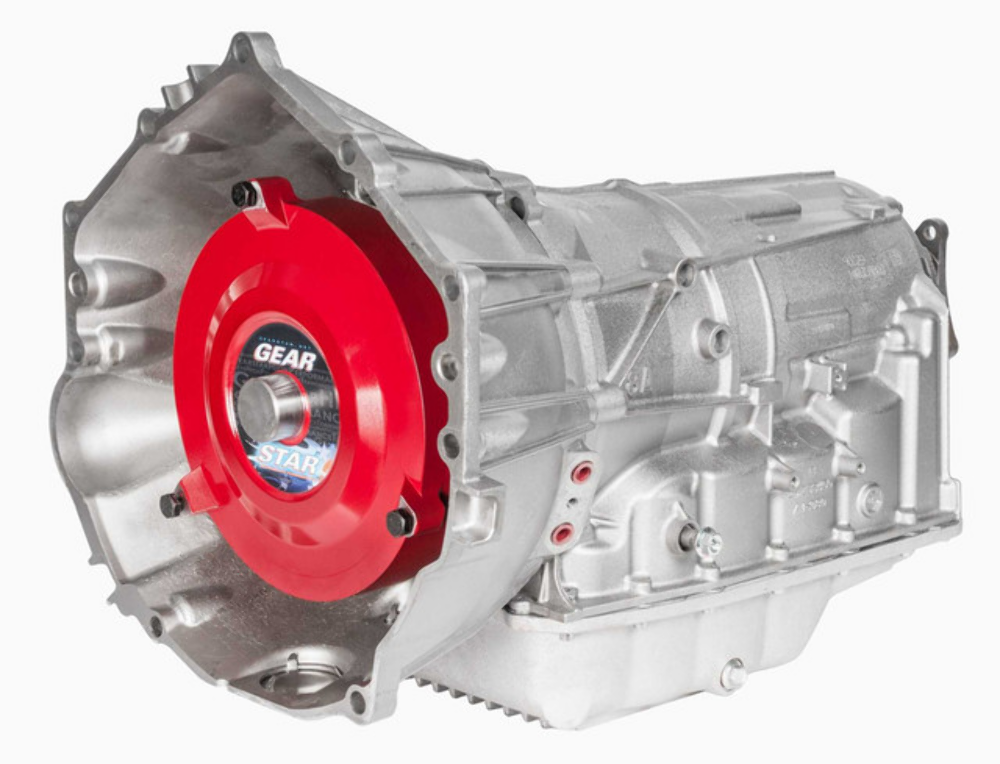

GM 6L80E 6-speed automatic transmission. Designed for LS/LT engines. This transmission will be programmed before it ships out. If this is going into a factory application, the VIN number will be needed. If this is going into a swap application, a standalone transmission controller will be required.
6L80E Level 4
Rated up to: 650 HP at the crankshaft
Rated up to: 600 ft-lbs of torque at the crankshaft
Custom-built 12" lock-up billet Yank Performance torque converter
Custom stalled: 1600–2200 RPM
Billet single disc converter
Master overhaul kit (gaskets, seals, rings, pistons)
New wide inlet filter
New bearing kit
New bushing kit
Expanded capacity 3-5 reverse clutch pack (latest gen frictions & steels)
Expanded capacity 1-2-3-4 clutch pack
Expanded capacity 4-5-6 clutch pack
Low/reverse clutch pack (latest generation materials)
2-6 clutch pack (latest generation materials)
Updated AC Delco pump cover (stator support)
New AC Delco pump body (bell housing)
New pump vanes with hardened rings
Billet pump rotor
Billet 4-5-6 clutch hub
Hardened and reinforced clutch hubs
Hardened rear planetary assembly
Upgraded line boost valve and slide spring
Performance-tuned valve body
New AC Delco transmission control module (TCM)
New solenoid body
| Gear Ratios | 1st | 2nd | 3rd | 4th | 5th | 6th |
| GM 6L80E/6L90E | 4.027 | 2.364 | 1.532 | 1.152 | 0.852 | 0.667 |
|
Dimensions |
|
Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft |
|
4×4 overall length 27 inches |
|
4×4 distance to the transmission mount 27 inches |
