Gearstar 6L90E 4x4 Level 3 Transmission 600HP/550lb-ft Stall 1800–3000

SKU: GSTGS6L904X4L3

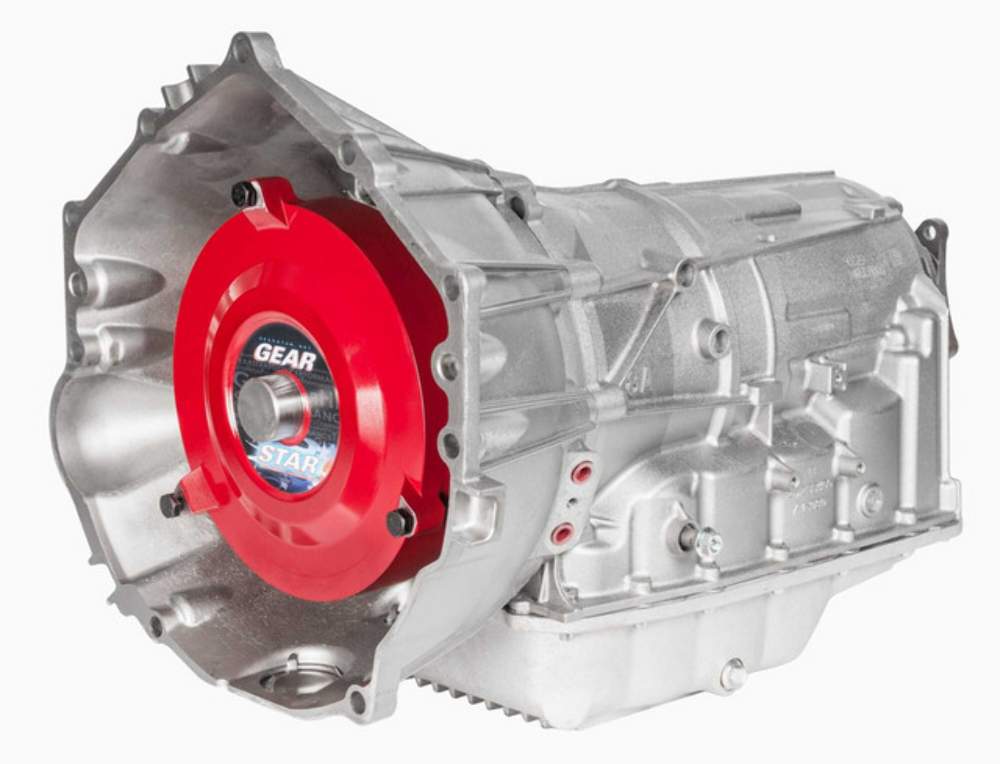

Check this 6L90E 6-speed GM automatic transmission. Designed for LS/LT engines. This transmission will be programmed before it ships out. If this is going into a factory application, the VIN number will be needed. If this is going into a swap application, a standalone transmission controller will be required.

Transmission Overview

6L90E Level 3

Performance Ratings

Rated up to: 600 HP at the crankshaft
Rated up to: 550 lb-ft of torque at the crankshaft

Torque Converter

Custom-built & custom-stalled 12" lock-up billet Yank Performance Torque Converter
Stall Speed: 1600–2200 RPM
Billet single disk converter

Clutch Packs & Internal Capacity Upgrades

Expanded Capacity 3-5 Reverse Clutch Pack (latest generation friction & steels)
Expanded Capacity 1-2-3-4 Clutch Pack (latest generation friction & steels)
Expanded Capacity 4-5-6 Clutch Pack (latest generation friction & steels)
Low / Reverse Clutch Pack (latest generation friction & steels)
2-6 Clutch Pack (latest generation friction & steels)

Rebuild & Overhaul Components

Master Overhaul Kit (new gaskets, seals, rings, and pistons)
New Bearing Kit
New Bushing Kit
New Wide Inlet Filter

Pump & Hydraulic System Upgrades

Updated AC Delco Pump Cover (Stator Support)
New Pump Vanes with Hardened Rings
Hardened Pump Rotor

Hard Parts & Reinforcements

Hardened and Reinforced Clutch Hubs

Valve Body & Control System

Upgraded Line Boost Valve and Slide Spring
Performance-tuned Valve Body
New AC Delco Transmission Control Module
New Solenoid Body



Gear Ratios 1st 2nd 3rd 4th 5th 6th
GM 6L80E/6L90E 4.027 2.364 1.532 1.152 0.852 0.667



Dimensions

 Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft

4×4 overall length 27 inches

4×4 distance to the transmission mount 27 inches
