Description

Gearstar Transmission 6R80 Level 3 Can Handle 650HP 600lb/ft tq Stall Range 1800-3000

PN. GS6R80L3

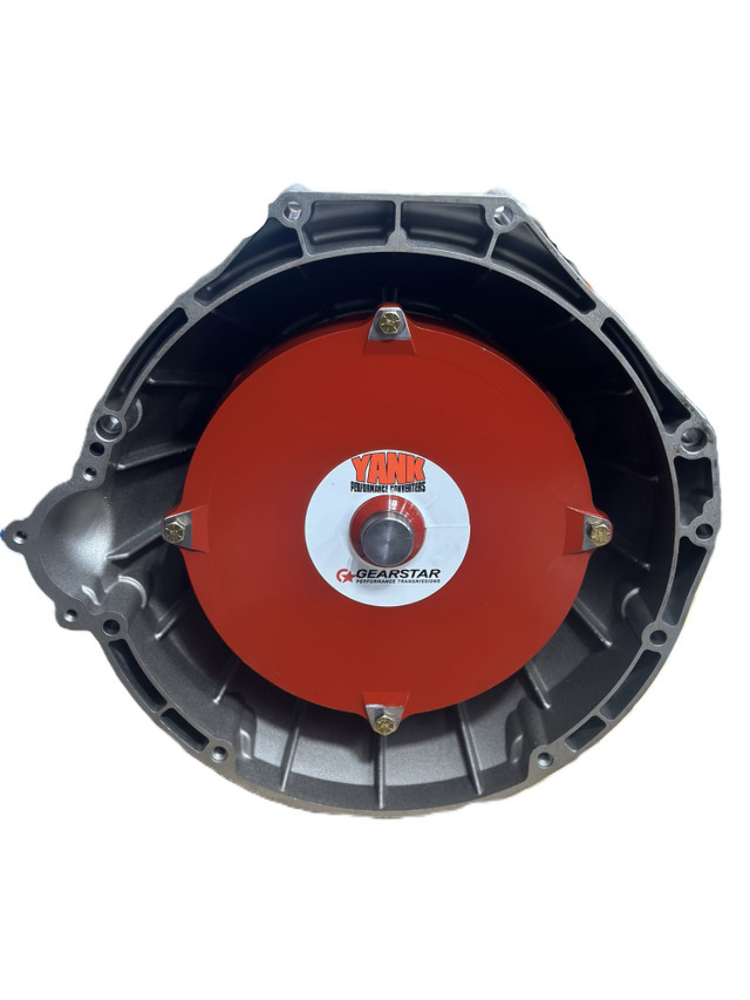

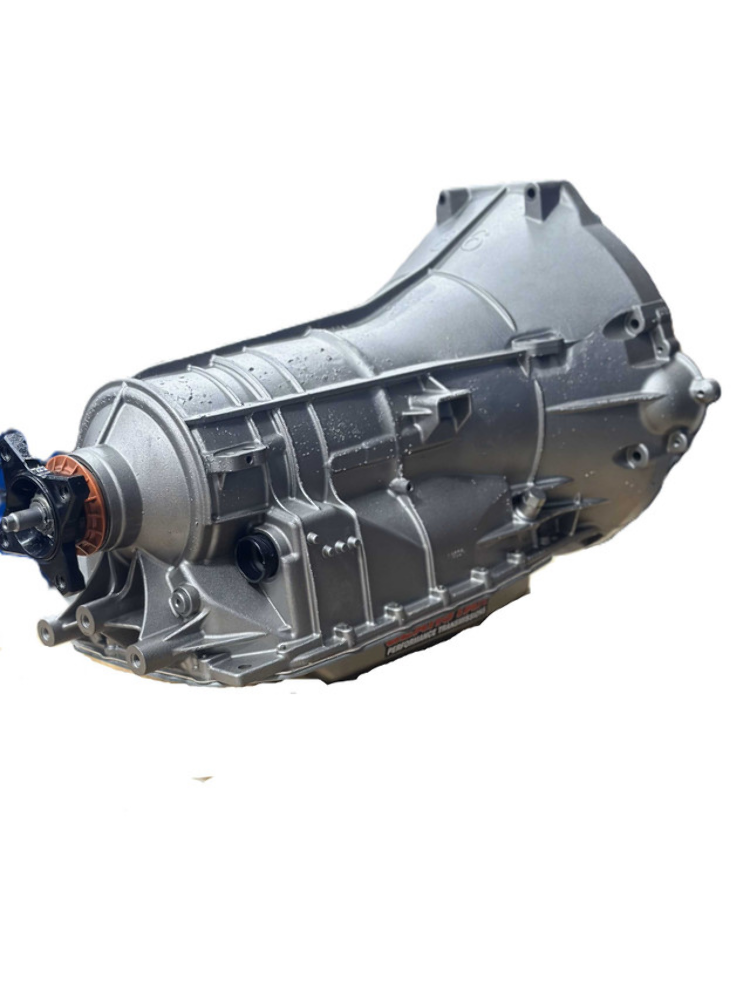

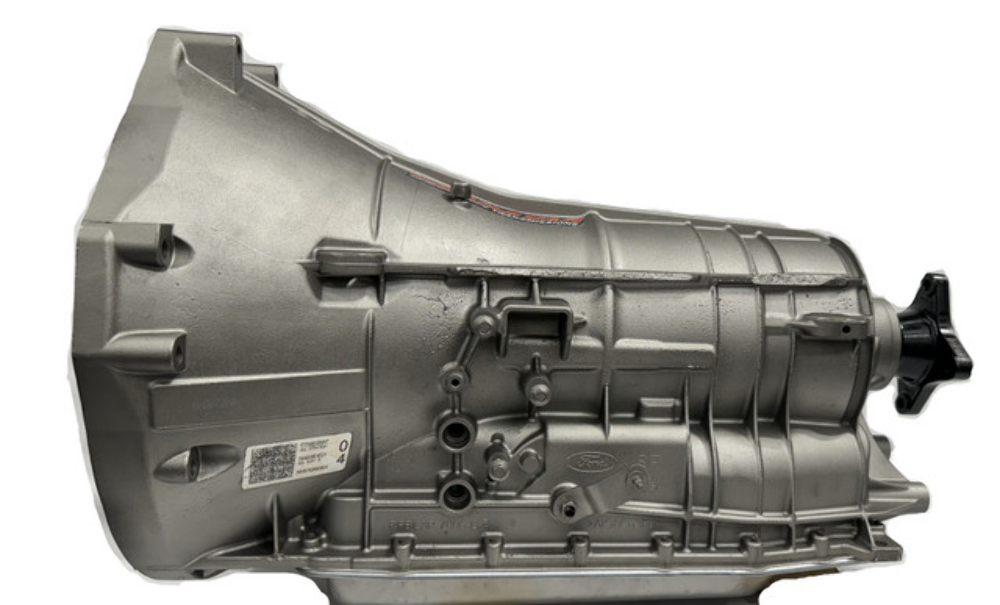

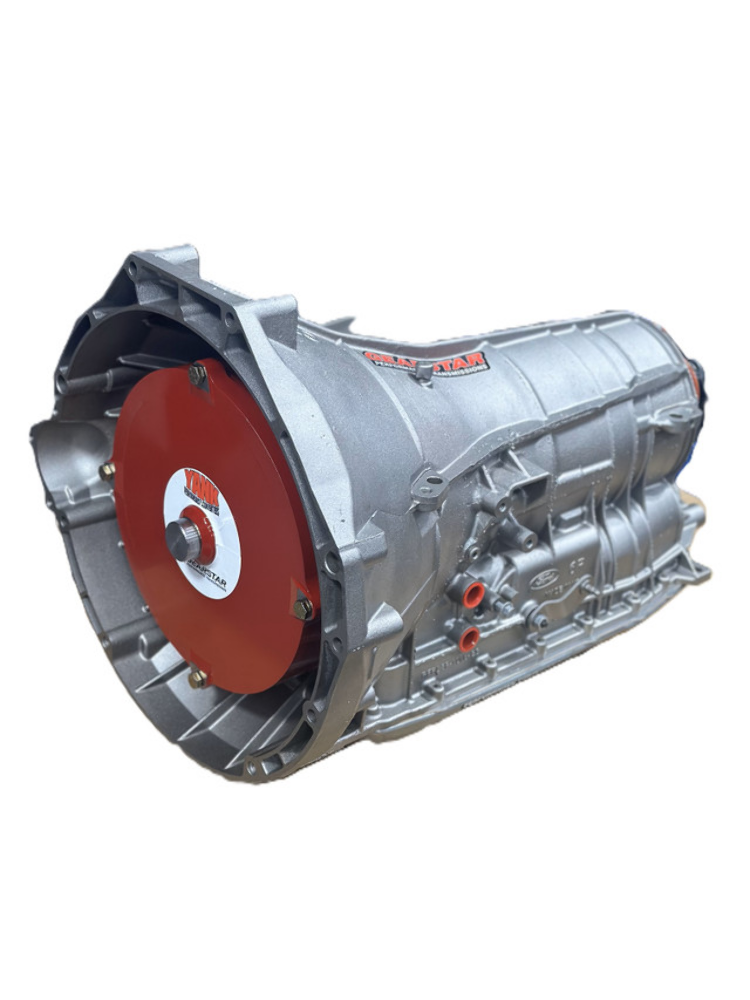

Ford 6R80 Level 3 designed for Ford Modular engines using a 3-bolt style starter & 2wd applications. This is a Ford 6 speed automatic transmission and custom billet Yank Performance Torque Converter package. This is a computer-controlled transmission and will require a standalone transmission controller unless it is going into a factory application.

Ford 6R80 Level 4 2wd

Rated up to: 650HP at the crankshaft

Rated up to: 600Ft-lbs of torque at the crankshaft

Converter: Custom built & custom stalled " multi disk lockup or 13" billet Yank Performance Converter

Stall: 1800-2600

Features a firm shift

Raybestos performance clutches

New pump

New valve body

Upgraded transmission cooler bypass

High performance valve body recalibration kit

Gear Ratios 1st 2nd 3rd 4th 5th 6th
6R80 4.17 2.34 1.57 1.14 0.87 0.69



Dimensions
Measurements are taken from mounting surface where trans meets engine block to the tip of the tailshaft
Total Length: 26 5/8″ ~ Short Tail
Distance to trans mount center: 21 3/8″
Fitment
