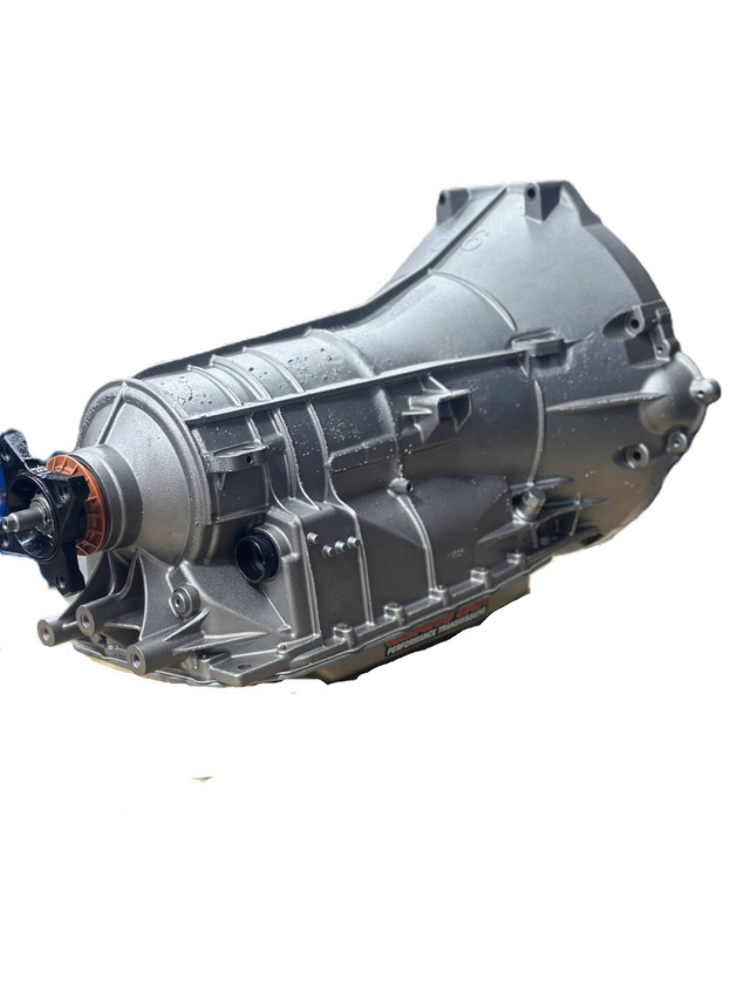

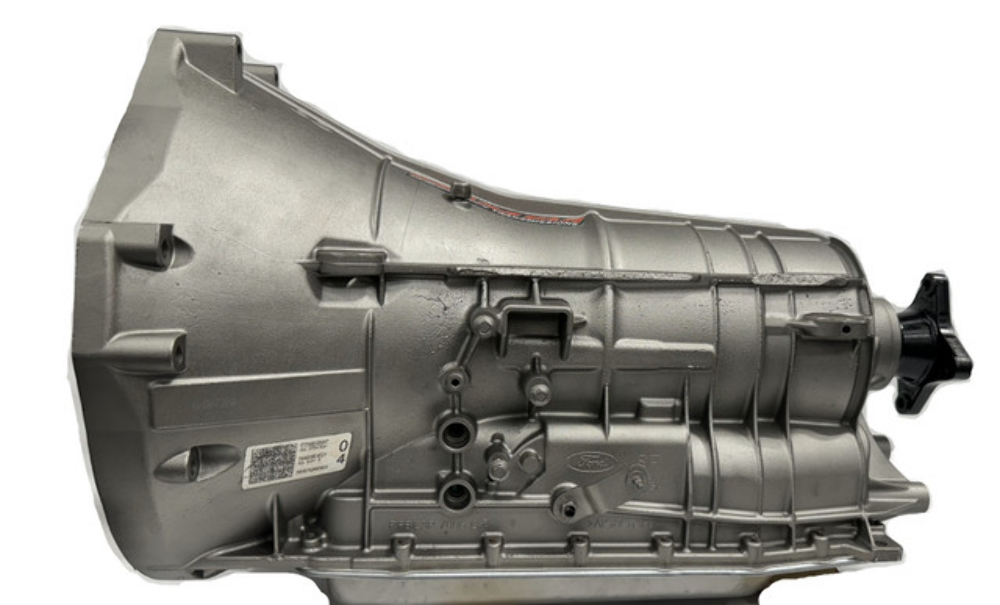

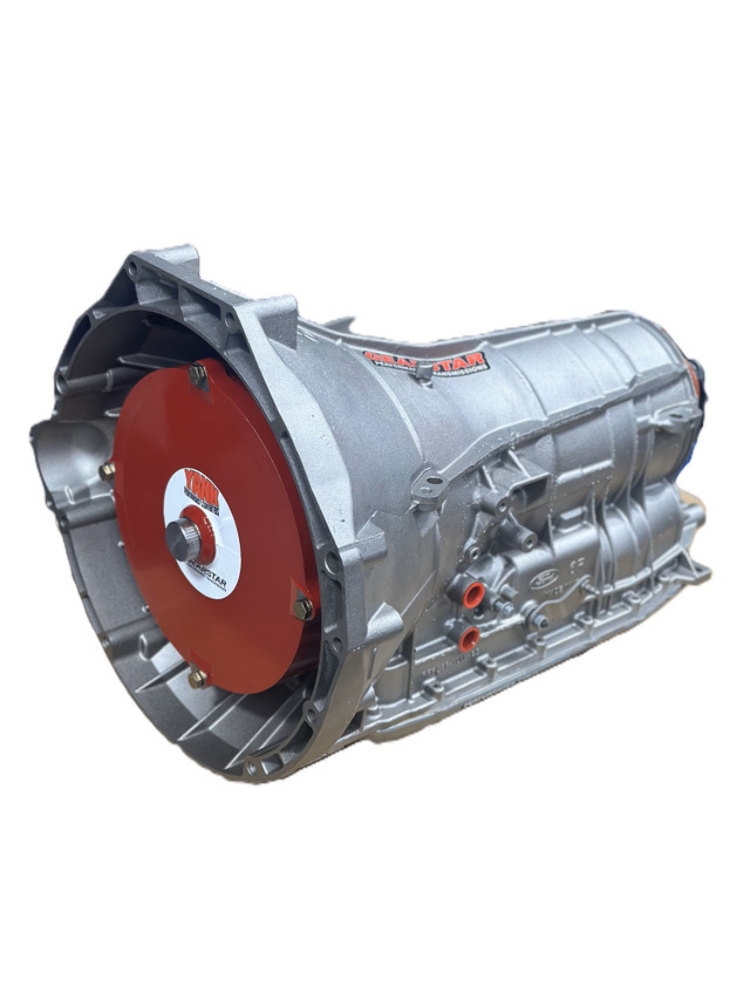

Ford 6R80 Level 4 is designed for Ford Modular engines using a 3-bolt style starter & 2WD applications. This is a Ford 6-speed automatic transmission and a custom billet Yank Performance Torque Converter package. This is a computer-controlled transmission and will require a standalone transmission controller unless it is going into a factory application.
Ford 6R80 Level 4 (2WD)
Rated up to 750 HP at the crankshaft
Rated up to 700 ft-lbs of torque at the crankshaft
Custom-built, custom-stalled converter
Options:
Multi-disk lockup

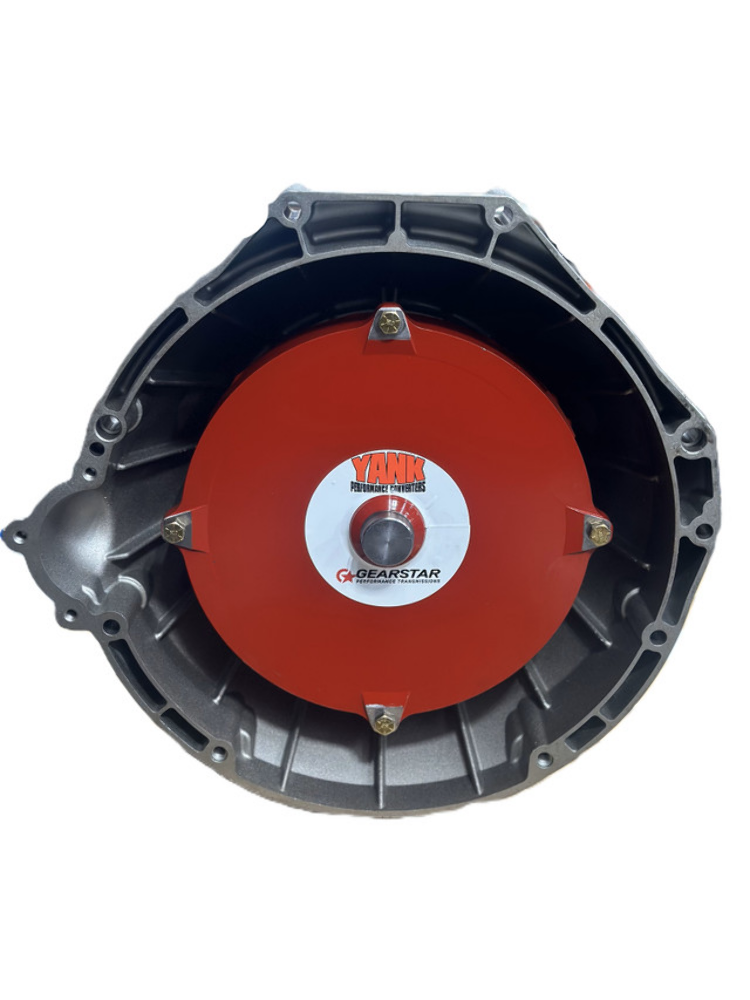

13" billet Yank Performance converter
Stall range: 1800–2600 RPM
Firm to hard shifts for high-horsepower applications
Raybestos performance clutches
New pump
New valve body
High-performance valve body recalibration kit
Upgraded transmission cooler bypass
Billet planetary upgrade
Billet drum
Billet intermediate shaft
Heavy-duty overdrive “E” piston
| Gear Ratios | 1st | 2nd | 3rd | 4th | 5th | 6th |
| 6R80 | 4.17 | 2.34 | 1.57 | 1.14 | 0.87 | 0.69 |
| Dimensions |
| Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft |
| Total Length: 26 5/8″ ~ Short Tail |
| Distance to trans mount center: 21 3/8″ |
