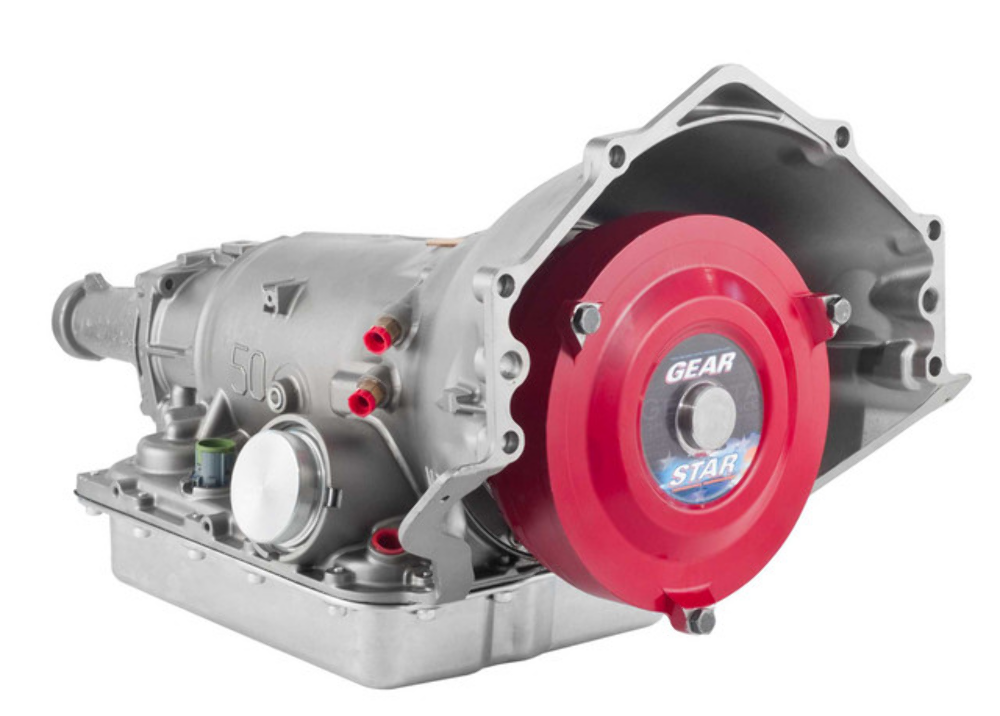

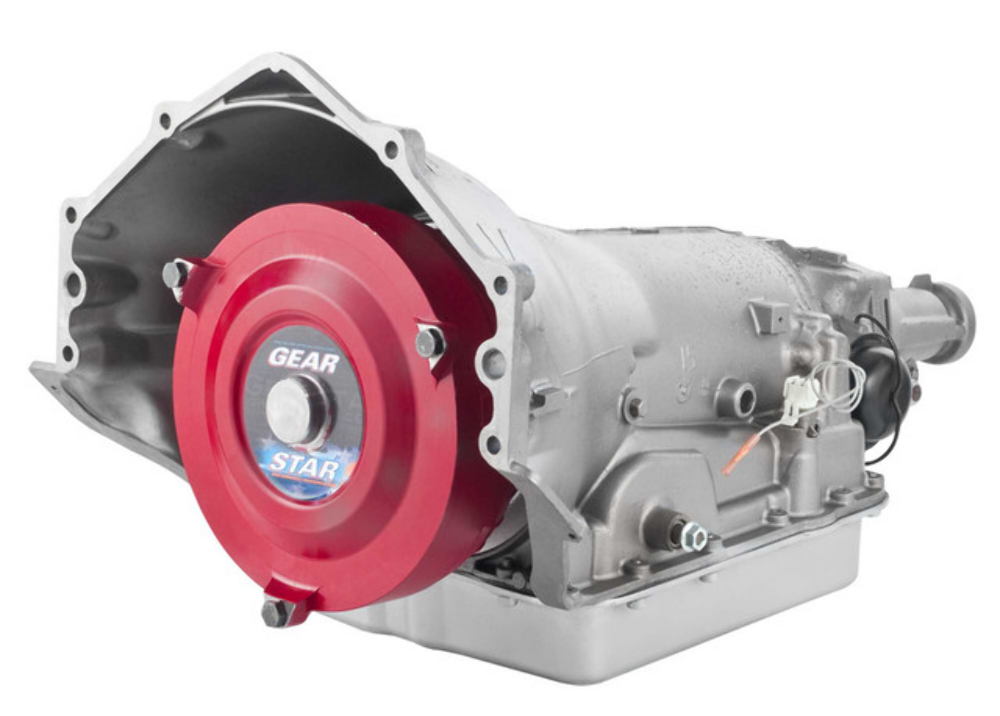

The Chevrolet 700R4 is designed to attach to Big Block / Small Block Chevrolet engines or LT engines. The 700R4 is a non-computer-controlled transmission. This will require the use of TV cable. Depending on your carburetor, you may need a TV cable corrector kit.
700R4 Level 3
Rated up to: 500 HP at the crankshaft
Rated up to: 500 Ft-Lbs. of torque at the crankshaft
Converter: Custom Built & Custom Stalled 9", or 10" Lock-Up Billet Yank Performance Converter
Stall: 2600–3600
Master Overhaul Kit with New Steels
Raybestos High Energy Frictions
Wide Carbon Fiber 2–4 Band
Transgo Recalibration Shift Kit with Shift Command
New Valve Body Separator Plate
Corvette Servo
Updated Pressure Regulator Valve
.500 Boost Valve
Reinforced Input Drum
Extra Capacity 3–4 Clutch Drum Assembly
Heavy Duty Hardened Sun Shell
Four Pinion Heavy Duty Steel Planetary Gear Set
New 29-Element Dual Cage Sprag
New Low-Reverse Sprag & Roller
New Torrington Bearings
New Bushing Kit
New Thrust Washer Kit
High-Capacity 10-Vane Pump Assembly
New Vanes and Hardened Rings
New Rotor and Slide
High Rev Spring Kit
New Original Equipment Steel Transmission Pan
Original Equipment Style Filter
New Transmission Mount
Universal Torque Converter Cover
Dipstick and Tube
New Speedometer Drive Gear
New Speedometer Driven Gear
Vacuum Lock-Up System
New TV Cable
| Gear Ratios | 1st | 2nd | 3rd | 4th |
| GM 700R4 | 3.060 | 1.620 | 1.000 | 0.700 |
| Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft |
| Total Length: 32″ |
| Distance to trans mount center: 24 1/4″ |
