Description

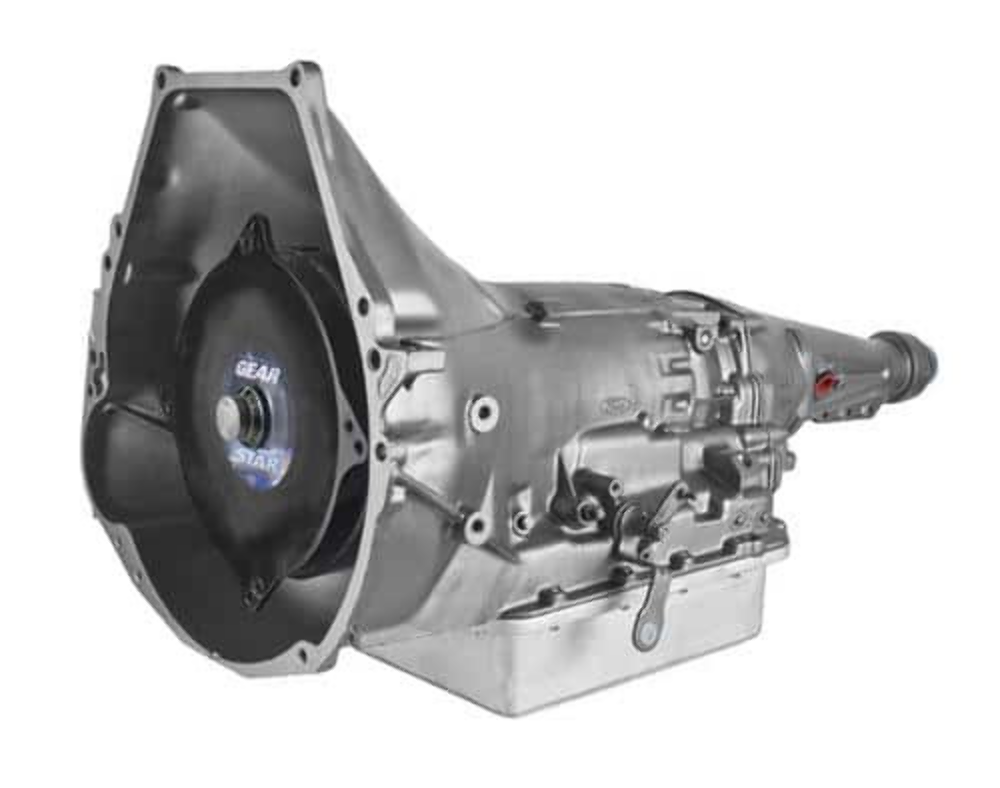

Gearstar Transmission C6 Level 4 Can Handle 700HP 700lb/ft tq Stall Range 1800-3000

PN. GSC6L4

Ford 3 speed automatic transmission. Designed for Small Block Ford, Big Block Ford engines.

C6 Level 4
Rated up to: 700 Hp at the crankshaft
Rated up to: 700 Ft-lbs. of torque at the crankshaft
Converter: Custom built & custom stalled 10" billet Yank Performance Converter
Stall: 2600-3600
Master Overhaul kit and new steels
Raybestos Stage 1 Racing Frictions
Heavy Duty Carbon Fiber Band
Transgo Reprogramming shift kit with shift command
Filter
Modulator
High-capacity pump assembly
High-capacity 3rd gear drum
300M hardened input shaft
Heavy duty forward drum
Hardened drive shell
Billet intermediate servo
New thrust washers
New Bushings
Heavy duty planetary gear set
Borg Warner low one-way roller clutch assembly
High rev governor assembly
Deep Aluminum pan
Transmission mount

Gear Ratios 1st 2nd 3rd
Ford C4/C6 2.460 1.460 1.100



C6 (bellhousing pattern - FE Big Block, Big Block, Small Block)
Style Bellhousing to Output shaft Bellhousing to start of tail housing Bellhousing to Center of Transmission mount Width of mount Width of bellhousing
FE Big Block 33 ½ 22 3/8 20 5 ½ —
Big Block 33 ½ 22 3/8 20 5 ½ —
Small Block 33 ½ 22 3/8 20 5 ½ —
Fitment
