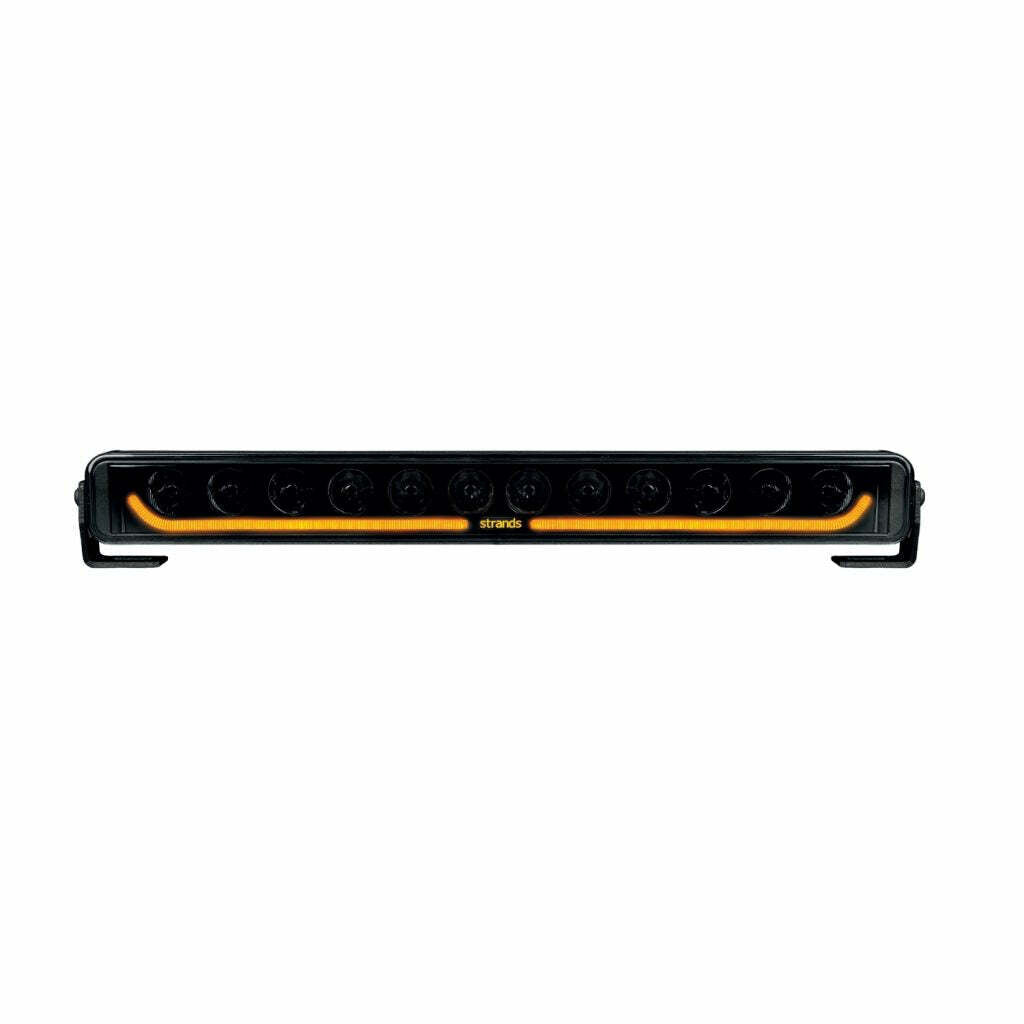

BrightSource 20 inch Dark Knight Identity E-Marked Single Row

809165

The Dark Knight Identity gets its roots from the super popular Dark Knight Series lights. The added benefit with this stunning design is this - it is an E-approved LED bar, making it street legal in Canada, (except AB, SK, MB) properly mounted, of course. \n \nThe Identity light bar is designed with advanced TIR optics, presenting both a wide and long beam pattern - reaching over 500 meters. The TIR technology improves overall efficiency, harnessing and directing light output in perfect balance, exactly where you need it. Excellent for varied driving no matter what type of road you are on. \n \nThe black, futuristic look of the Dark Knight Series expresses confidence and a certain swagger. Make your truck stand out on the road with the Dark Knight Identity LED light bar. \n \nSpecifications: \n

\n
• Type of lamp: LED
\n
• Type of LED: LP
\n
• PCS LED ´s Main beam: 12
\n
• Position light: 5
\n
• Voltage (V DC): 9-36V DC
\n
• Theoretical effect (w): 12V 120
\n
• Theoretical effect (w): 24V 120
\n
• Consumption (w) 12V: Main beam: 98 Position light: 2
\n
• Consumption (w) 24V: Main beam: 91 Position light: 2
\n
• Consumption specific function (w): 12V Main beam: 98 Position light: 2
\n
• Consumption specific function (w): 24V Main beam: 91 Position light: 2
\n
• Theoretical lumen: 12000
\n
• Actual lumen: 9800
\n
• 1 LUX @ m: 458
\n
• Kelvin: 6000
\n
• IP-class: 68/69K
\n
• Colour housing: Black
\n
• Colour lens: Clear
\n
• Colour LED ´s: White and Amber
\n
• Beam pattern: Combo
\n
• Position light: YES (White and Amber)
\n
• Connection: DT4
\n
• Cable length (mm): 500
\n
• Material bracket Side bracket: Stainless steel (SUS 304)
\n
• Bottom bracket: Aluminum (AL6063)
\n
• Material housing/chassis: Aluminum
\n
• Material lens: Polycarbonate
\n
• Length (mm): 520
\n
• Depth (mm): 55.5
\n
• Height (mm): 58
\n
• Height including bracket (mm): 75
\n
• Operating temperature: -40 - +60 °C
\n
• ADR-approved: No
\n
• E-approved: Yes
\n
• According to regulation: ECE R112 R7 Reference number 50 EMC ECE R10
\n
