BrightSource Siberia Curved 32 inch Single Row

809193

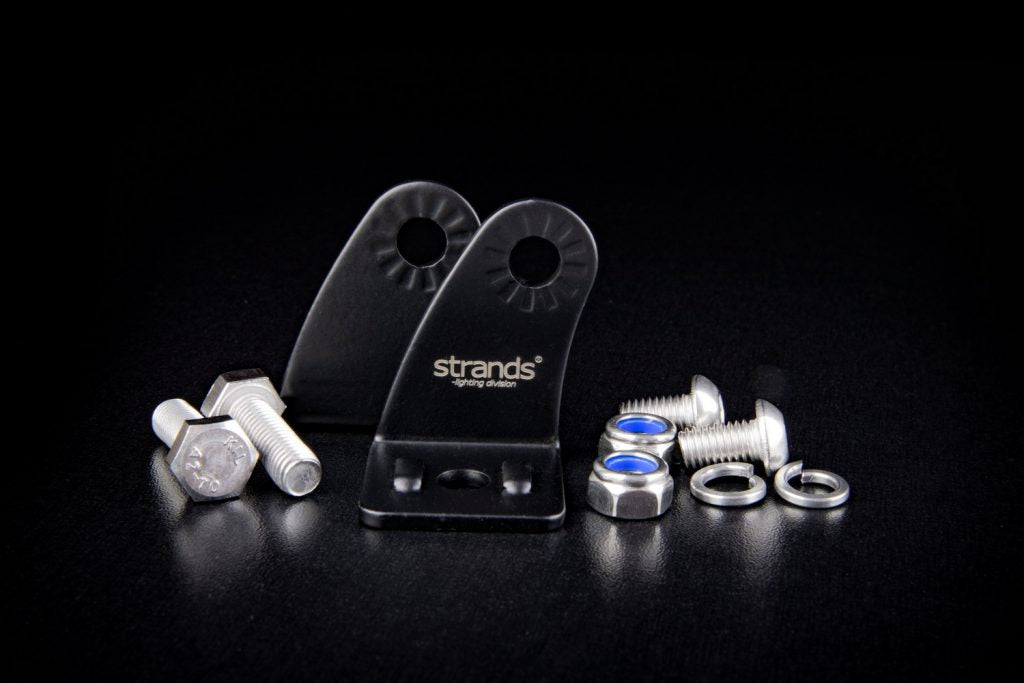

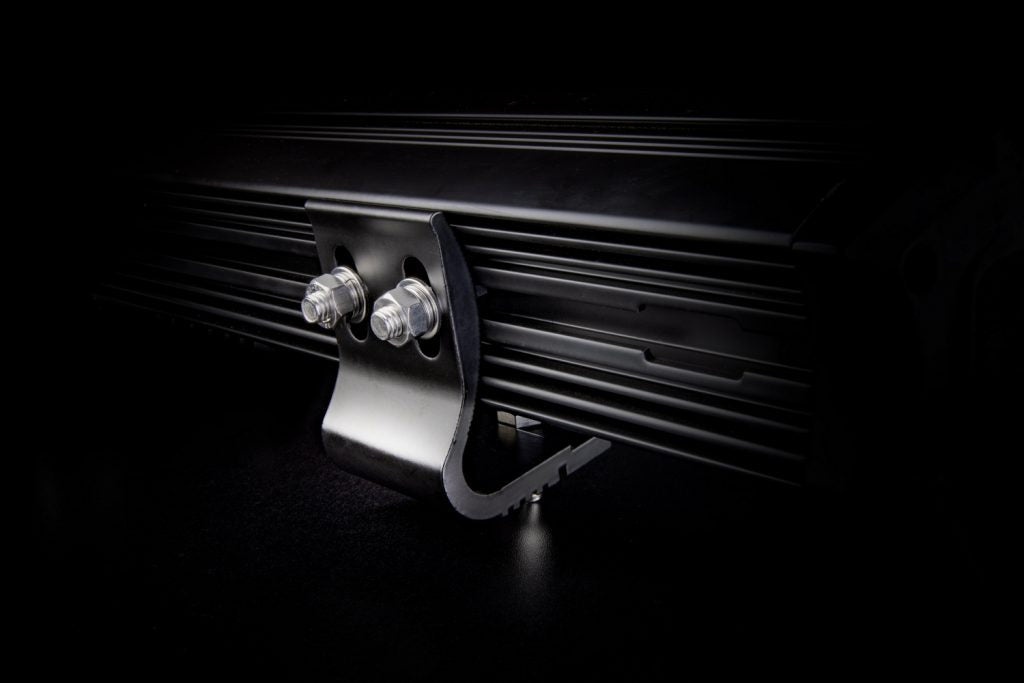

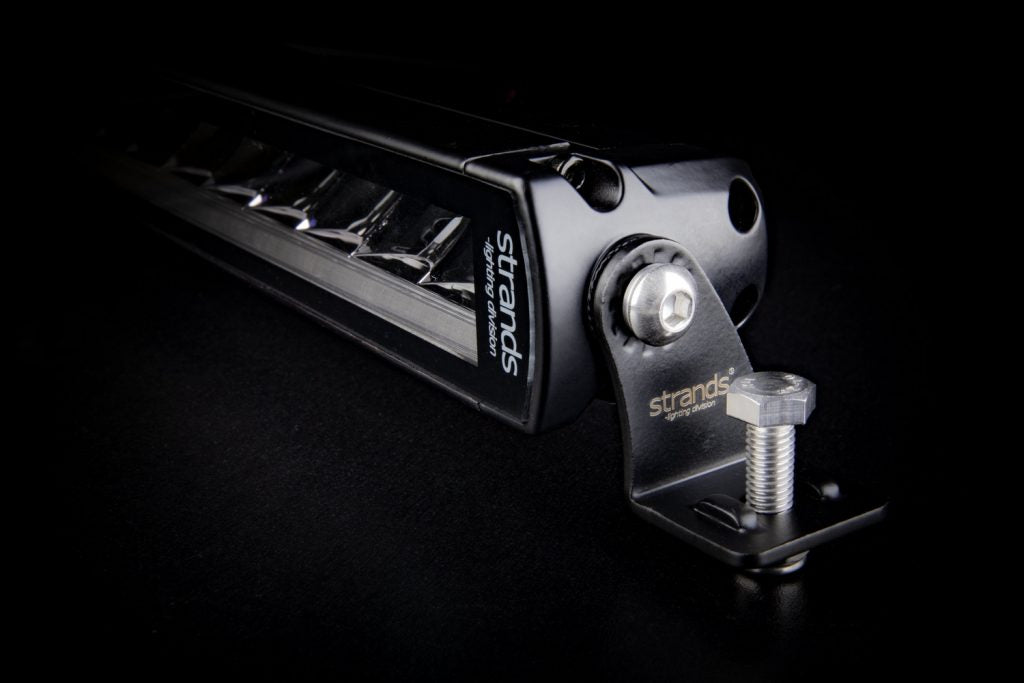

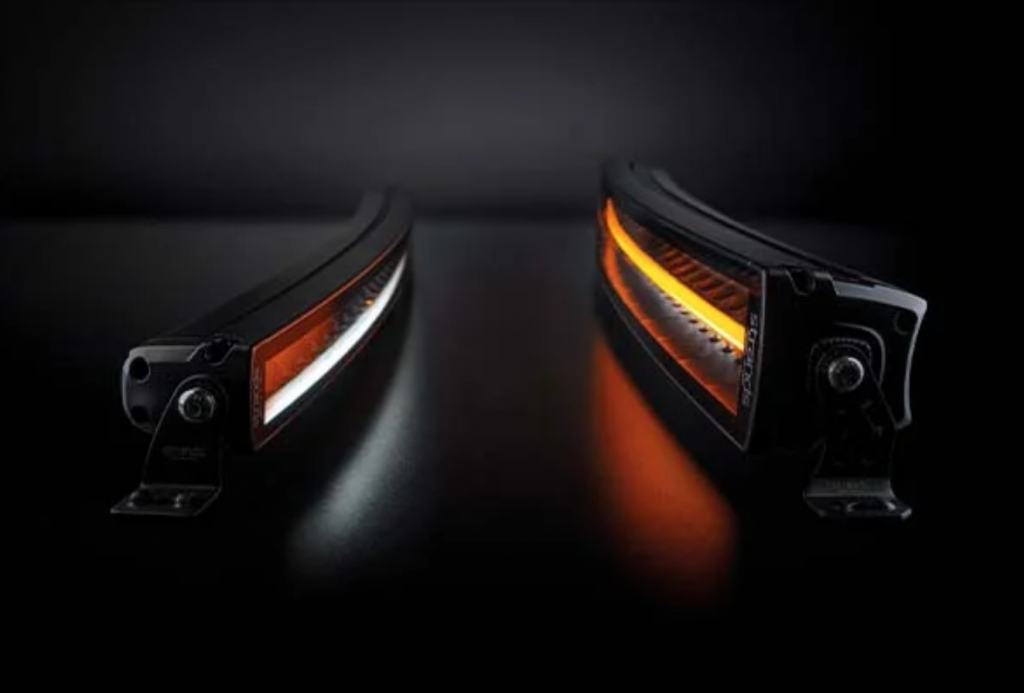

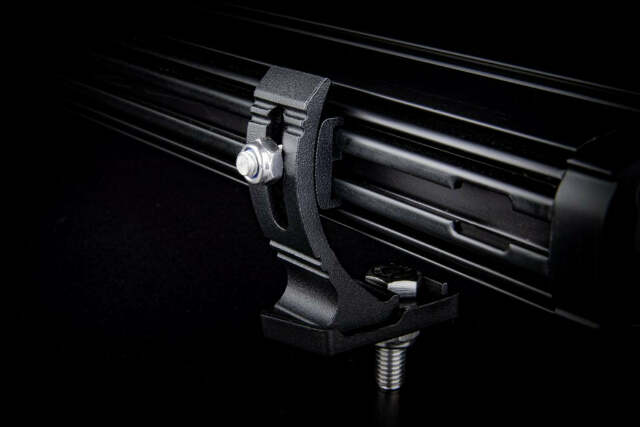

Welcome to the Siberia Series Curved, single row LED light bars. These combination LED bars are truly innovative, combining 2 separate lighting functions with cutting edge design. The curved shape of the bar is appealing from all angles, lending an elegant look to your vehicle, even in daylight. \n \nThe combo driving light pattern provides exceptional range, regardless of bar length. The combination pattern delivers both long range and side-of-the-road illumination, allowing you to see objects sooner, improving road/trail safety. The second feature is a dual colour position light, which illuminates with your choice of output - a cool white or rich amber colour. This feature gives you the option of linking to daytime running lights, flashers or other functions and customizes the appearance of your vehicle. \n \nIncluded in the package are side mount and base mount brackets for ease of installation. This LED light bar has a DT 4 connector. Consider adding a harness adapter (PN 270438) to connect with a BrightSource wiring harness (PN 72999) - both sold separately. The BrightSource harness is a plug and play solution with a 15A relay and switch to light up a single light through a 2 pin DT connector, which plugs into the female end of the harness adapter. The harness adapter has a white and yellow wire to power the white and amber position function, wherever you choose to source that power. \n \nSiberia is also available in double-row curved models - perfect for trucks and other larger vehicles. \n \nSpecifications: \n

\n
• Type of lamp LED
\n
• Voltage (V DC) 10-40V DC
\n
• Consumption (w) 12V High beam: 144.7 \nWhite position light: 7.5 \nAmber position light: 21
\n
• Consumption (w) 24V High beam: 144.3 \nWhite position light: 7.5 \nAmber position light: 21
\n
• Theoretical lumen 12000
\n
• Actual lumen 8039
\n
• 1 LUX @ m 520
\n
• IP-class IP67/69K
\n
• Colour housing Black
\n
• Colour lens Clear
\n
• Colour LED ´s White
\n
• Beam pattern Combo
\n
• Position light Yes. white and amber
\n

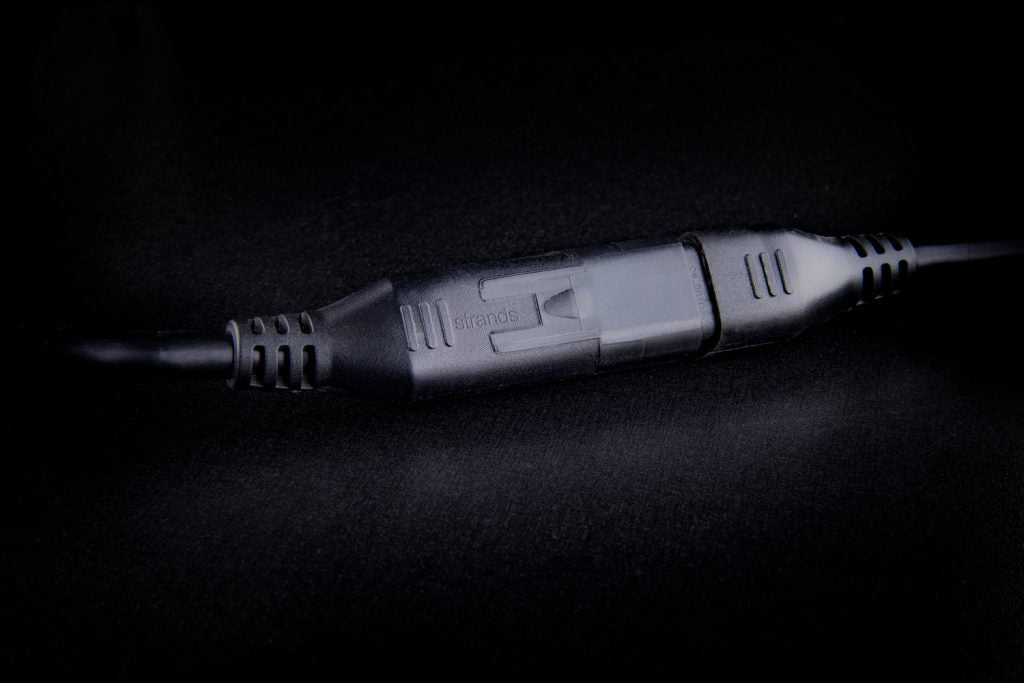

• Connection DT-4
\n
• Cable length (mm) 500
\n
• Material bracket Stainless steel
\n
• Material housing/chassis Aluminium
\n
• Material lens Polycarbonate
\n
• Length (mm) 815.71
\n
• Depth (mm) 55.5
\n
• Height (mm) 45
\n
• Height including bracket (mm) 65
\n
• Operating temperature -20 °C - +45 °C
\n
• ADR-approved No
\n
• E-approved No
\n
• According to regulation ECE R112. R7
\n
• Reference number 37.5
\n
• EMC ECE R10
\n
• 3 Year Function Warranty
