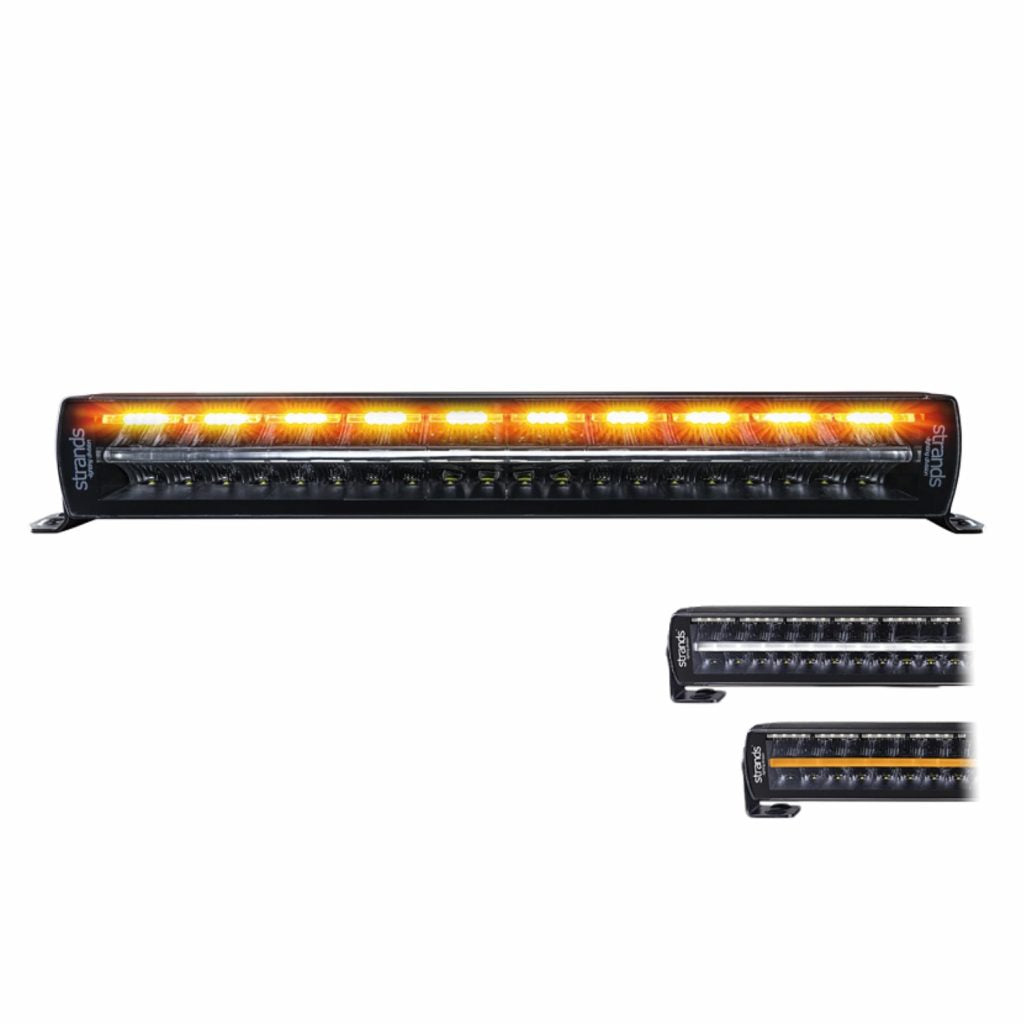

BrightSource Siberia Night Guard 22 inch Double Row with Warning Strobe
809217
Reinventing innovation. Siberia Night Guard is developed for hard work challenges.
\n
\nhttps://youtu.be/-eSEgSeQ9RY
\n
Description
\n
\n
\nSiberia Night Guard is a multi-functional 3 in 1 LED lamp with an extremely powerful warning light that also provides an unbeatable high beam as well as position light.
\n
Features
\nHigh beam: Bright high beam with E-approval.
\n
\nDual position light: The characteristic Siberia position light is located in the centre part of the Light Bar and can be set in amber or white light colour as desired.
\n
\nWarning light: The LEDs in yellow colour, positioned in the upper part of the Light Bar, serve as a powerful warning light.
\n
\n
\n
809217 Specifications
\n
\n -
Type of lamp: LED
\n -
Voltage: 9-35V DC
\n -
Wattage: 92W
\n -
Theoretical lumen: 16000lm
\n -
Actual lumen: 5911lm
\n -
1 LUX @: 432m
\n -
IP-class: IP67/69K
\n -
Colour housing: Black
\n -
Colour lens: Clear
\n -
Beam pattern: Combo
\n -
Position light: White & Amber
\n -
Connection: Pigtail (No connector)
\n -
Cable length: 2500 mm
\n -
Material bracket: Stainless steel
\n -
Material housing/chassis: Aluminium
\n -
Material lens: Polycarbonate
\n -
Length: 562 mm
\n -
Depth: 71.6 mm
\n -
Height: 76 mm
\n -
Height including bracket: 89 mm
\n -
Operating temperature :-20 °C - +45 °C
\n -
E-approved: ECE R112, R7, R65
\n -
EMC: ECE R10
\n - 3 Year Function Warranty
\n
\n
**Hardwire installation required**
\nBlack wire: Ground
\nRed wire: Main Beam
\nYellow wire: Amber Position light
\nGrey wire: White Position light
\nGreen wire: Amber Strobe
