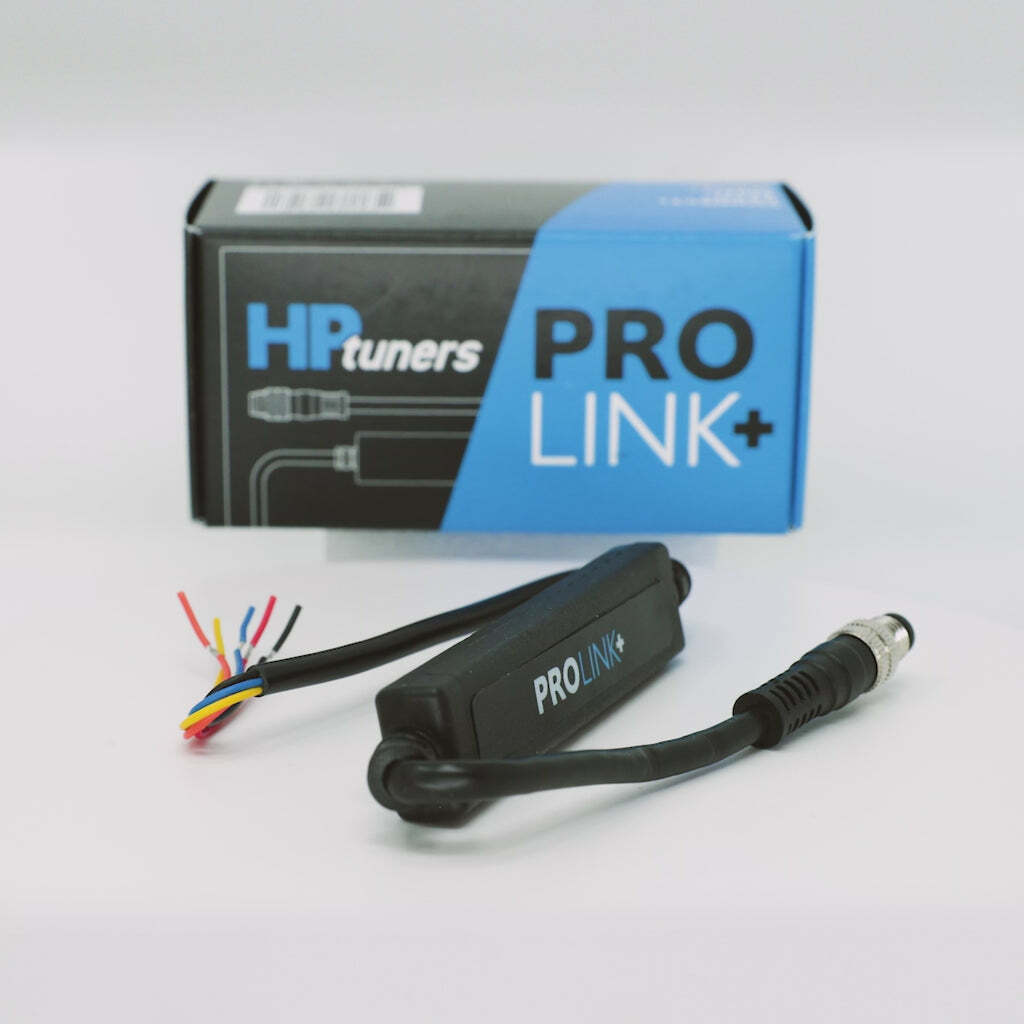

HP Tuners Pro Link+ for MPVI3

H021-002-06

Get access to even more vehicle data using PROLINK+ to wire in up to 2x analog signals and 1x CAN bus signal. Compatible with MPVI2+ and MPVI3 interfaces.

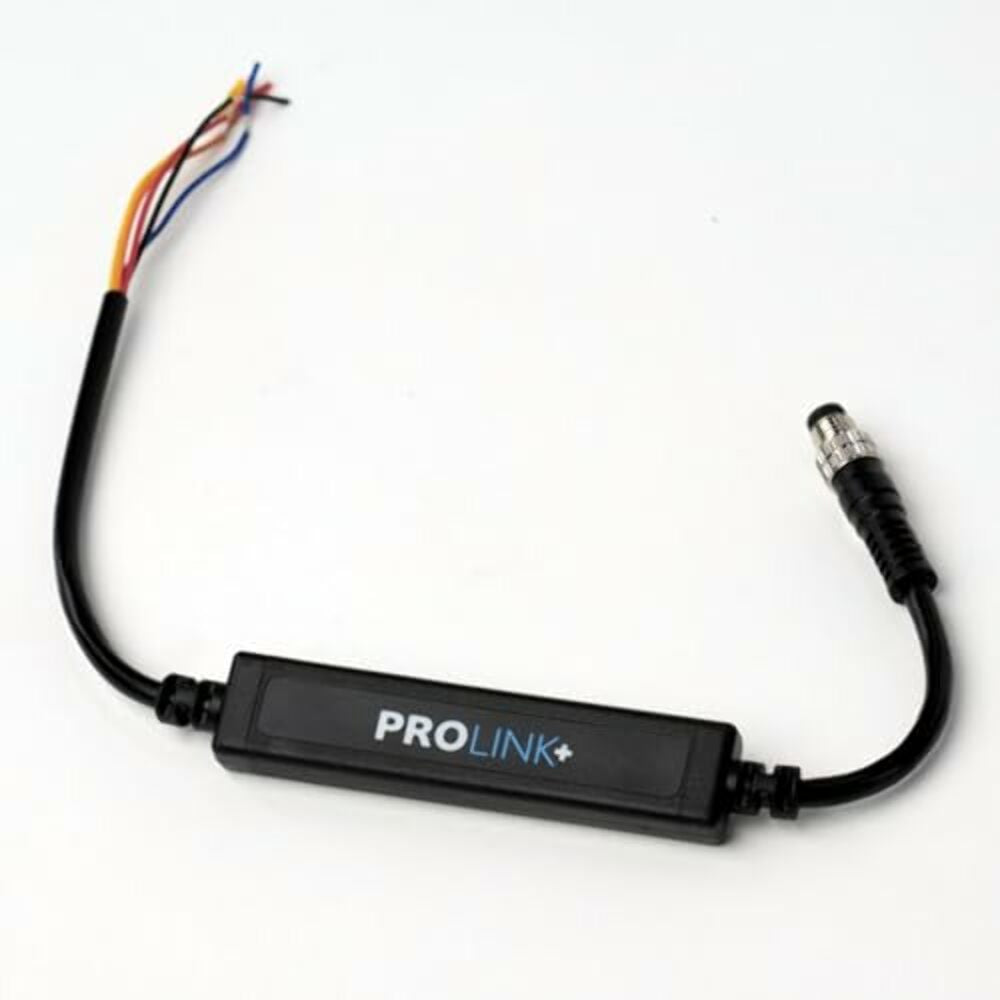

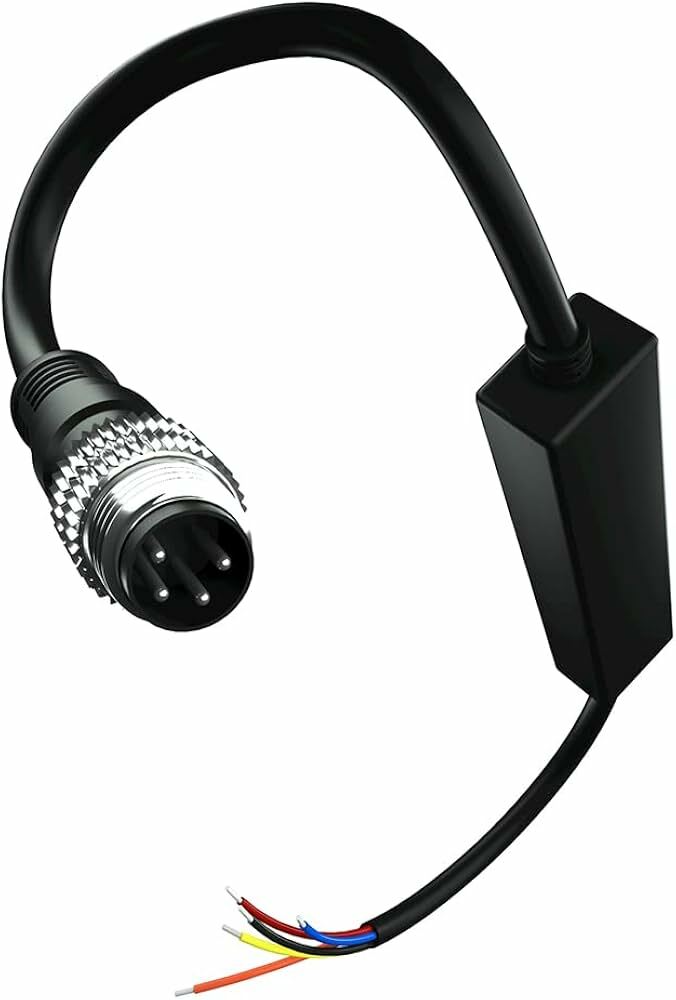

The Pro Link+ sports an all new design with a 4 Pin M8 Motorsports grade connector. Ensure you are securely connected while data logging your external data into the HP Tuners VCM Scanner.

PROLINK+ Specifications:

• 2x dedicated 0-5V analog inputs.
• 1x CAN bus input (500kbps).
• 100Hz sampling rate.
• M8 connector to 5 wire harness.
• For MPVI2+ and MPVI3 interfaces.
• MPVI2+ interfaces must purchase Pro Feature Set to be able to use the PROLINK+ cable.

PROLINK+ for MPVI3 Devices

Since the latest generation MPVI3 interface is standard with Pro Feature Set, you only need to purchase the PROLINK+ cable to wire in these additional inputs. No other purchase is required.

Pro Feature Set

Pro Feature Set enables the use of PROLINK+ for both MPVI2+ and the latest generation MPVI3. However, remember that MPVI3 is now standard with Pro Feature

Pro Feature Set also unlocks standalone data logging, allowing you to log directly to your interface’s internal storage without being tethered to a laptop. This highly convenient feature makes it easier than ever to collect data while on the road, track, or dyno.
