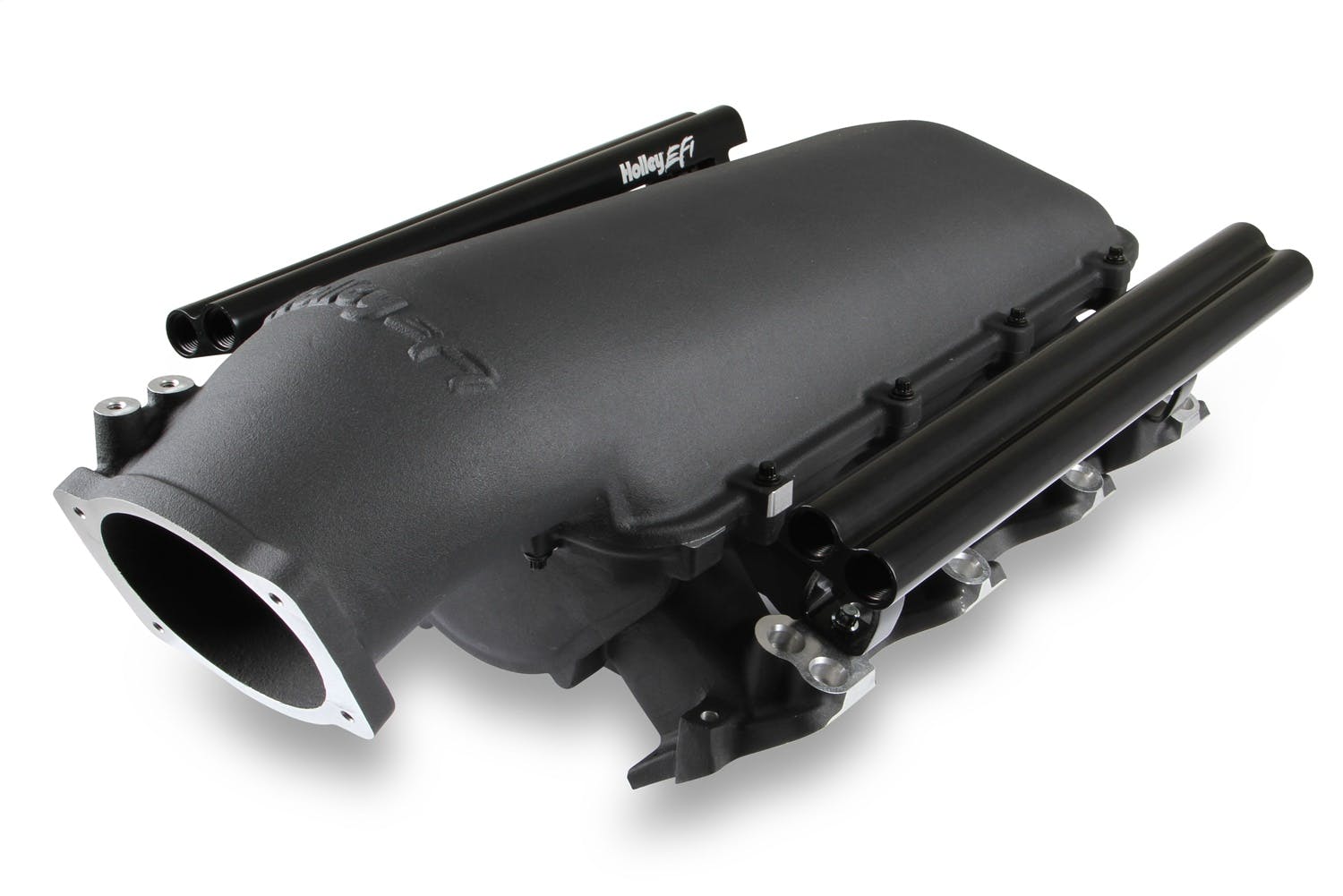

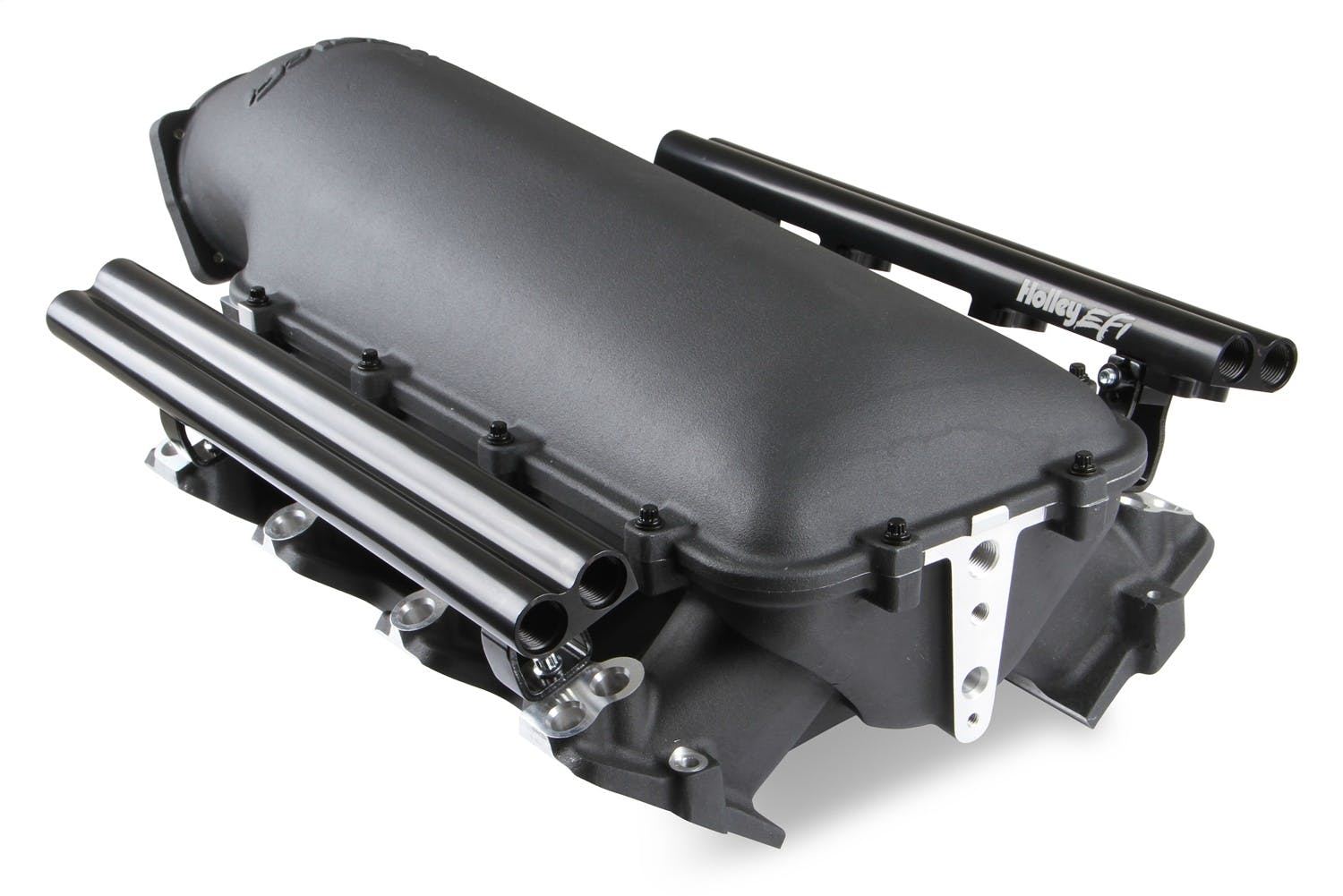

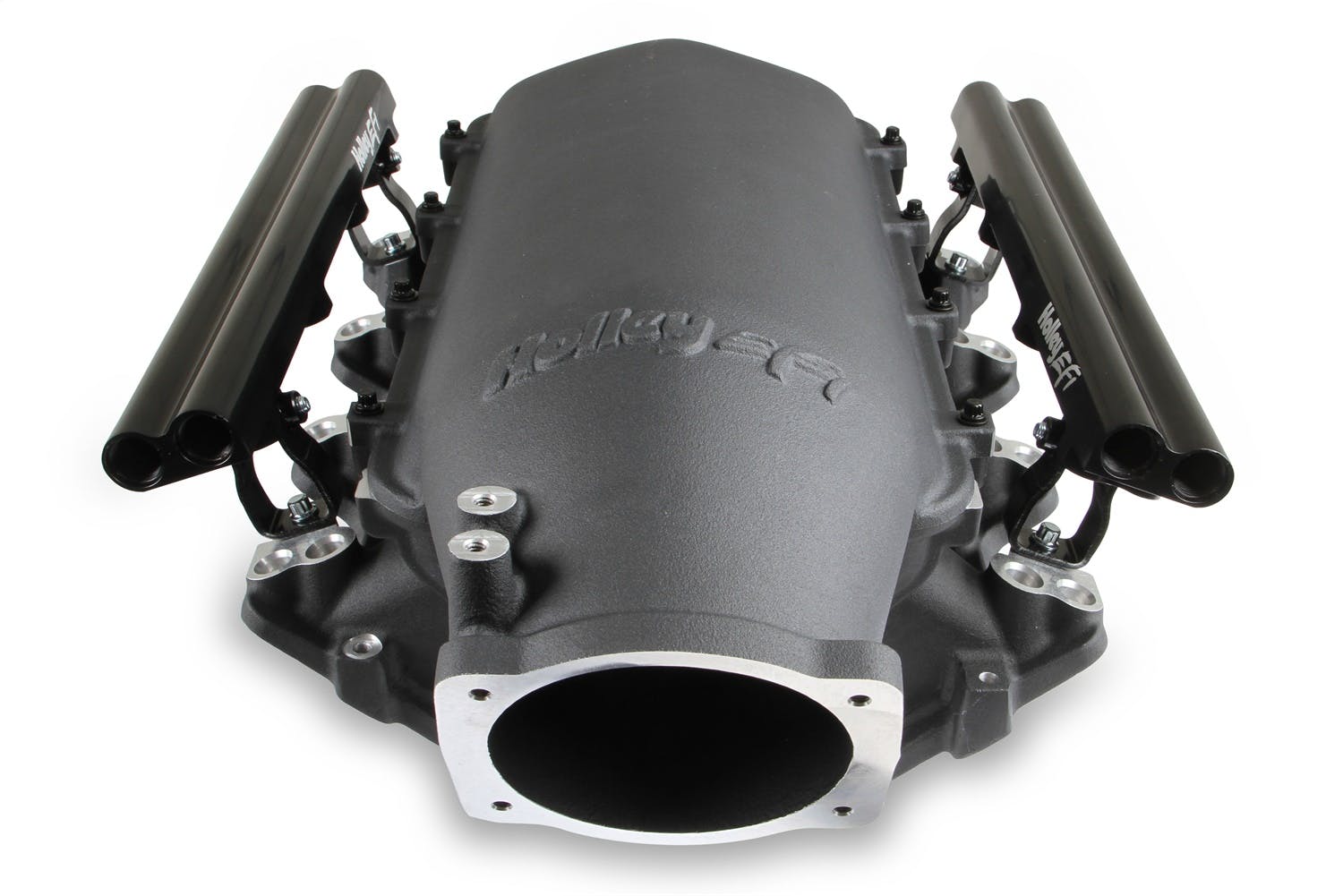

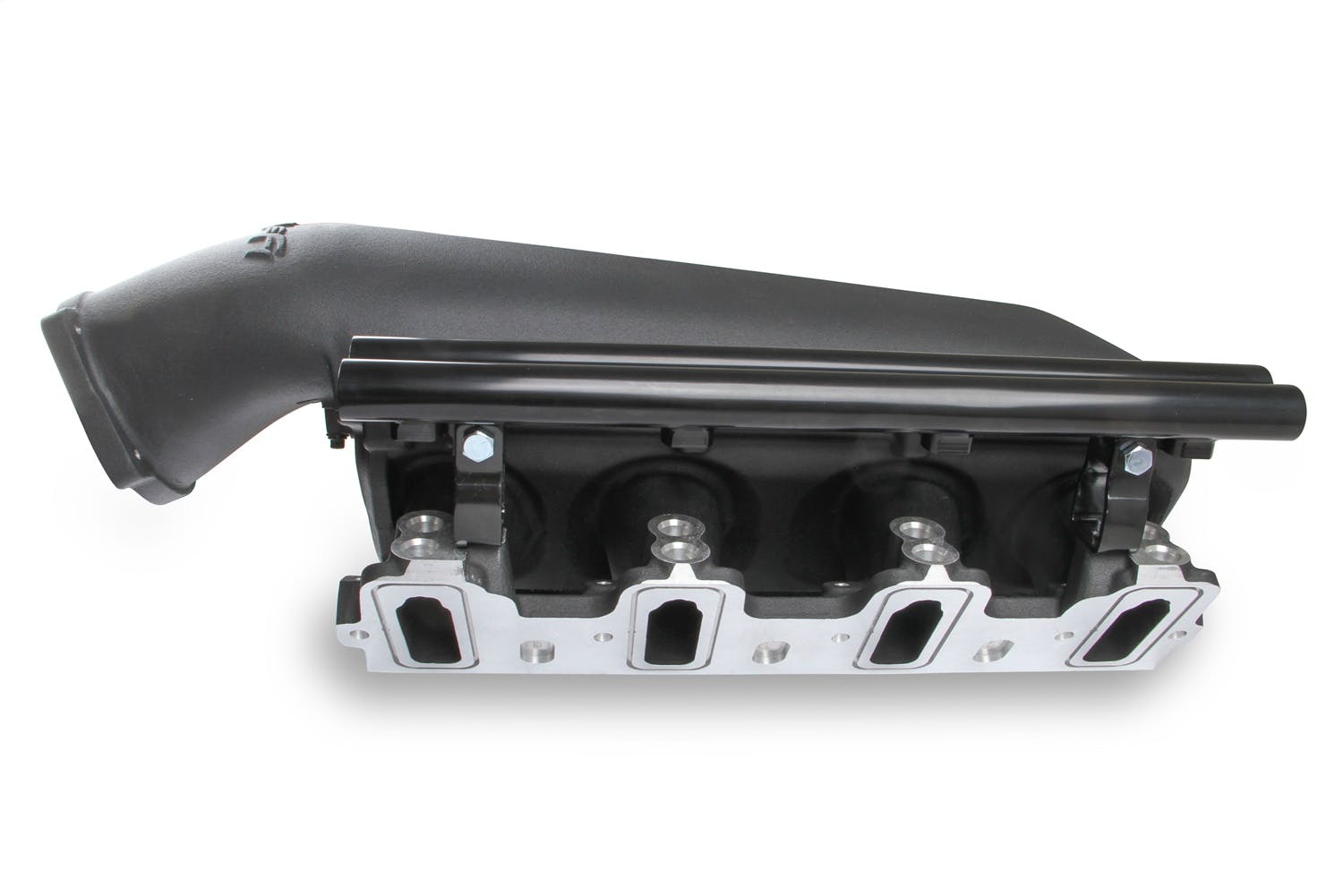

Holley EFI Lo-Ram Intake Manifold; Upper; Fits GM Engines w/LS1/2/6 Cathedral Ports Cylinder Heads; Top-Feed; Dual Fuel Injector; Black Finish;

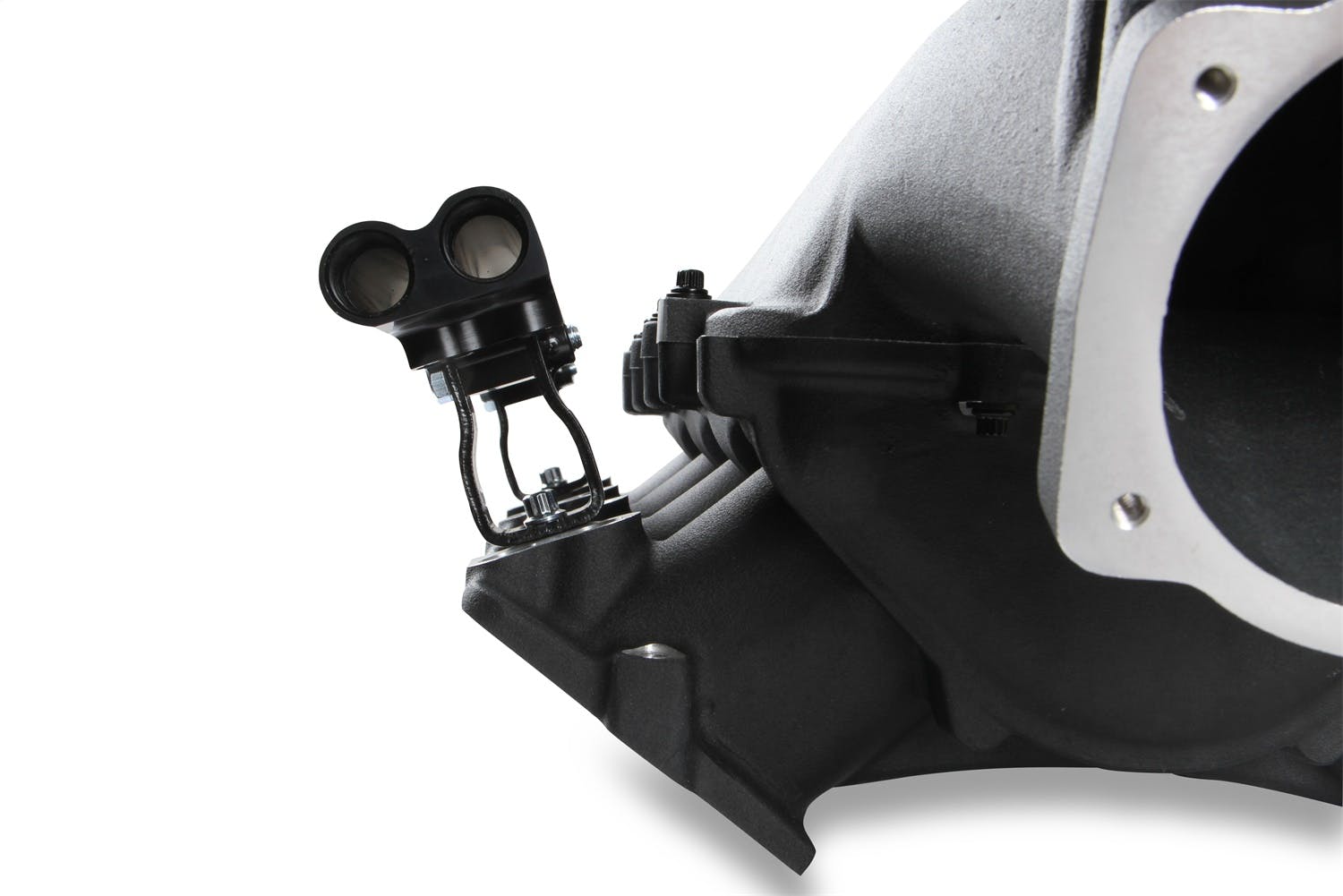

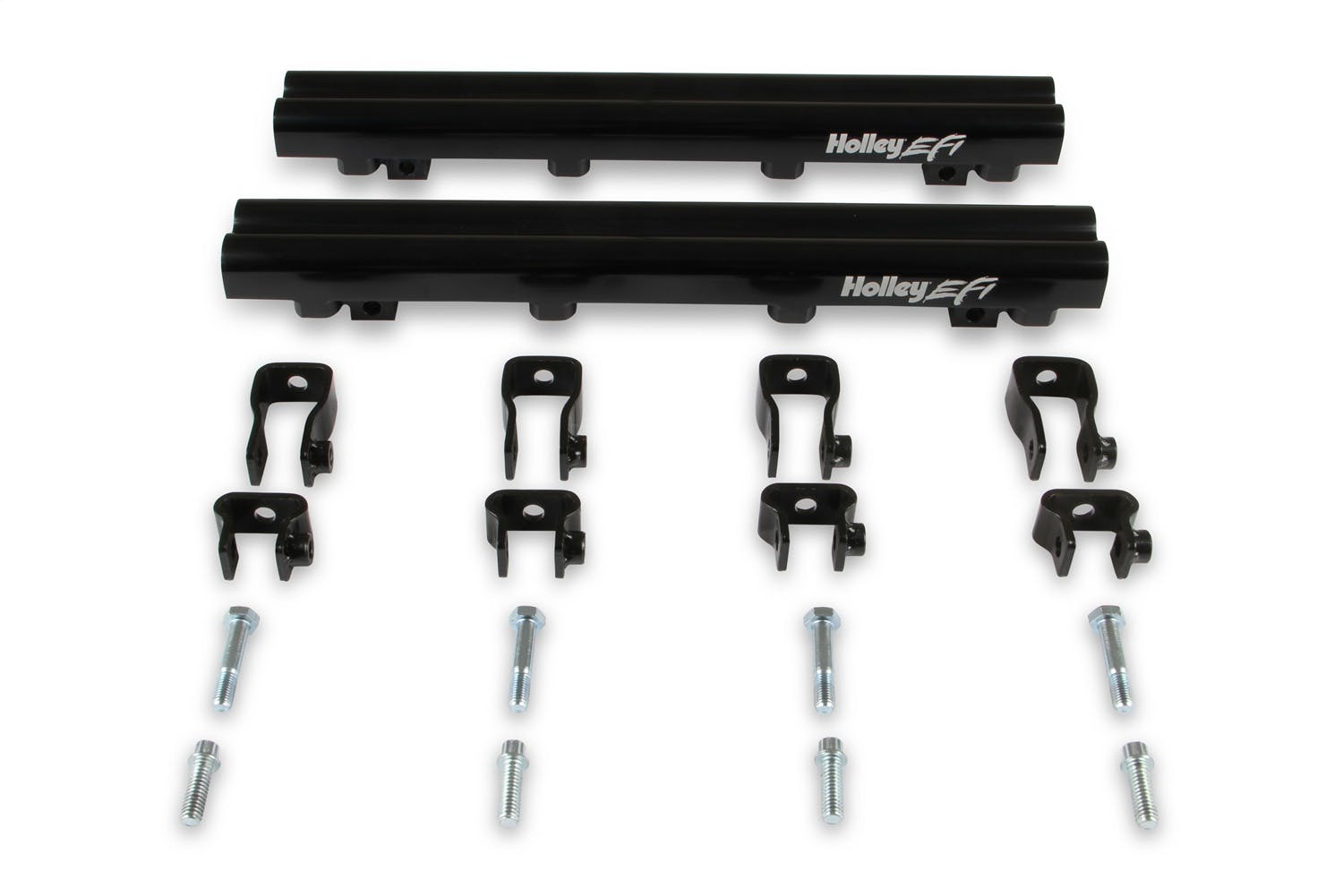

The 300-624(satin) & 300-624BK(black) top-feed intake manifold kit provides two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. The top-feed, short runner, low-profile base intake manifold was conceived to package plenum mounted intercoolers for high-boost turbocharged or supercharged induction systems with a shorter overall height not possible with other existing intake manifolds. The plenum top is configured to be fitted with 105 mm throttle body part number 112-581 or similar models. The dual fuel injector fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. Available in satin and black finishes.
- For Forced Induction Engines With Peak Power At 7000-8000 Rpm
- High Volume Fuel Rails And Mounting Hardware Included
- Plenum Mounted Air-To-Water Intercooler Top-Feed Configuration
- Available With Both As-Cast Satin And Black Power-Coat Finishes
