Holley EFI 1900 Car Ford Ford Godzilla (415, 445) Fuel Injection Conversion Kit

PN. 550-1431

SNEFI FICK

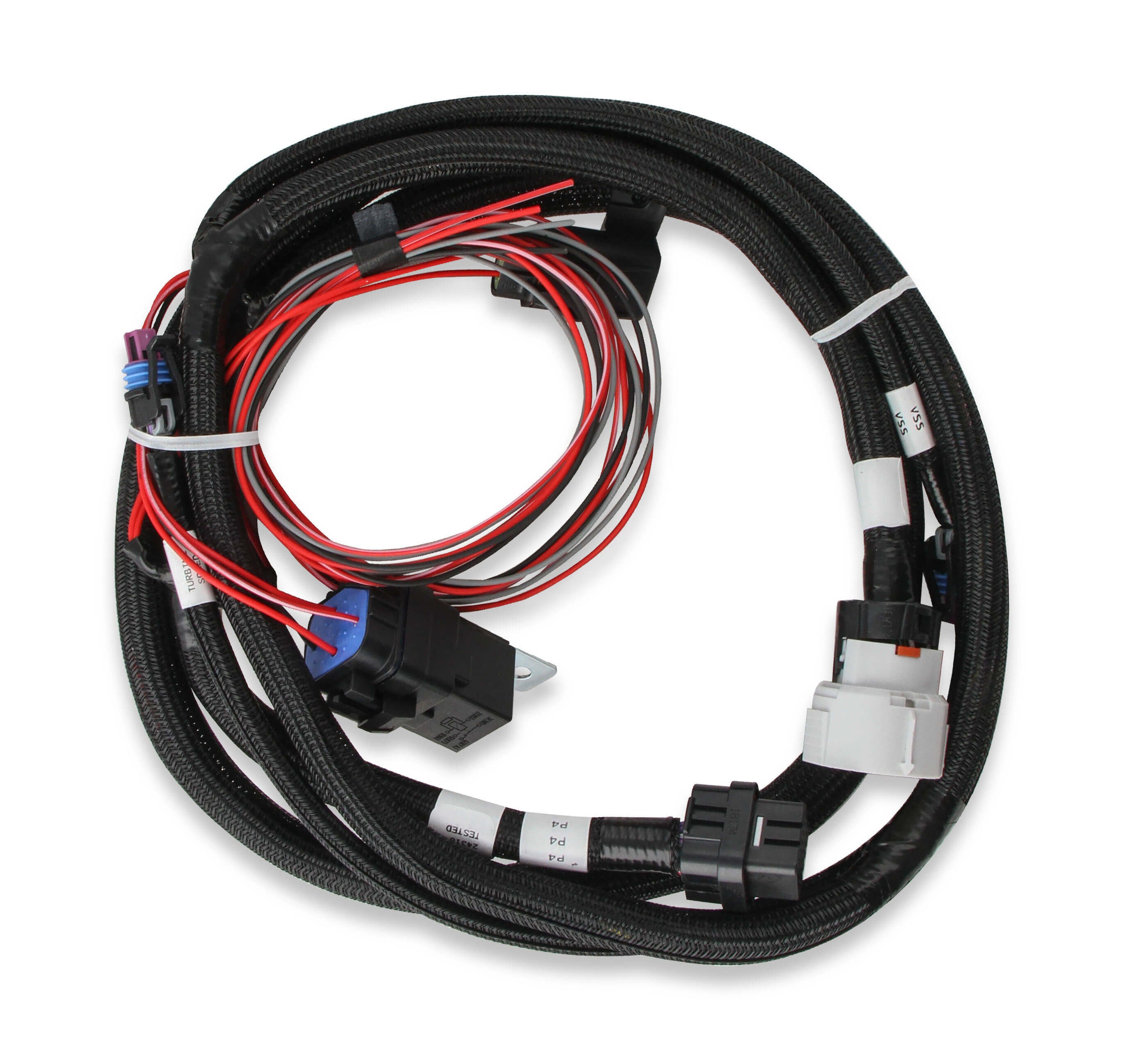

Harness Kit

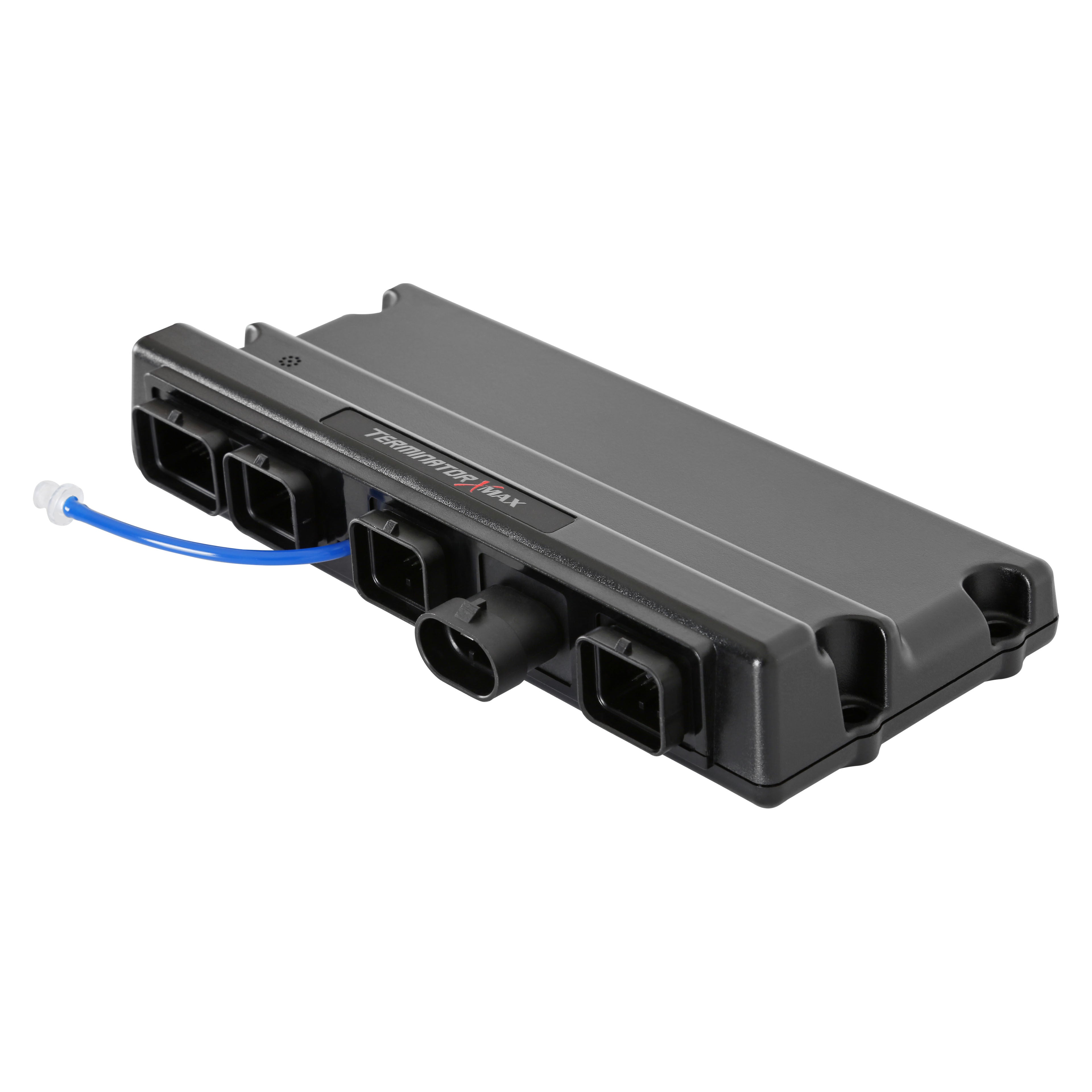

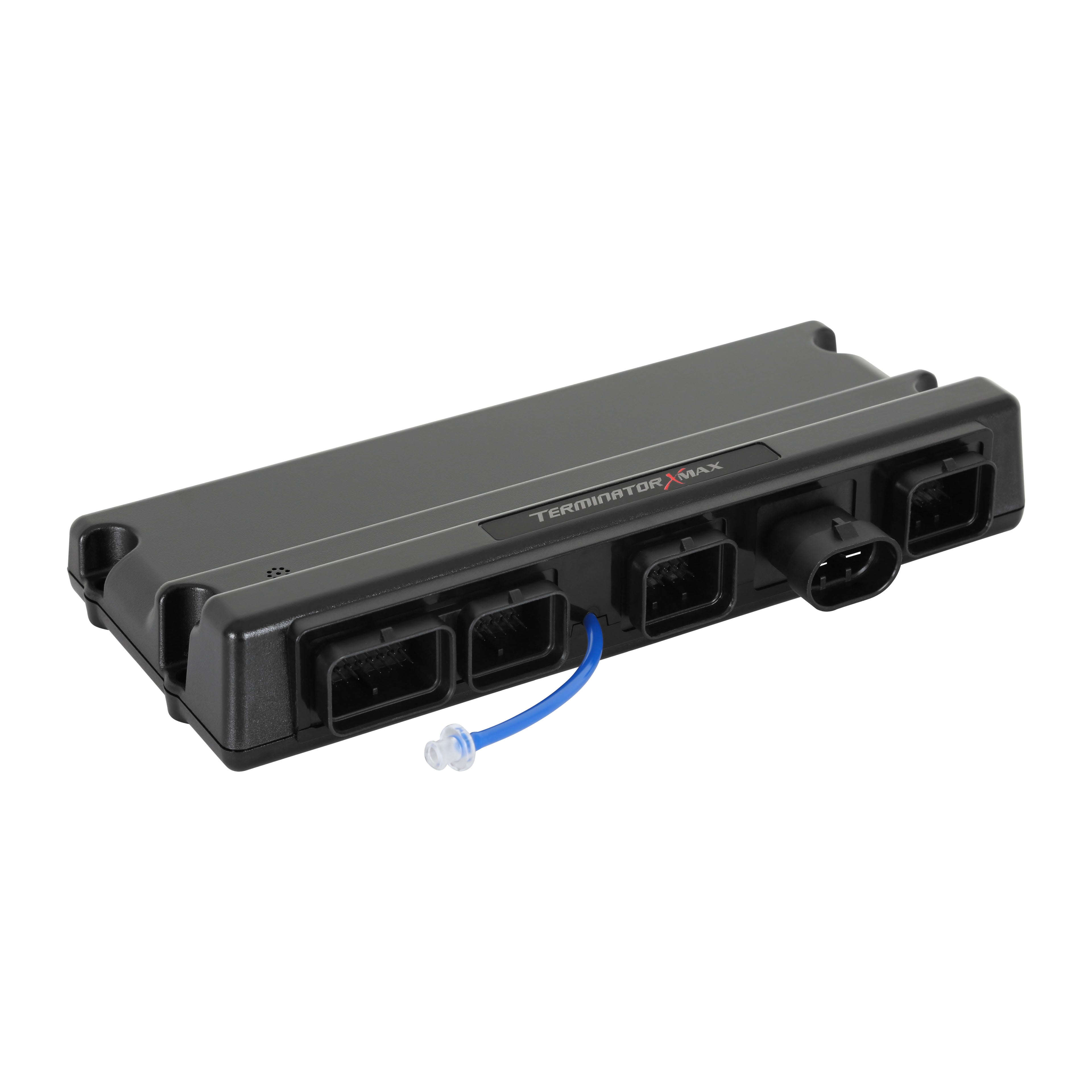

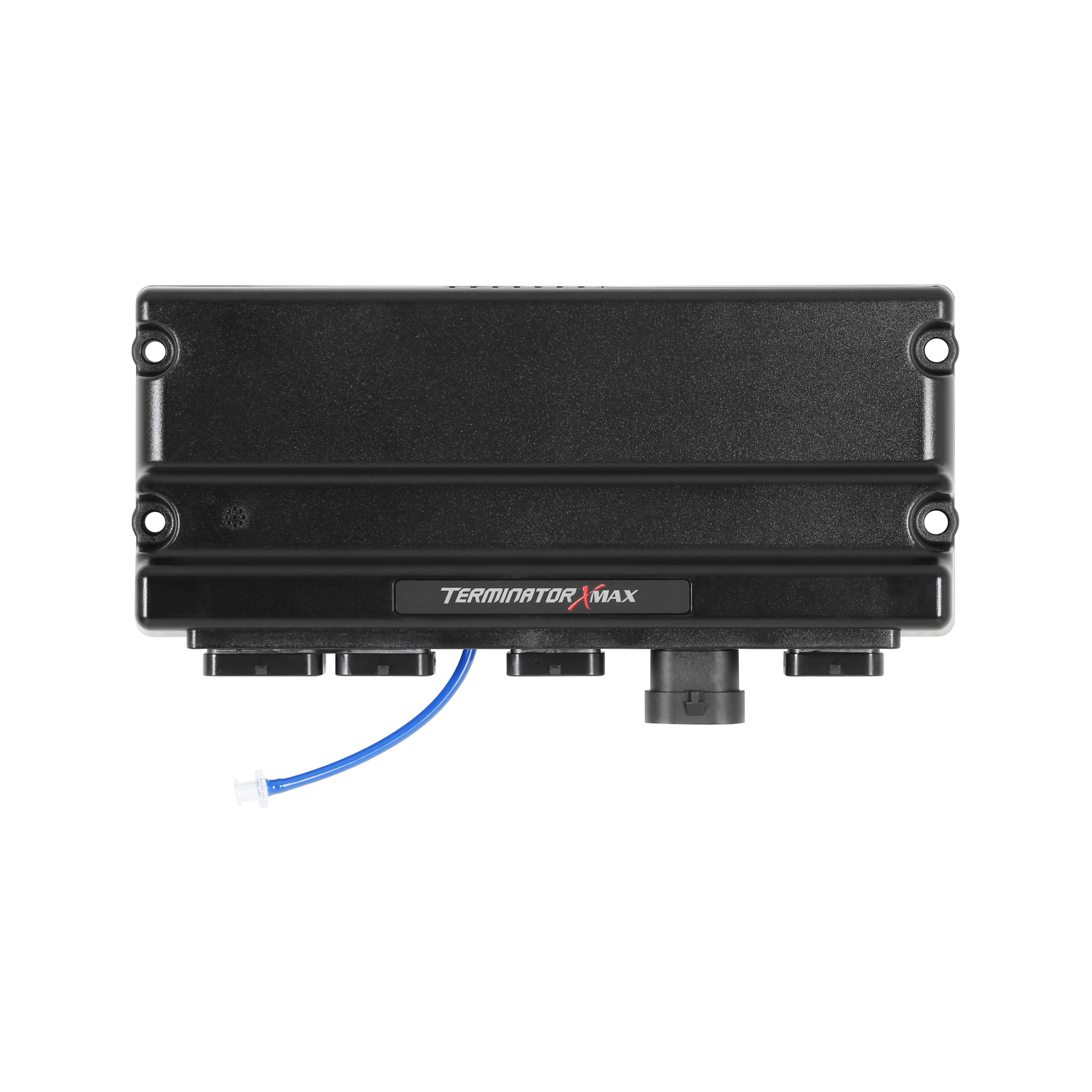

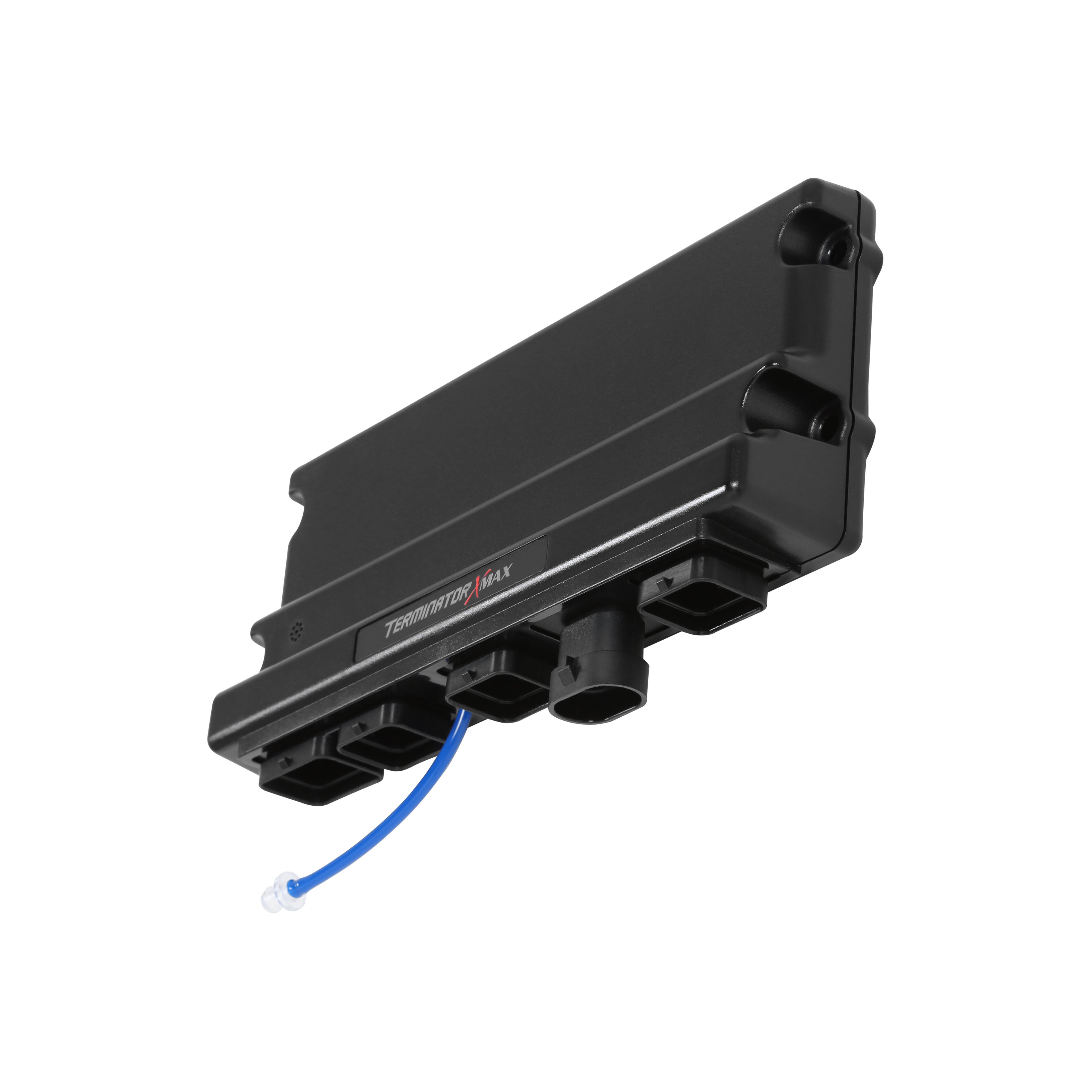

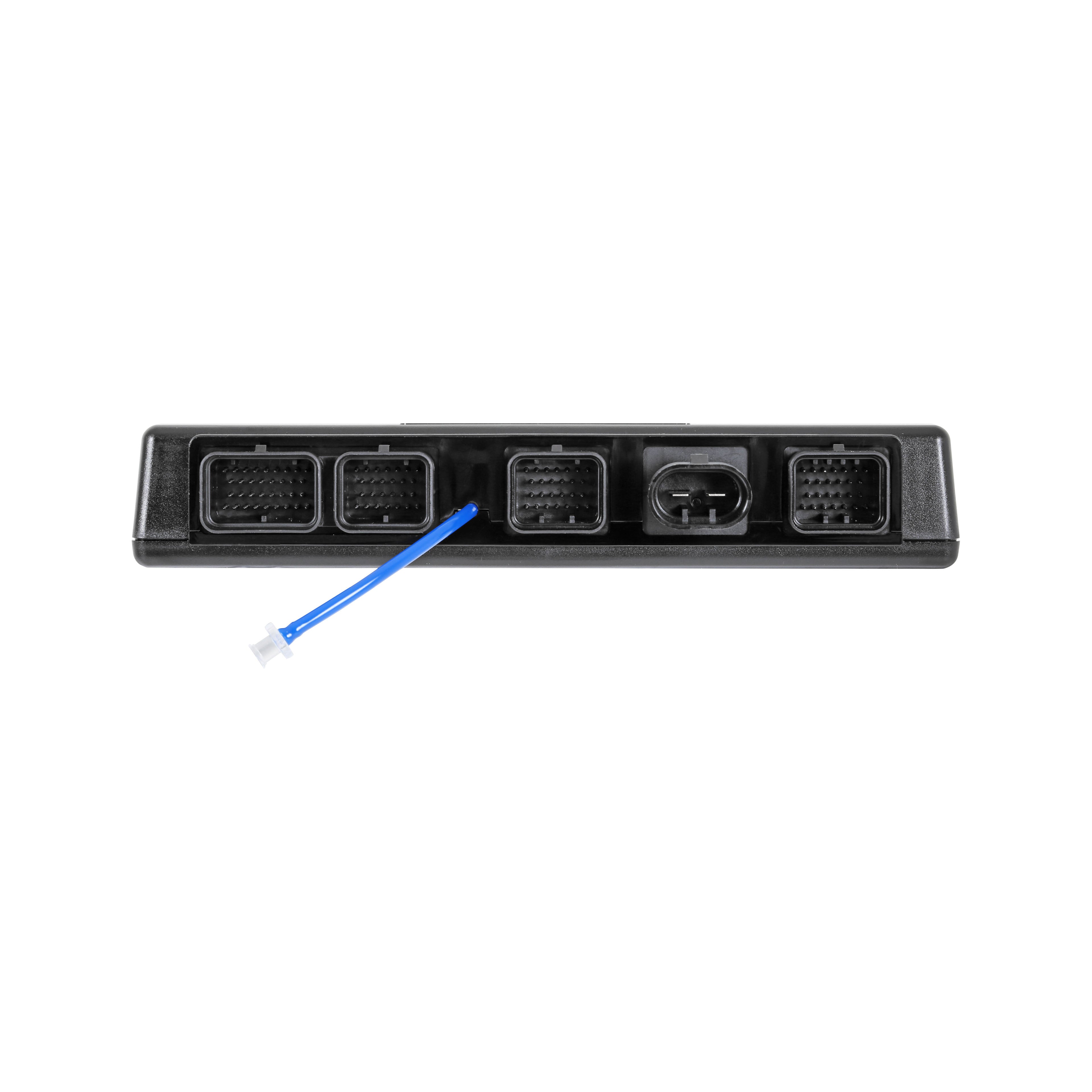

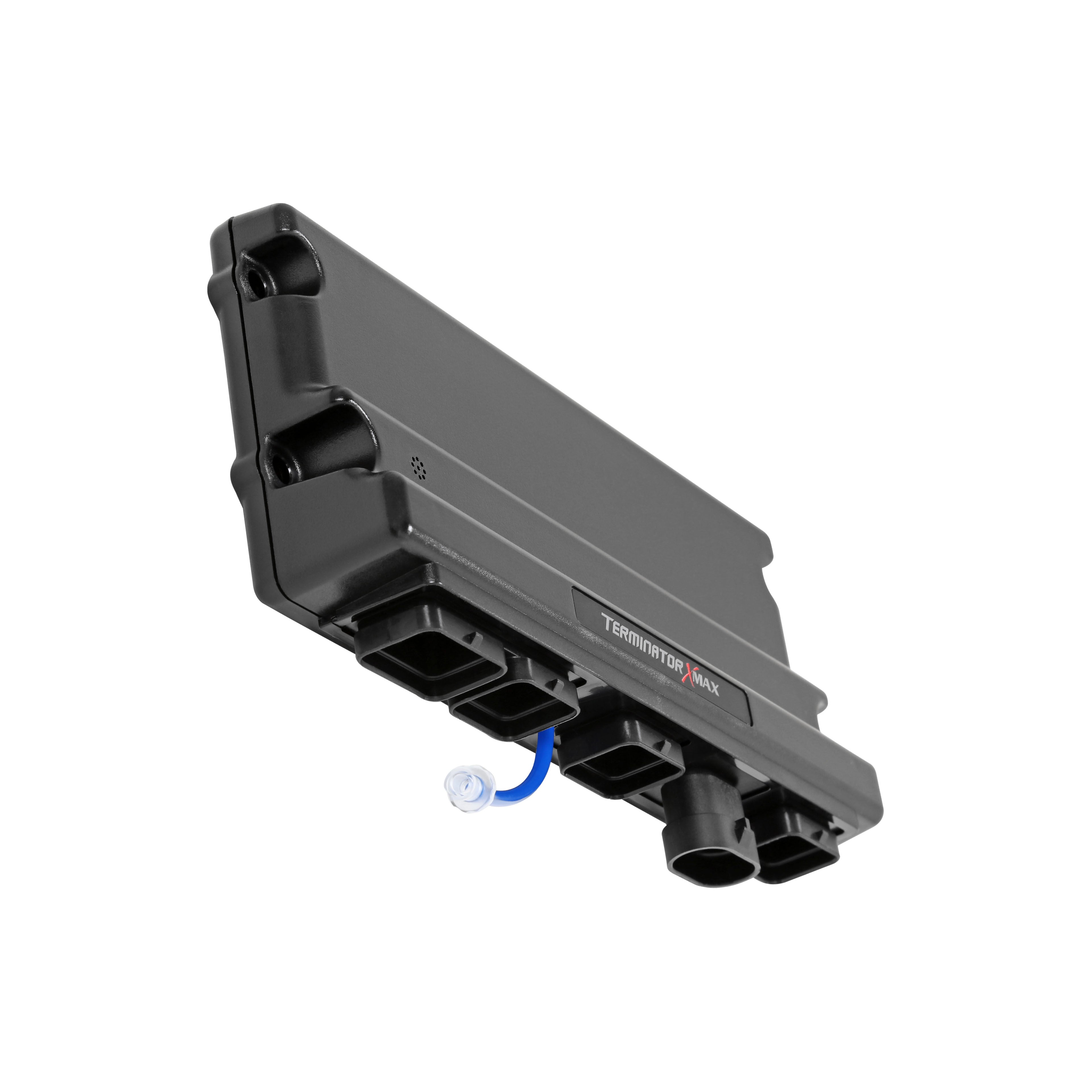

TERMINATOR X MAX 73L GODZILLA KIT

ECU is not recommended for marine applications, but can be used on off-road applications as long as you choose a safe location, keep it dry, protect from heat, and ensure proper wiring management.

The included Coil Harness is designed for 2020-2022 7.3L Godzilla ignition coils with the 2 pin connector. This Harness will not work with the 2023+ 3 pin ignition coil.

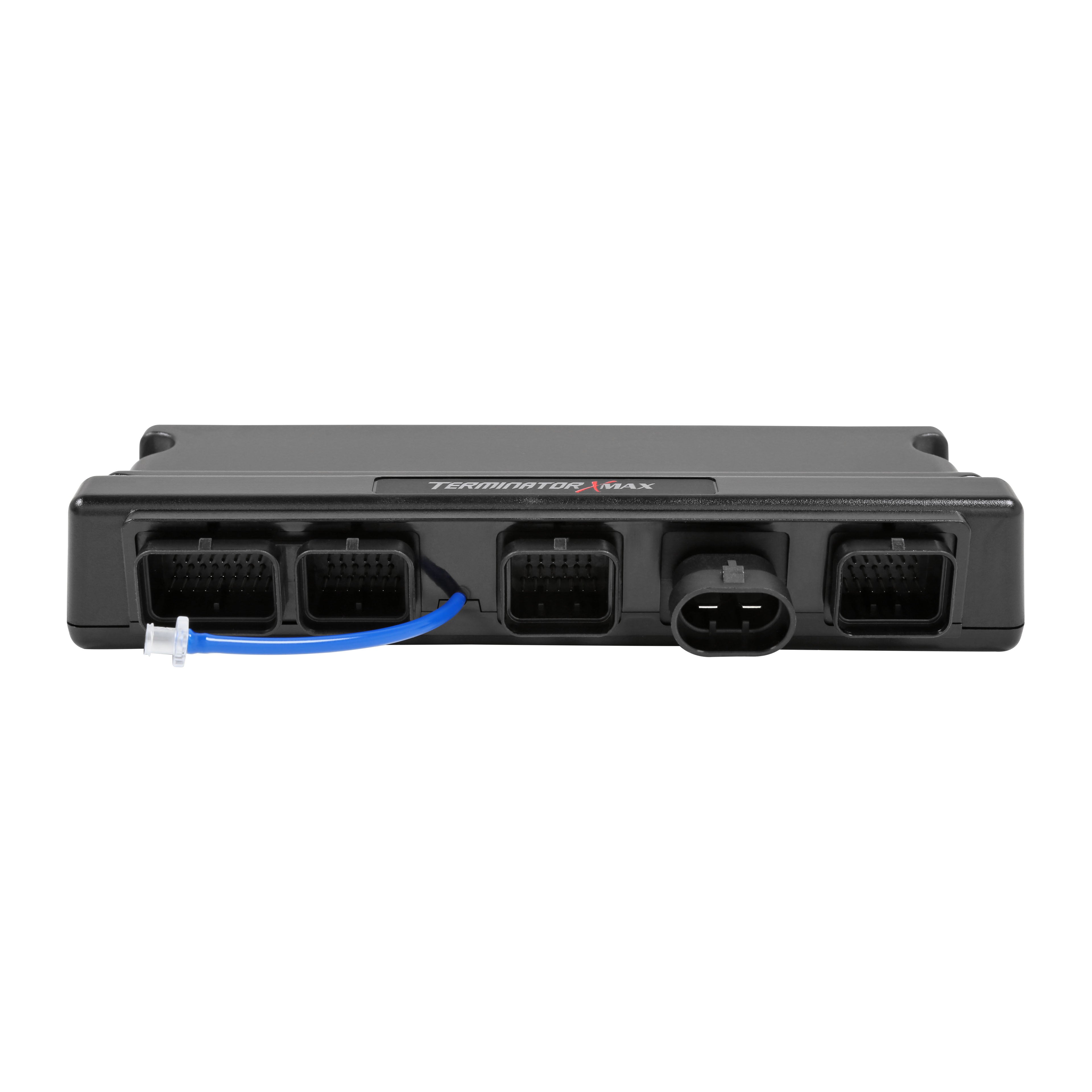

Holley EFI Terminator X Max - 7.3L Godzilla Kit for Stock Coils (2020-2022) w/ DBW Harness

EV6 Injectors - Drive-by-Wire Throttle Body Control, for use with Stock Coils

The Terminator X offers an advanced engine management solution specifically tailored for the formidable 7.3-liter Godzilla engine. Designed to unlock the full potential of these powerhouse engines, the Terminator X provides unparalleled control over fuel and ignition systems. With plug-and-play compatibility, installation is seamless, requiring no extensive modifications. Featuring customizable tuning options, users can fine-tune performance parameters to suit their driving preferences, whether it's maximizing horsepower and torque or optimizing fuel efficiency. Equipped with integrated data logging capabilities, diagnosing and troubleshooting engine performance becomes effortless. The Terminator X ensures a smooth and responsive driving experience, allowing enthusiasts to harness the immense power of their 7.3-liter Godzilla engine with confidence and precision.

Base Calibrations included in the free Terminator X Software, and Handheld Wizard - OEM VVT and Oil pump control pre-configured

Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties

All of the new Terminator X Max systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.

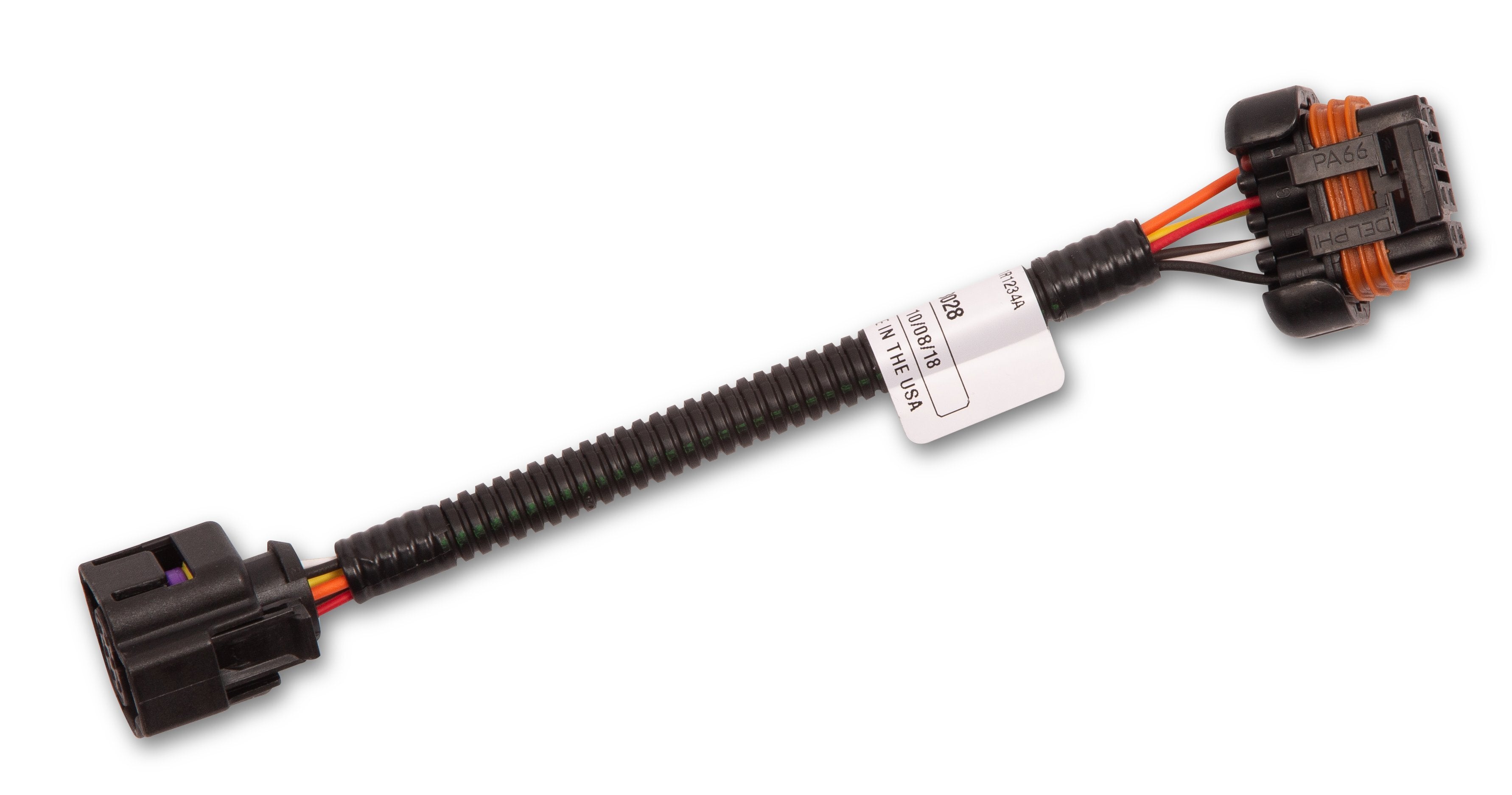

Godzilla Crank Sensor Module included, must be used in-line with factory crank sensor

4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake

Seamlessly integrates with your 7.3-liter Ford Godzilla engine for easy installation

High Impedance Injector Drivers will safely power most OEM injectors, and Holley EFI Injectors. (Will not control Low Impedance Injectors)

The included 3.5 IN Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any Godzilla engine. Additionally, the handheld provides internal data-logging and a fully customizable gauge display.

On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance

On-Board 1BAR MAP sensor, is perfect for N/A or Nitrous engine combos. If your combination requires a 2+BAR, we recommend GM 12592525, and our adapter part number 558-416.

No need for extensive modifications, enjoy a hassle-free setup

Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!

Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR

OEM Oil pump control and VVT Control built into both Godzilla main harnesses, these features utilize 2 inputs and are pre-configured in the base calibrations.

Real-Time fuel map learn, takes the guess work out of tuning your base fuel table.

MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)

Free EFI Tuning Software for complete control of your Terminator X power plant

The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!

4 Outputs – Ground, PWM - , for accessories such as, fans, boost control, nitrous control, IAC Kit, and More

Customizable tuning parameters allow you to tailor performance to your specific driving preferences.

Drive-by-wire kits require the use of the specific OEM throttle bodies and throttle pedals: Throttle Body - JL3E-9F991-AA – Throttle Pedal - BR3Z-9F836-D. Other options are listed within instruction manual 199R12525

Plug and play compatible with more Holley EFI accessories such as, analog style gauges, EGT module, aswell as 5-inch, 6.86-inch and 12.3-inch Digital Dashes
