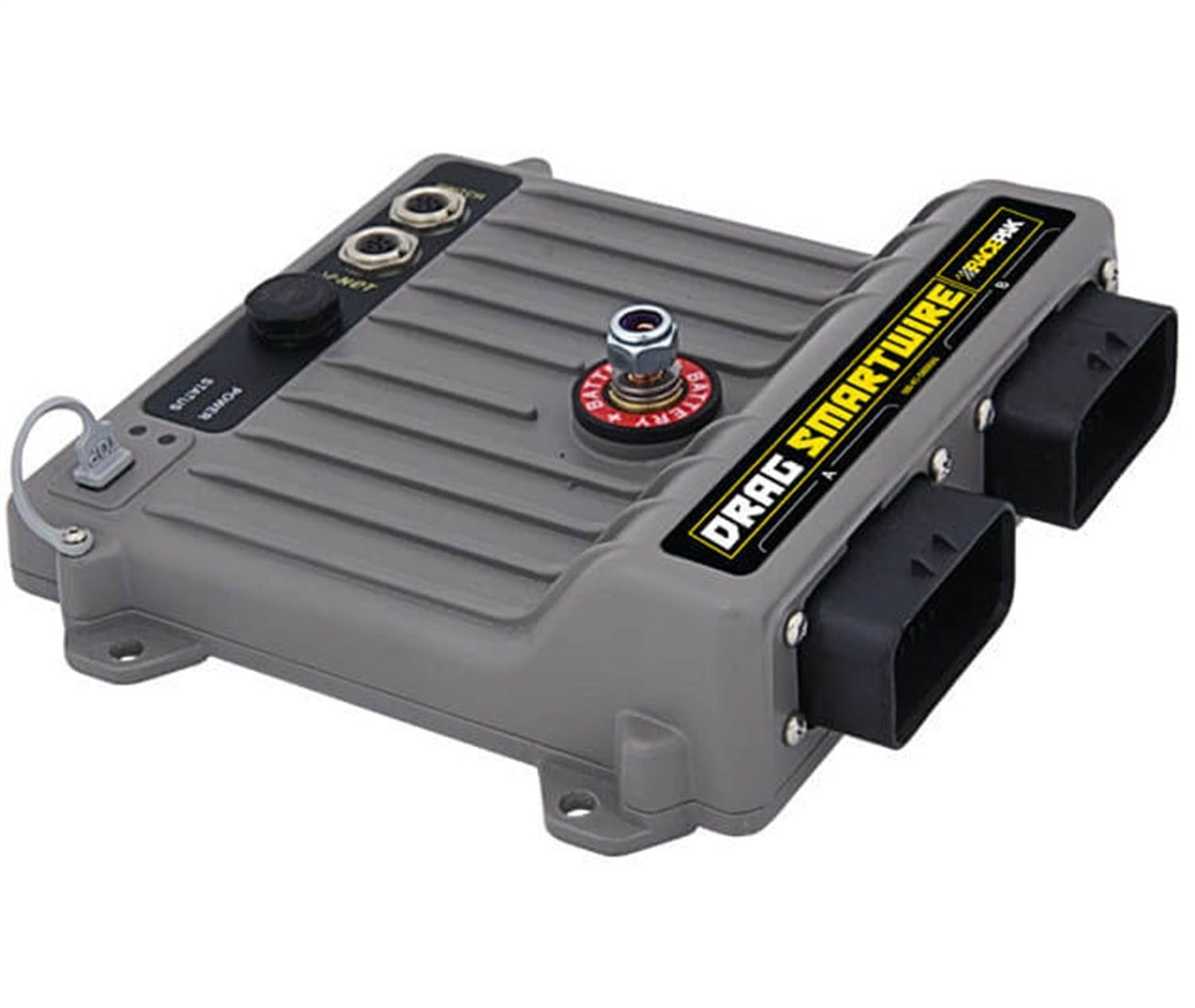

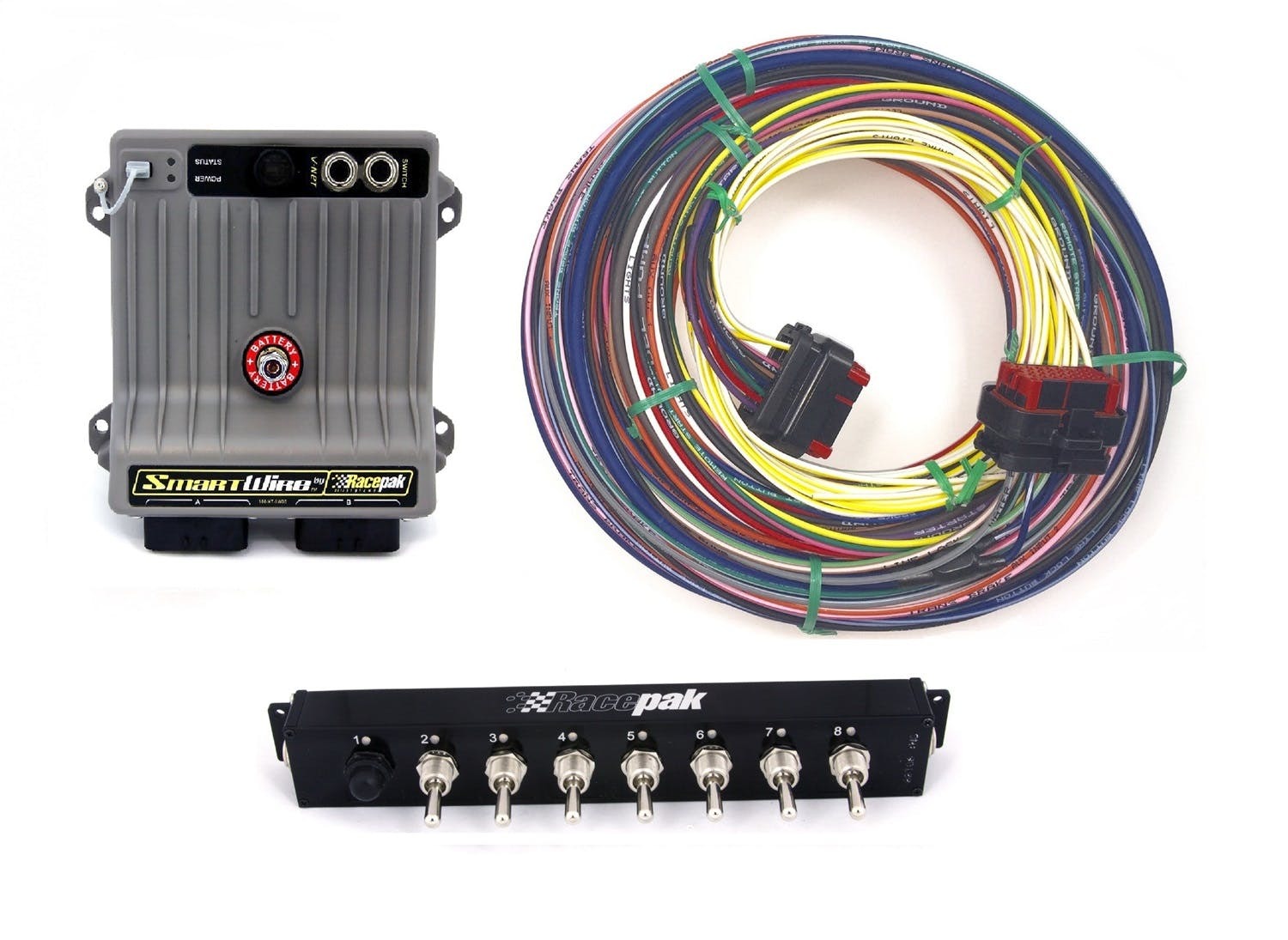

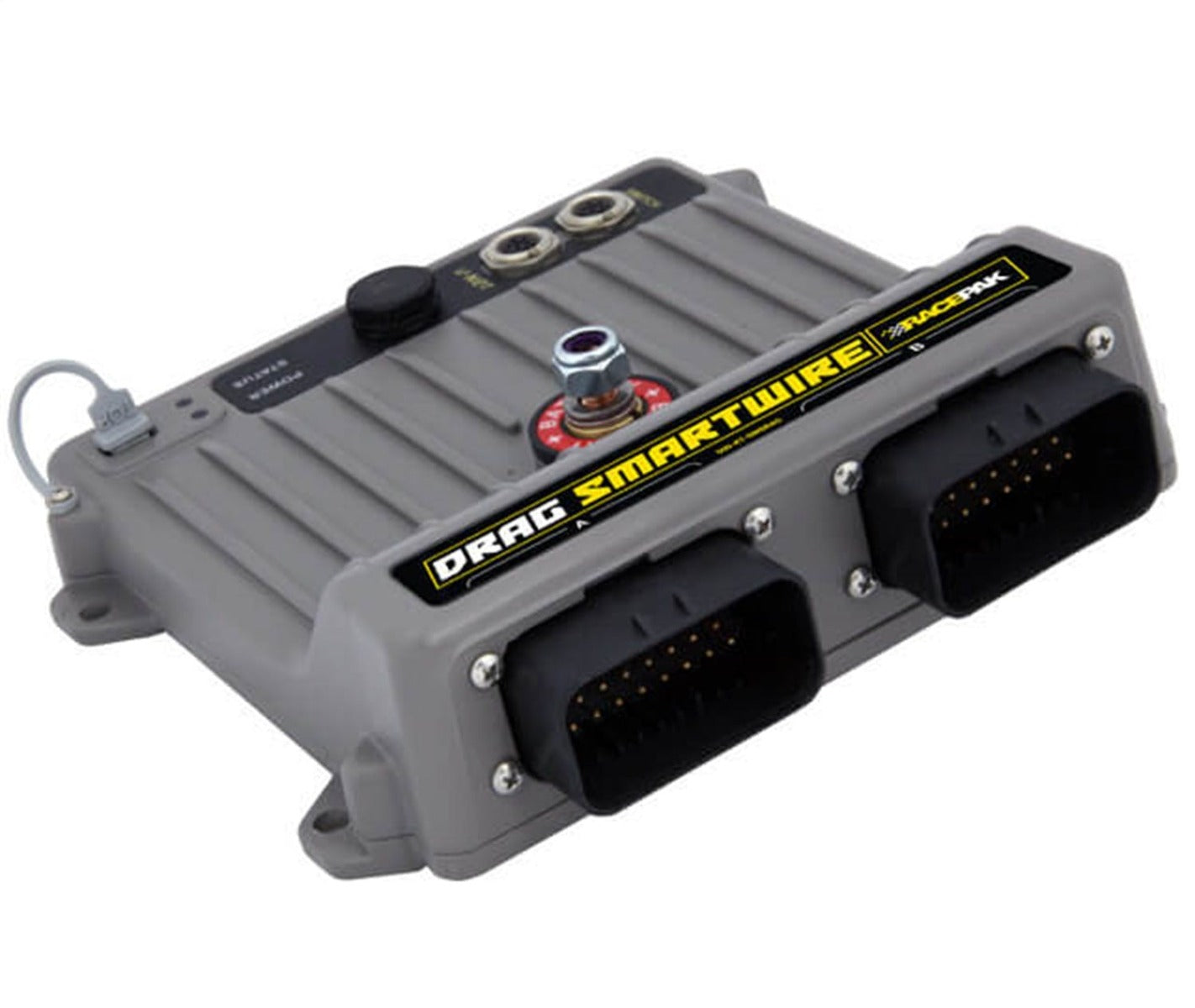

Drag SmartWire Power Control Module; Incl. Drag SmartWire / Switch Panel / Labeled Wiring Harness / SmartWire To Switch Panel Cable / USB Programming Cable / Software;
The Racepak Drag SmartWire serves as a drag vehicle's power distribution center. Solid state design eliminates traditional fuse panels, breakers and relays while reducing wiring complexity and weight in the vehicle. Inputs and outputs are user-definable, enabling complete control of a drag racing vehicle's power needs. It also connects seamlessly to Racepak data recorders and display dashes. The box includes: drag SmartWire, switch panel, labeled wiring harness, SmartWire to switch panel cable, USB programming cable and Racepak Datalink II software. Specifications: solid-state design / 125 amp total output / 30 total outputs / 12 total inputs / pre-labelled wiring harness / included switch panel. Dimensions: 6.500 in. (L) x 5.500 in. (W) x 2.000 in. (H) (16.51 cm. x 16.51 cm. x 4.445 cm.) / 25.8 oz. (731.4 g)
- Serves As Drag Vehicle Power Distribution Center
- Includes Drag SmartWire / Switch Panel / More Parts
- Solid-State Design
- 125 Amp Total Output
- 30 Total Outputs
- 12 Total Inputs

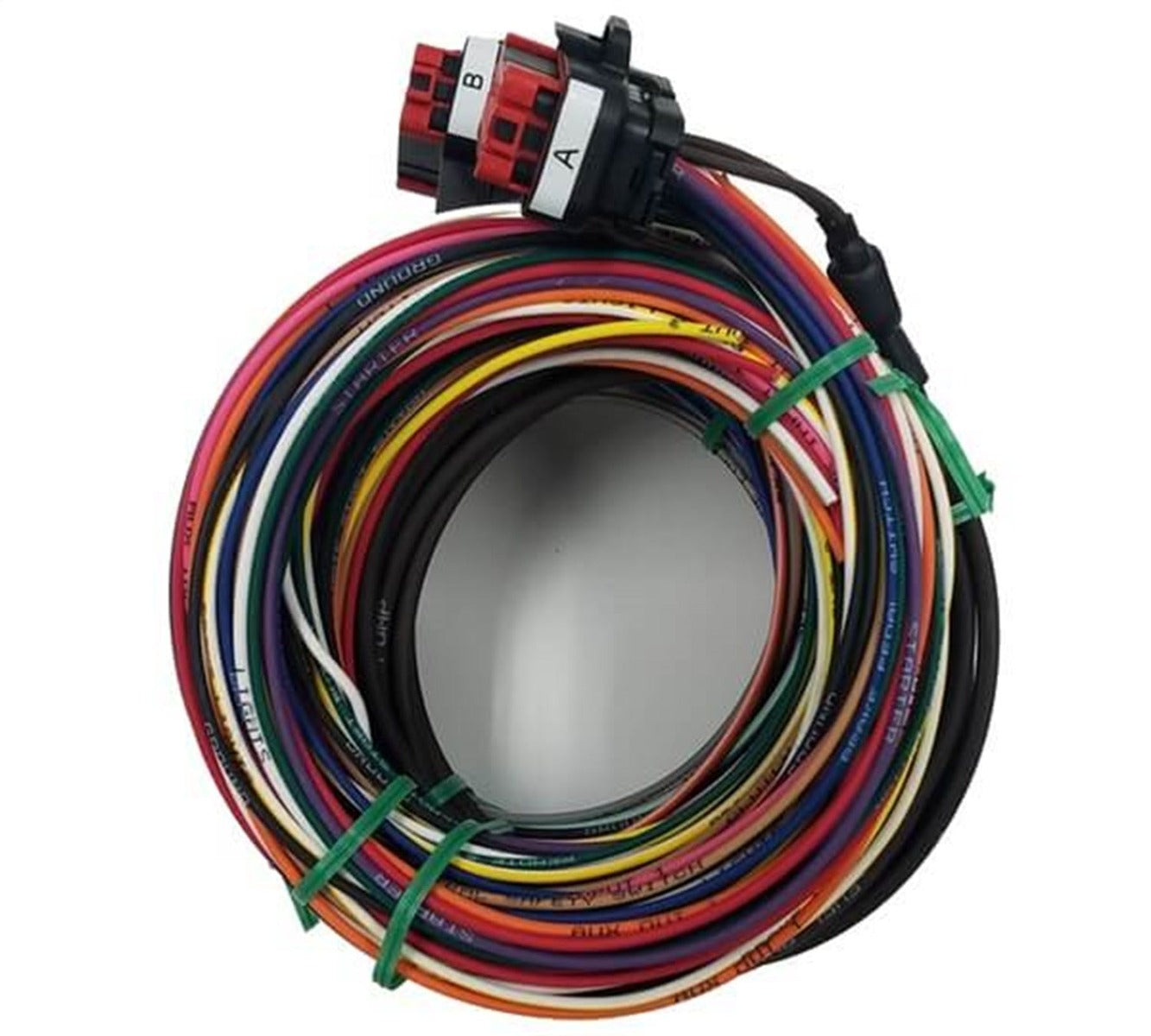

- Pre-Labeled Wiring Harness

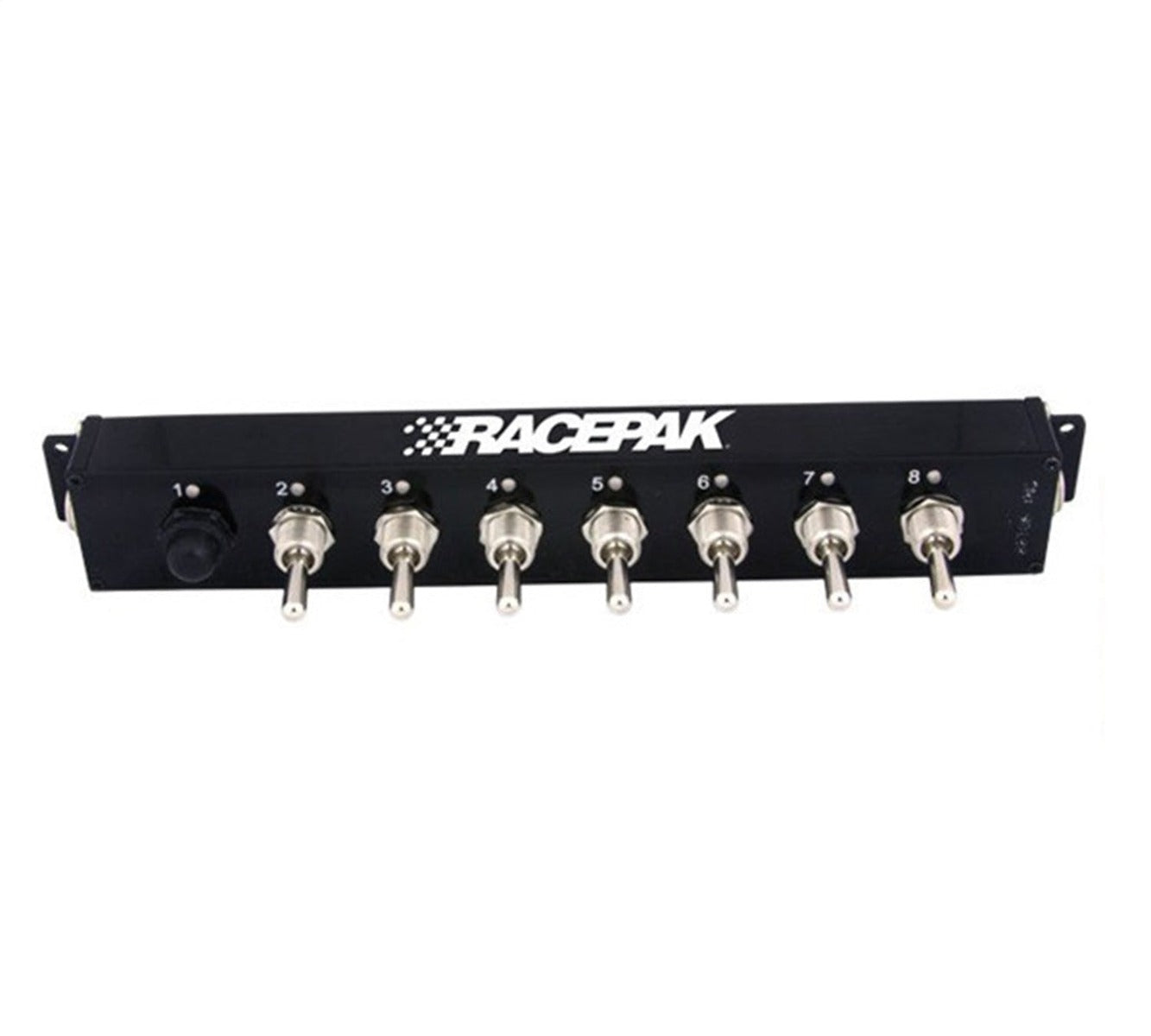

- Includes Switch Panel
- Response Time: 3.0 Miliseconds

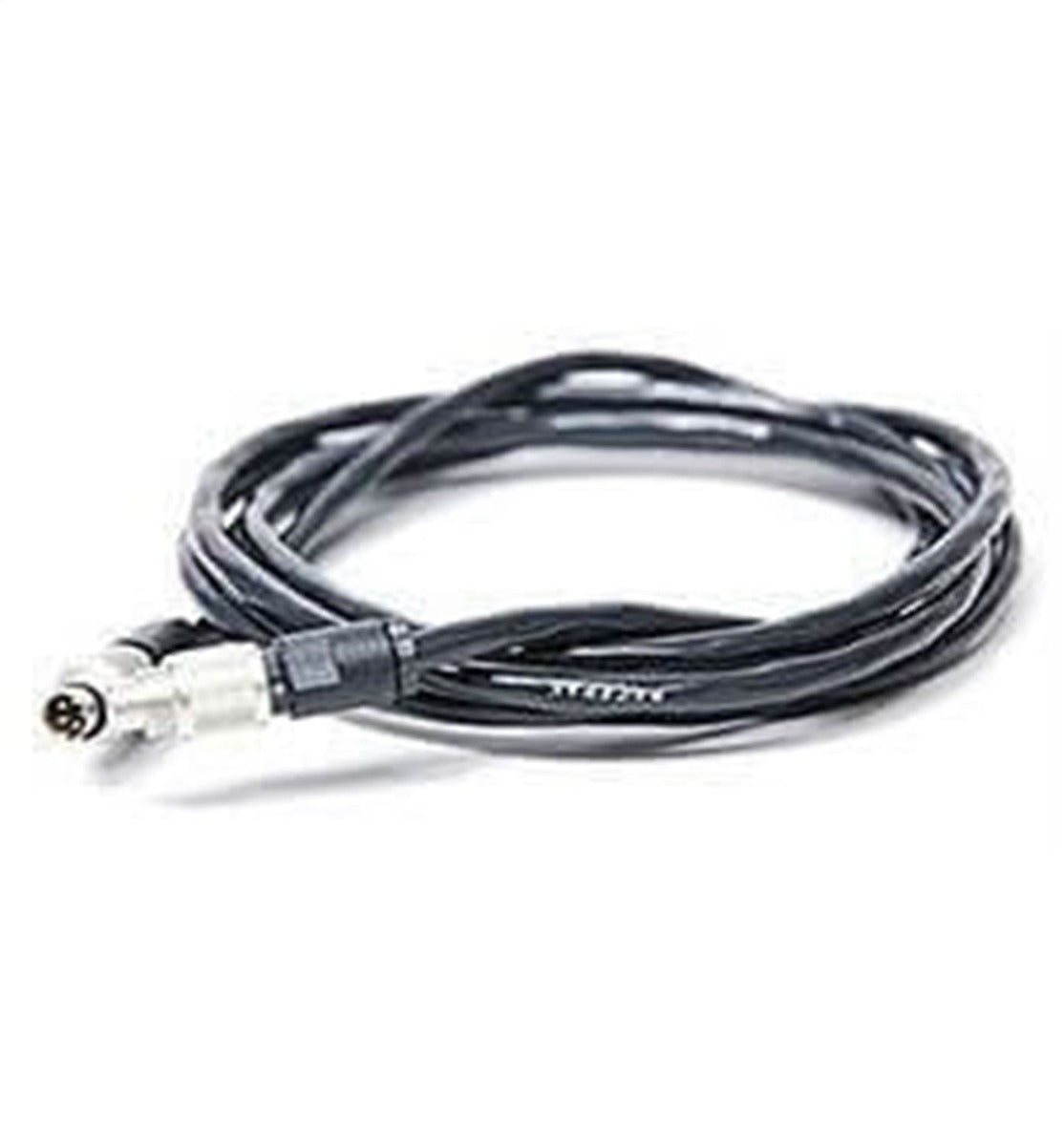

- Programming: USB Cable with Free Datalink II Software
- Dimensions: 6 (L) x 5.5 (W) x 1.5 (H)
- Connectors: Two - 23 pin Ampseal, One 1/4 x 20 Main Power Stud, One mini USB (for programming), One Switch CAN bus (for optional switch panel or module), One V-Net CAN bus for optional V-net accessories, such as sensors).
- Includes - Drag Smartwire Harness - Switch Panel - Smartwire to Switch Panel cable, and Programming Cable.
- Eliminates Traditional Fuse Panels / Breakers / Relays
- Connects Seamlessly To Racepak Data Recorders And Display Dashes
