Weld Racing Draglite Polished Wheels 90-510044

Weld Racing Draglite Polished Wheels 90-510044

Weld Racing
WLD90-510044
This is a SPECIAL ORDER part. This item can be brought in either with a stock order or on its own. Contact us today to discuss available options BEFORE ordering.
$426.97
$444.76
$426.97

CLEARANCE / DISCONTINUED ITEM - ALL SALES FINAL
Weld Racing Draglite Polished Wheels 90-510044

Weld Racing

Weld Racing Draglite Polished Wheels 90-510044

$444.76 $426.97
Weld Racing Draglite Polished Wheels 90-510044

Weld Racing

Weld Racing Draglite Polished Wheels 90-510044

$444.76 $426.97
Description

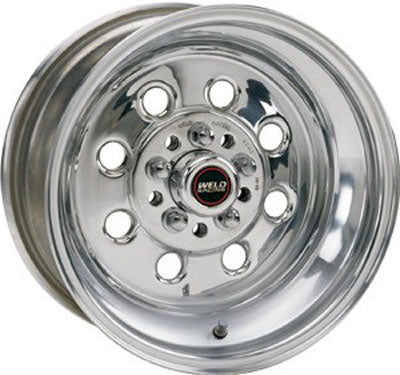

Weld Racing Draglite Polished Wheels

90-510044

Weld Racing's Draglite polished wheels are made from cold-forged aluminum, so you know that they're strong and lightweight--up to 40 percent lighter than other comparable race wheels. They can take the abuse of street driving, while reducing your car's unsprung weight, helping to lower ETs and improve your car's handling. The Draglite wheels include a center cap.



Wheel, Draglite, Aluminum, Polished, 15 in. x 10 in., 4 x 4.25/4.50 in. Bolt Circle, 7.50 in. Backspace, Each

Wheel Diameter:
15 in.
Wheel Width (in.):
10.00
Wheel Size:
15x10
Wheel Bolt Pattern (application):
  • 4 x 108mm
  • 4 x 114.3mm
  • 4 x 4 1/2 in.
  • 4 x 4 1/4 in.
Wheel Material:
Forged aluminum
Designed for Dually Truck:
No
Manufacturers Wheel Series:
Weld Racing Draglite Series
Backspacing (in.):
7.50
Wheel Construction:
2-piece
TPMS Sensor Compatible:
Yes
Beadlock Included:
No
Beadlock Functional:
No
Lug Nut Seat Style:
Shank
Lug Nut Shank Length (in.):
1.38
Lug Nut Shank Diameter (in.):
0.69
Washer Outside Diameter (in.):
1.25 in.
Hub Centric Ring Compatible:
No
Center Bore Diameter (in.):
3.18
Center Bore Diameter (mm):
80.77mm
Center Cap Included:
Yes
Load Rating (lbs.):
1,200 lbs.
Lug Nuts Included:
No
Small Diameter Lug Nuts Required:
No
Valve Stems Included:
Yes
Quantity:
Sold individually.
Special Attention:
Due to the construction of the inner wheel barrel, some aftermarket brake kits may require modification for fitment and clearance.



Fitment
Read More
