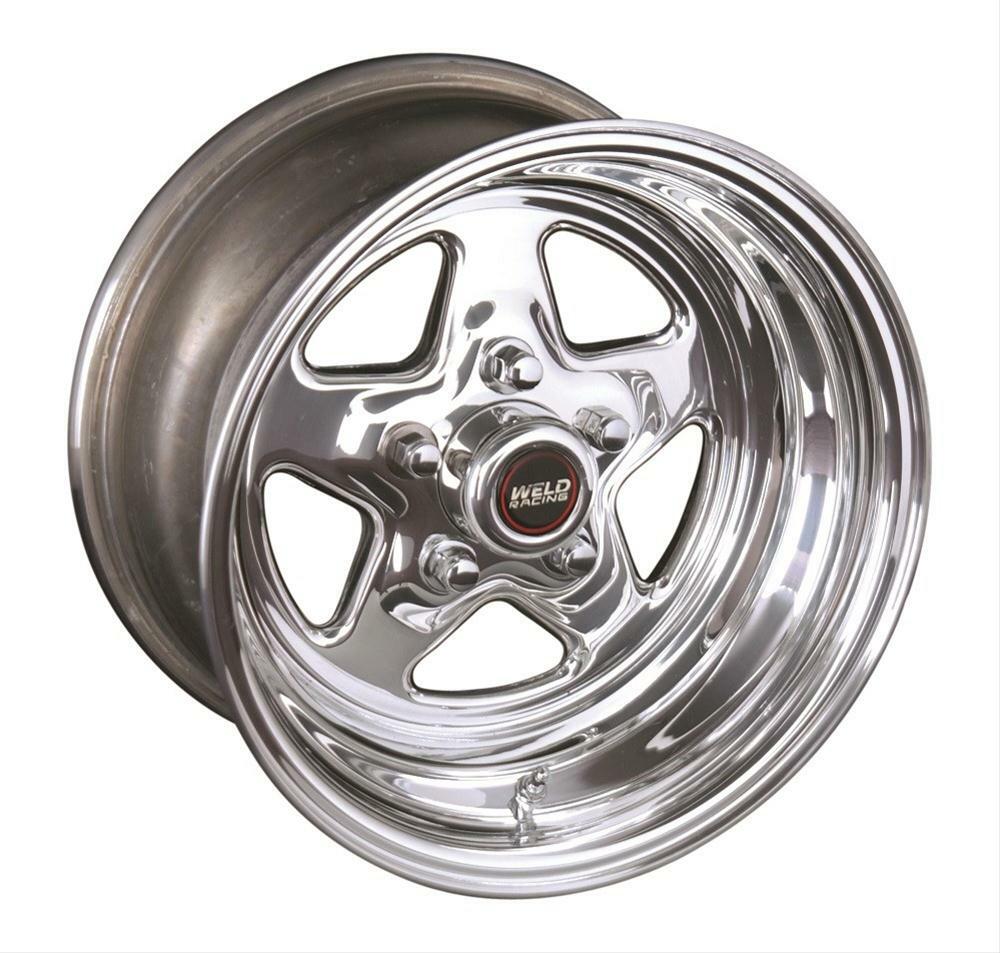

Weld Racing Prostar Polished Wheels
96-512206
Weld Racing Prostar polished wheels are like no other. They're precision-crafted from cold-forged aluminum for superior strength and are up to 40 percent lighter than comparable race wheels. Prostar wheels are guaranteed tubeless and include an aluminum push-through center cap.
Wheel, Prostar, Aluminum, Polished, 15 in. x 12 in., 5 x 4.50 in. Bolt Circle, 3.50 in. Backspace, Each
Manufacturer's Part Number:
96-512206
Wheel Diameter:
15 in.
Wheel Width (in.):
12.00
Wheel Size:
15x12
Wheel Bolt Pattern (application):
- 5 x 114.3mm
- 5 x 4 1/2 in.
Wheel Material:
Forged aluminum
Designed for Dually Truck:
No
Primary Wheel Color:
Polished
Wheel Finish:
Polished
Manufacturers Wheel Series:
Weld Racing Prostar Series
Backspacing (in.):
3.50
Offset:
-76.00mm
Wheel Construction:
2-piece
TPMS Sensor Compatible:
Yes
Beadlock Included:
No
Beadlock Functional:
No
Lug Nut Seat Style:
Shank
Lug Nut Shank Length (in.):
1.38
Lug Nut Shank Diameter (in.):
0.69
Washer Outside Diameter (in.):
1.25 in.
Hub Centric Ring Compatible:
No
Center Bore Diameter (in.):
3.18
Center Bore Diameter (mm):
80.77mm
Center Cap Included:
Yes
Lug Nuts Included:
No
Small Diameter Lug Nuts Required:
No
Valve Stems Included:
Yes
Quantity:
Sold individually.
Notes:
The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.
Special Attention:
Due to the construction of the inner wheel barrel, some aftermarket brake kits may require modification for fitment and clearance.
