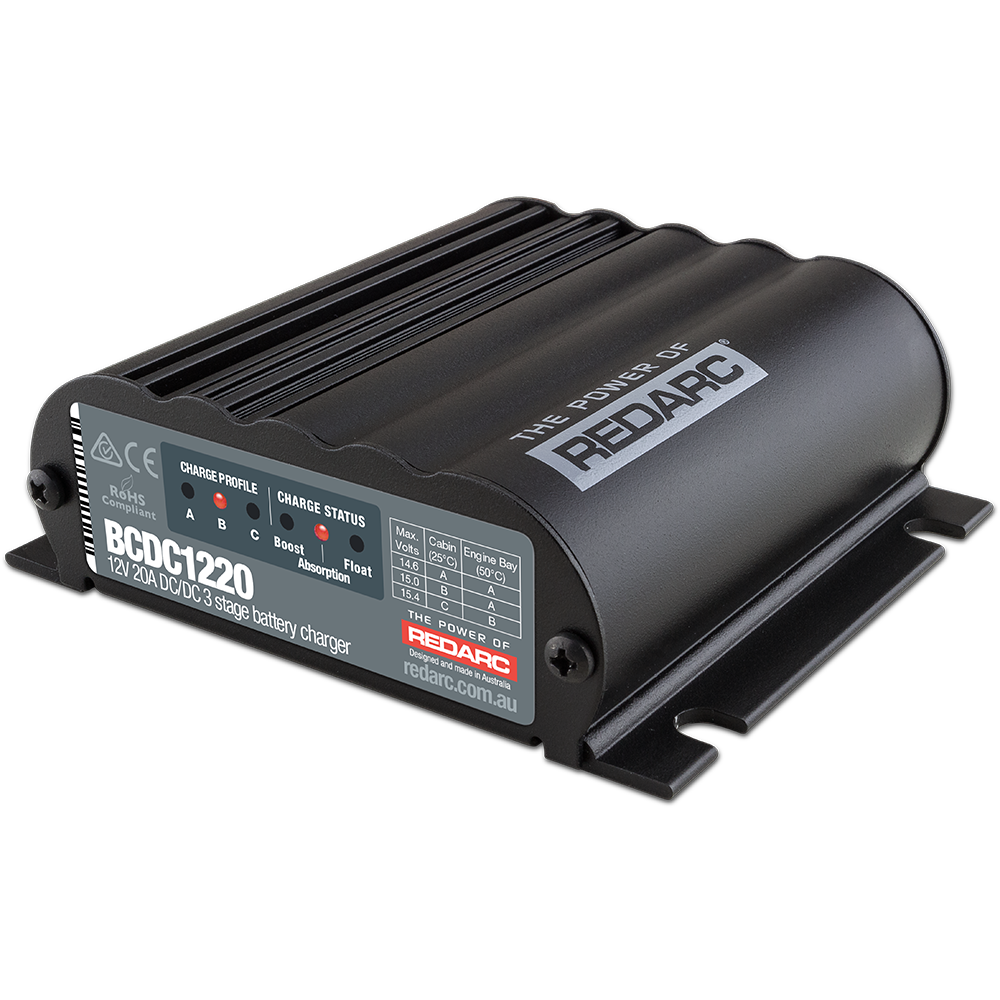

12V 20A Smart Start DCDC 3 Stage Battery Charger
Keep your battery charged while driving with the REDARC BCDC1220. It’s a 12V, 20A, in-vehicle, multi-stage, DC to DC battery charger. It works with a wide operating range from 9-32V and allows you to charge from both 12V and 24V vehicle systems. The BCDC range charges your secondary battery banks to 100% state of charge while on the move.
The unique charging profile for each battery type allows the maintenance of a 100% charge for your auxiliary battery.* It charges AGM, gel, calcium content, VRLA and standard lead acid batteries.
*large capacity battery banks may require a few cycles to fully charge.
The In-vehicle Battery Charger has been proven to operate under extreme heat, up to 176°F, and eliminates the risk of dust or water getting into the unit.
Additionally, the BCDC1220 holds up against the roughest types of terrain and even while crossing deep water. Bottom line: it will keep you on the road and powered up when you need it most.
| WARRANTY | 2 Years |
|---|---|
| GTIN_BARCODE | 9338628002542 |
| BRAND | REDARC |
| BATTERY CHEMISTRY | AGM, Gel, Standard Lead Acid, Calcium, Not suitable for Lithium (LiFePO4) |
| CONTINUOUS RATING | 12A |
| POWER TYPE - AC DC | DC TO DC |
| NOMINAL OUTPUT POWER | 148W (12V vehicle) / 294W (24V vehicle) |
| INPUT FUSE RATING | 16A to 23A (Not supplied) |
| SUITABLE FOR 12V SYSTEMS | Yes |
| SUITABLE FOR 24V SYSTEMS | Yes |
| MPPT SOLAR REGULATOR | No |
| CABIN/ CANOPY INSTALL | Yes |
| NO LOAD CURRENT | <100mA |
| TRAILER INSTALL | Yes |
| ENGINE BAY INSTALL | Yes |
| MAX. CHARGING VOLTAGE | 15.3V |
| OUTPUT FUSE RATING | 31A (Not supplied) |
| OPERATING TEMPERATURE | -4°F to 176°F |
| OUTPUT VOLTAGE | 12V DC |
| MAX. RATED OUTPUT CURRENT | 11A (12V vehicle) / 20A (24V vehicle) |
| INPUT VOLTAGE | 9 - 32V |
| STANDBY CURRENT | <5mA |
| CONNECTOR TYPE | Bare wire |
| WEIGHT | 30 oz (450 g) |
| WIDTH | 4.7" (120 mm) |
| HEIGHT | 1.5" (37 mm) |
| DEPTH | LENGTH | 3.9" (100 mm) |
