Description

REDARC DC Power Supply 40A

DPS1240

DC Power Supply 12V40A

PRODUCT DETAILS

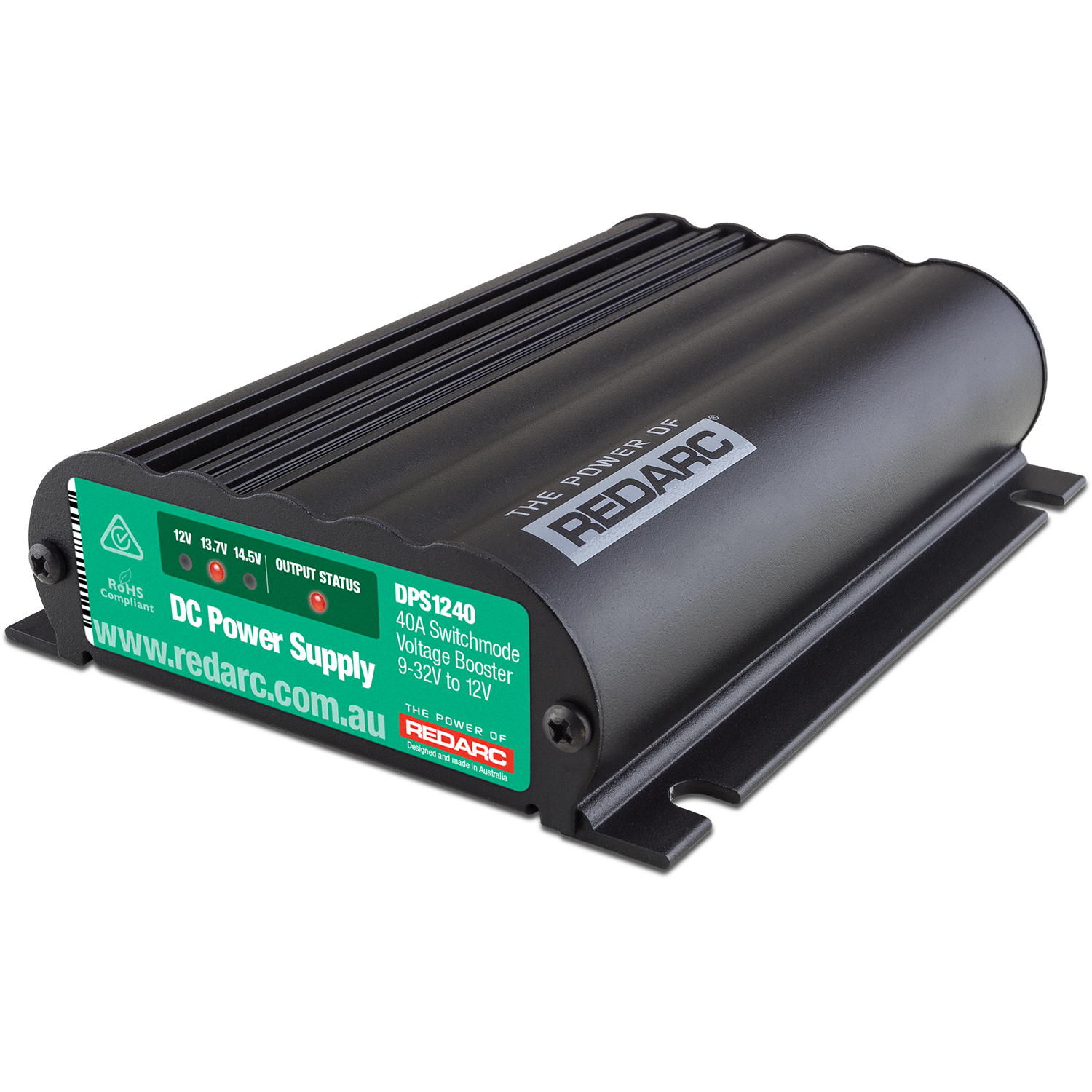

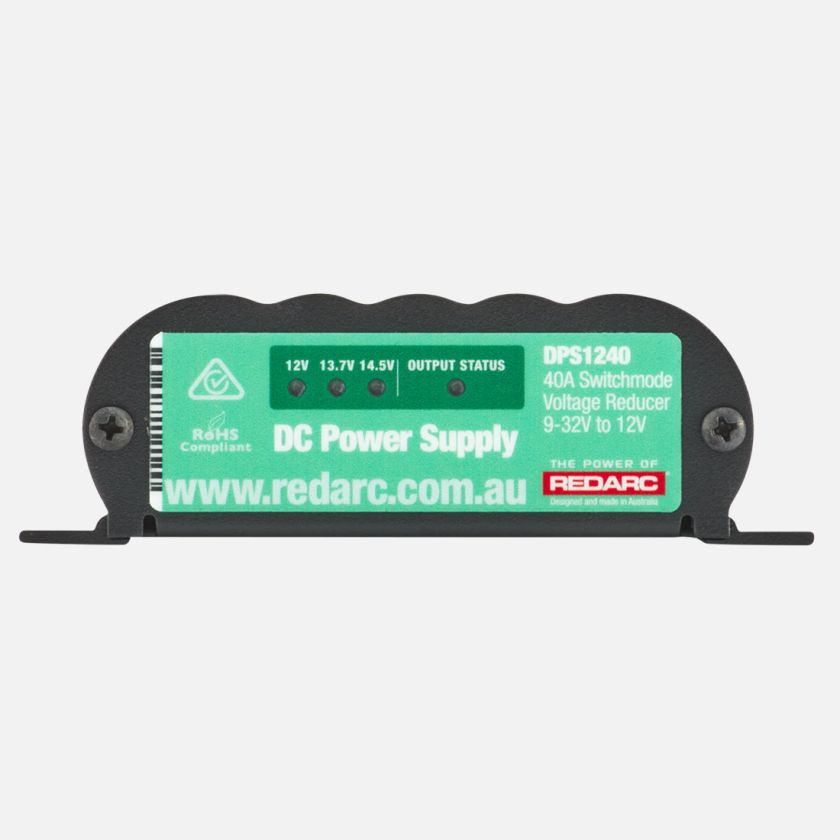

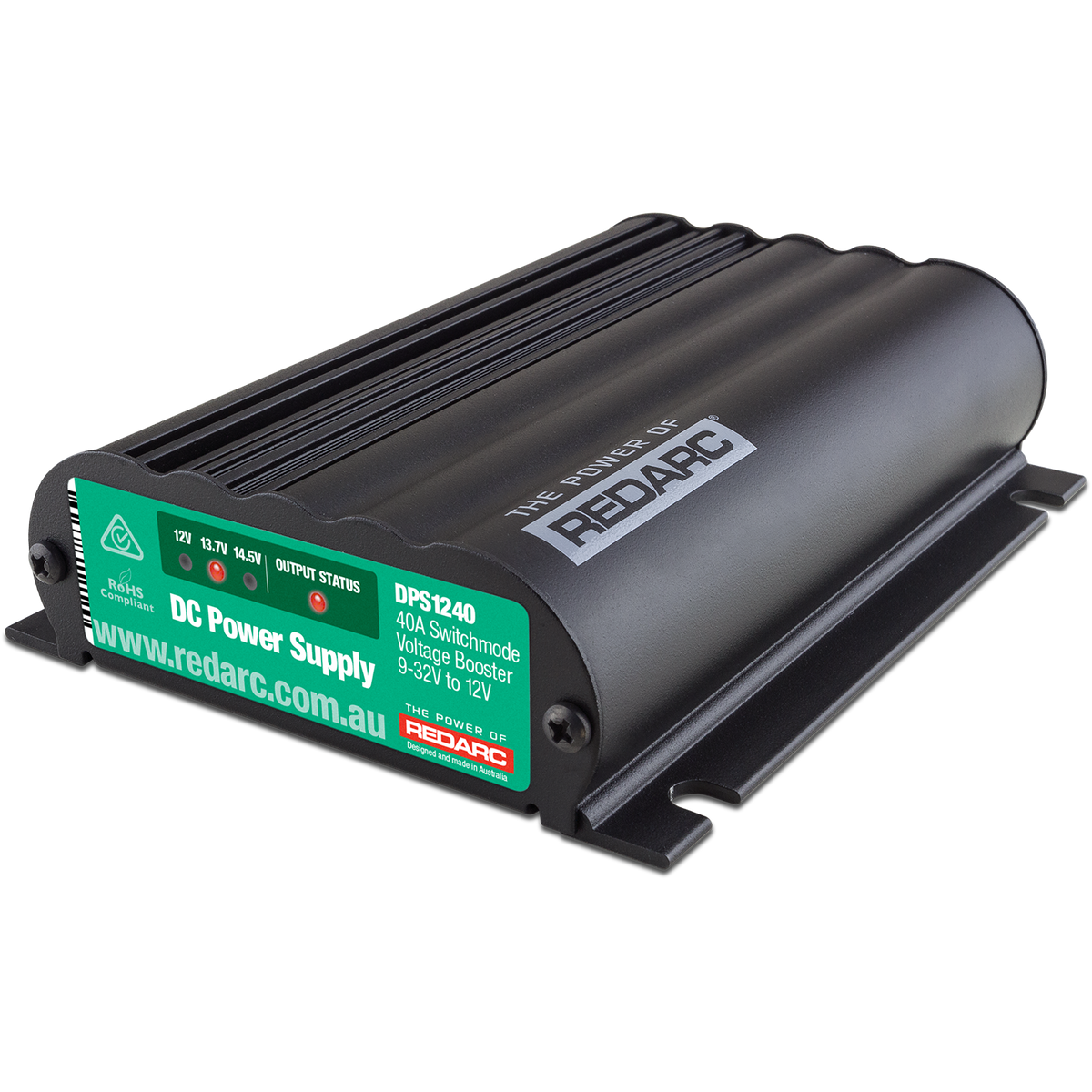

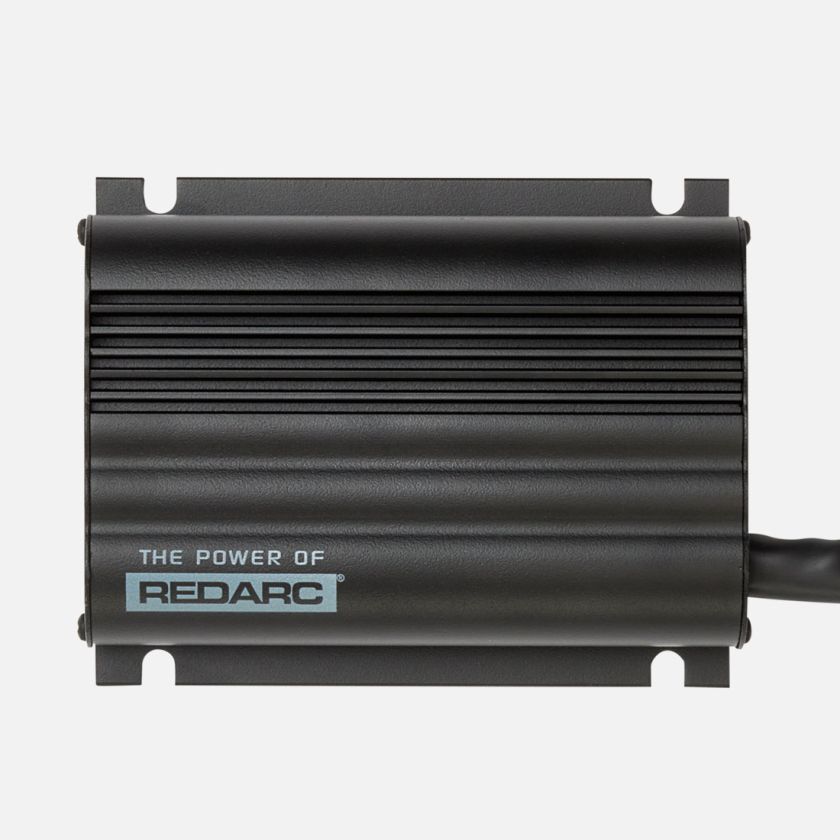

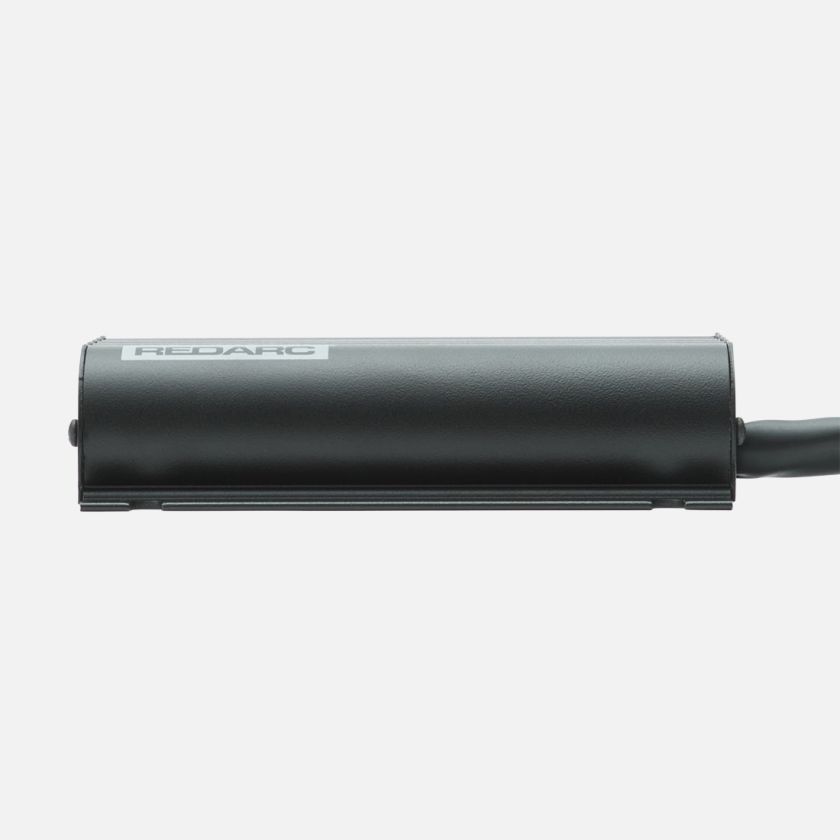

The REDARC DPS1240 is a 12V, 40A DC Power Supply that provides regulated power for sensitive load requirements, including lamps, radios, TVs, and more from a 12V automotive power system.

OVERVIEW

The REDARC DPS1240 is a 12V, 40A DC Power Supply that provides regulated power for sensitive load requirements, including lamps, radios, communications equipment, pumps, TVs, and more from a 12V automotive power system.

PERFECT FOR SENSITIVE LOADS

The 40A DC Power Supply provides a wide input voltage range (9-32V) and optional voltage output for higher efficiency and improved functionality. Without a fan, the noise level is reduced and enables the unit to power hi-tech radio systems without interference.

ROBUST AND FLEXIBLE INSTALLATION OPTION

Encapsulated by REDARC’s silicone elastomer, the 40A DC Power Supply can be mounted on the outside of the vehicle and used in marine situations. There is also a built-in protection against surges and spikes. Plus, the highly efficient design allows for easy installation.

SPECIFICATIONS
More Information
GTIN_BARCODE 9338628003815
BRAND REDARC
NO LOAD CURRENT <100mA
STANDBY CURRENT <5mA
CONVERSION EFFICIENCY >94%
OPERATING TEMPERATURE -58°F to 122°F
WEIGHT 1.5 lb (680 g)
HEIGHT 1.46" (37 mm)
WIDTH 4.72" (120 mm)
DEPTH | LENGTH 5.91" (150 mm)
WARRANTY 2 Years
INPUT VOLTAGE 9 - 32V
OUTPUT VOLTAGE 12V DC
MAX. RATED OUTPUT CURRENT 40A
INPUT FUSE RATING 60A
OUTPUT FUSE RATING 60A
