Description

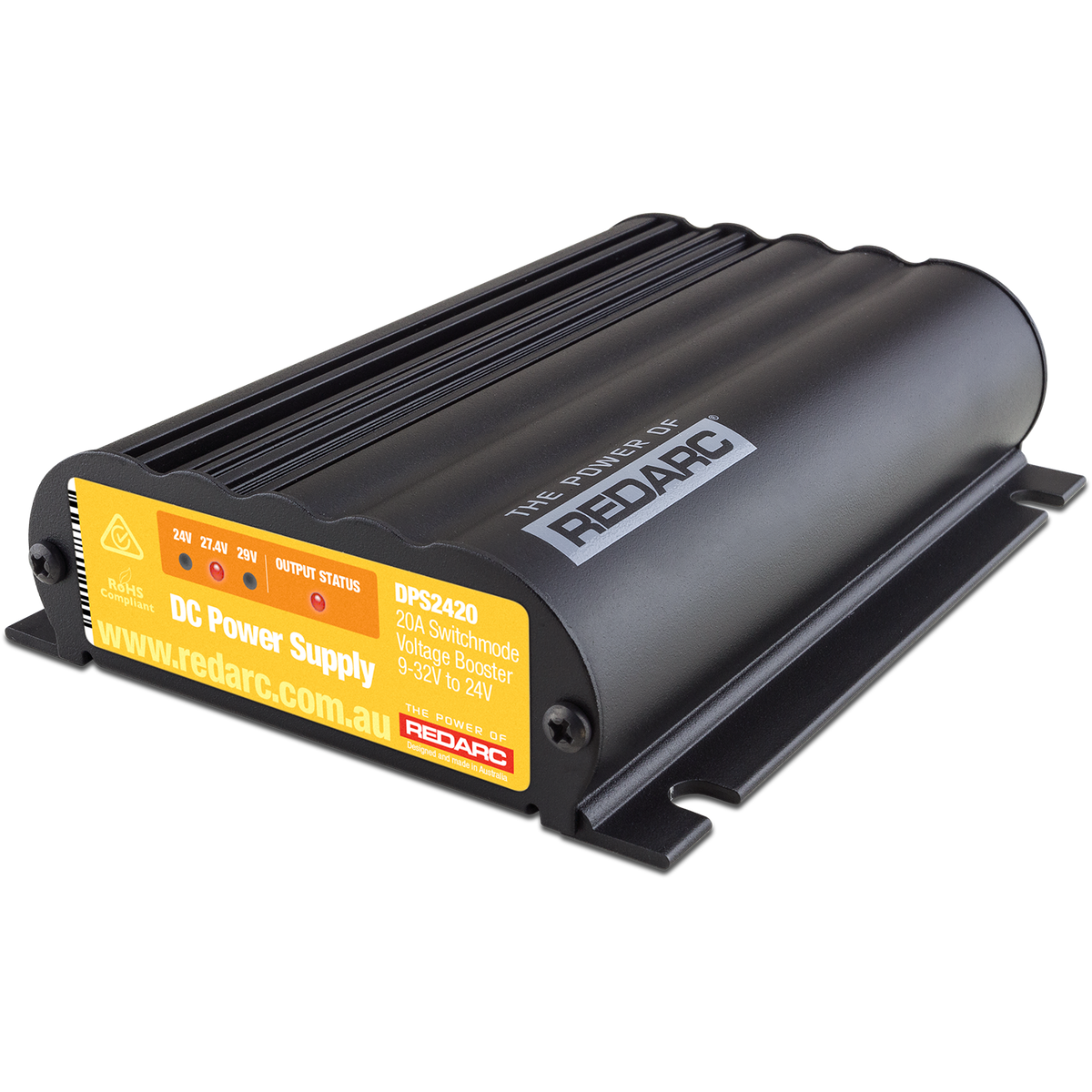

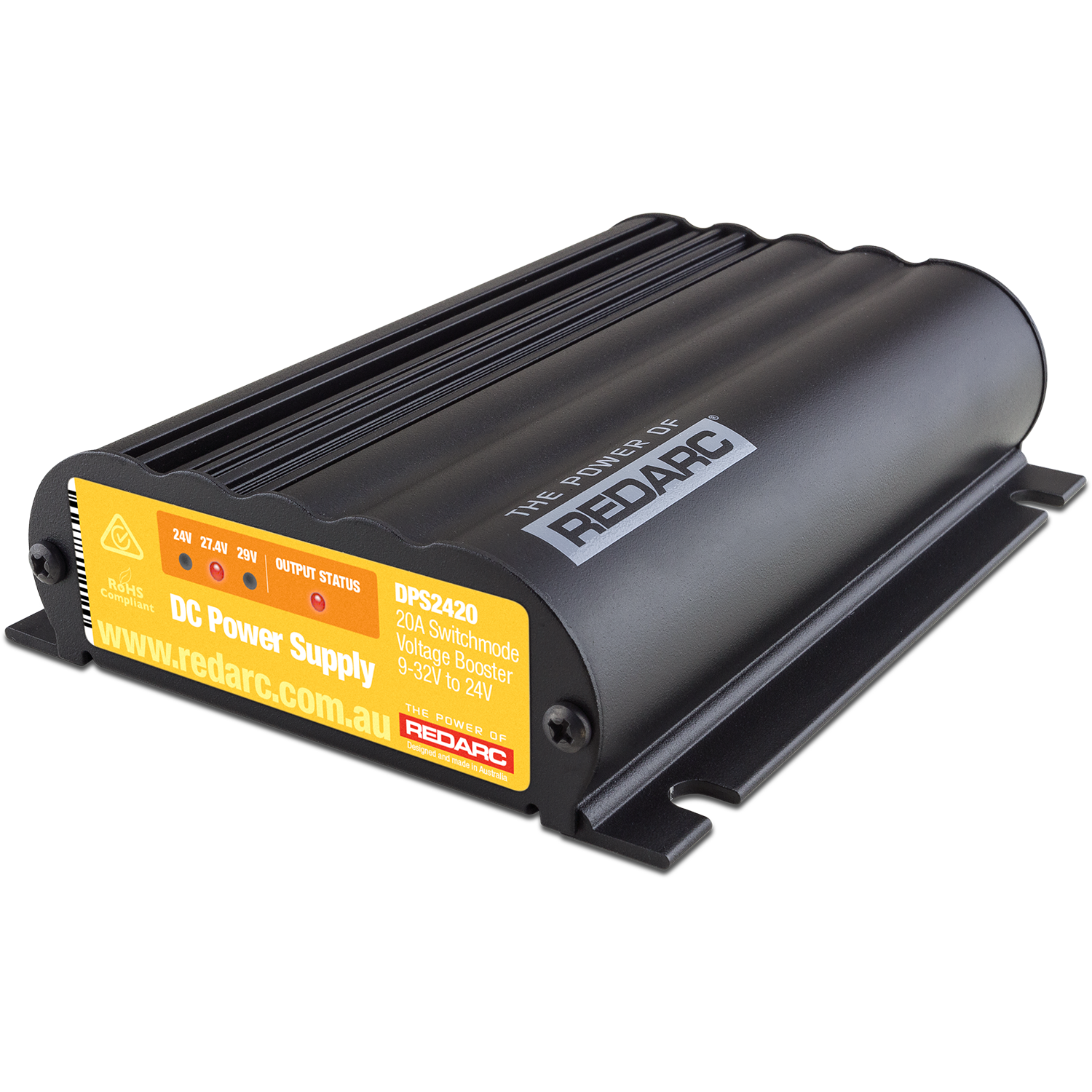

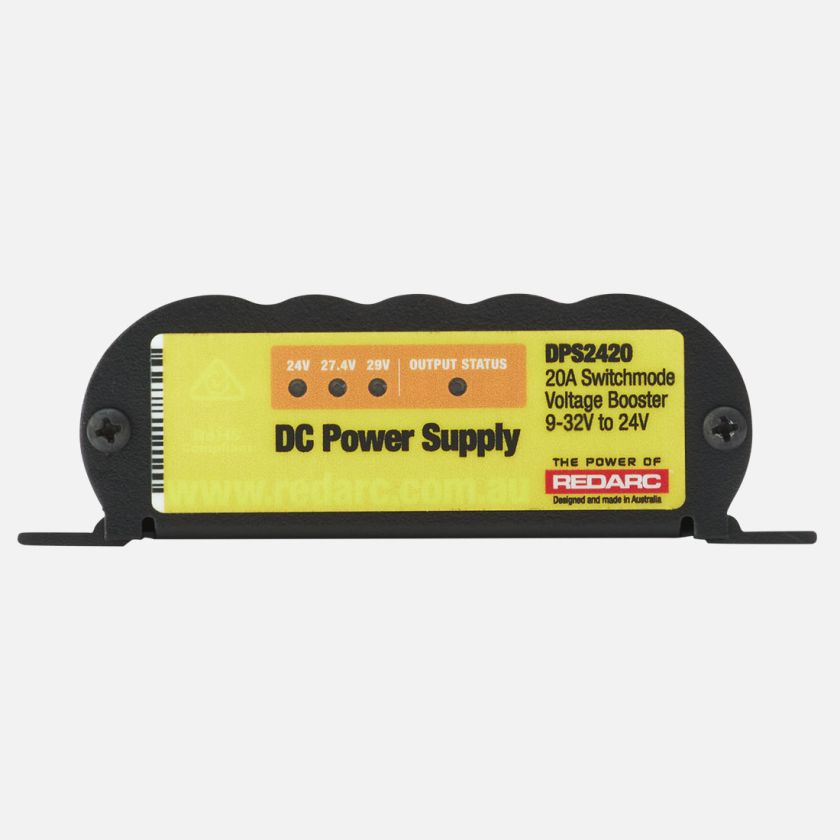

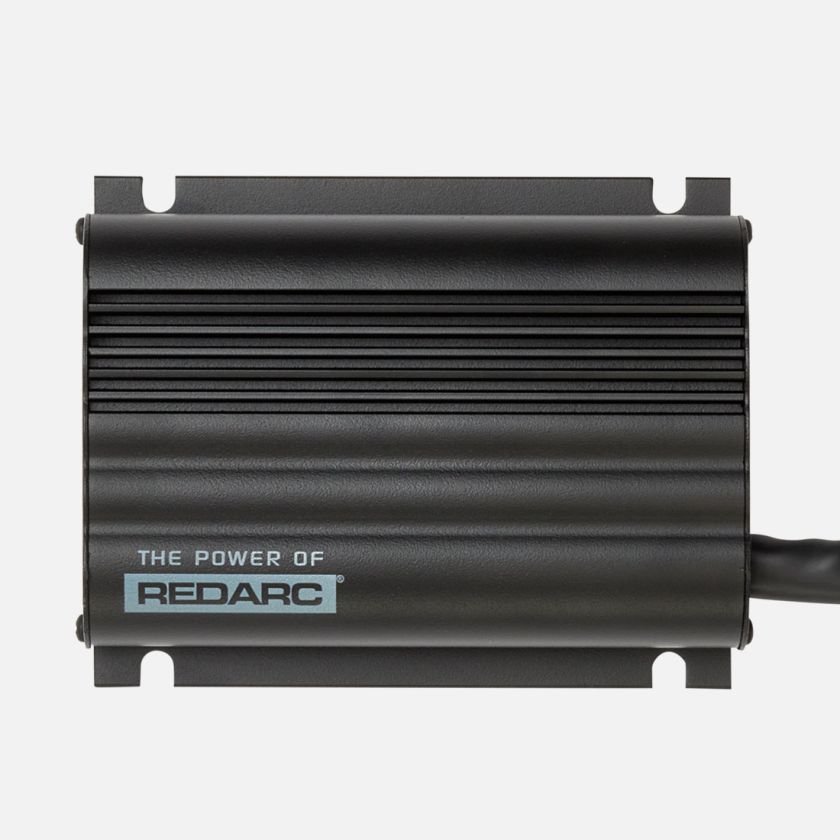

REDARC DC Power Supply 20A

DPS2420

DC Power Supply 24V20A

PRODUCT DETAILS
The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides greater efficiency with regulated power for all sensitive load requirements with voltage output from a 24V automotive power system.

OVERVIEW

The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides greater efficiency with regulated power for all sensitive load requirements, such as lamps, TVs, radios, fridges, and pumps with voltage output from a 24V automotive power system.

ROBUST AND FLEXIBLE INSTALLATION OPTION

Due to the reduced noise from the fan free power supply, there is no interference to power hi-tech radio systems. Additionally, the DC Power Supply has built-in protection against spikes and surges and is fully encapsulated for use in marine applications, as needed.

For certain situations, the DC Power Supply is a suitable option for those who want to install an auxiliary battery.



SPECIFICATIONS
More Information
GTIN_BARCODE 9338628003839
BRAND REDARC
NO LOAD CURRENT <100mA
STANDBY CURRENT <5mA
CONVERSION EFFICIENCY >94%
OPERATING TEMPERATURE -58°F to 122°F
WEIGHT 1.5 lb (680 g)
HEIGHT 1.46" (37 mm)
WIDTH 4.72" (120 mm)
DEPTH | LENGTH 5.91" (150 mm)
WARRANTY 2 Years
INPUT VOLTAGE 9 - 32V
OUTPUT VOLTAGE 24V DC
MAX. RATED OUTPUT CURRENT 20A
INPUT FUSE RATING 60A
OUTPUT FUSE RATING 40A
