Description

Carli Suspension CS-DFRA-14 Fabricated Radius Arm System - 3.25 inch Lift

CS-DFRA-14

Carli Radius Arms
CS-DFRA-14
Requires Radius Arm Drop Brackets with Carli 3/3.25″ front lift
torque arm, torque spring, torsion bar, suspension link, trailing arm, radius rod
Carli Fabricated Radius Arms, 3.25" Lift Systems
14-22 RAM 2500/3500 4X4 FABRICATED RADIUS ARM SYSTEM - 3.25" LIFT
The perfect upgrade to for any avid off-roader, or just anyone looking to improve strength and appearance to their truck, the Carli Radius Arms are an all-around win.

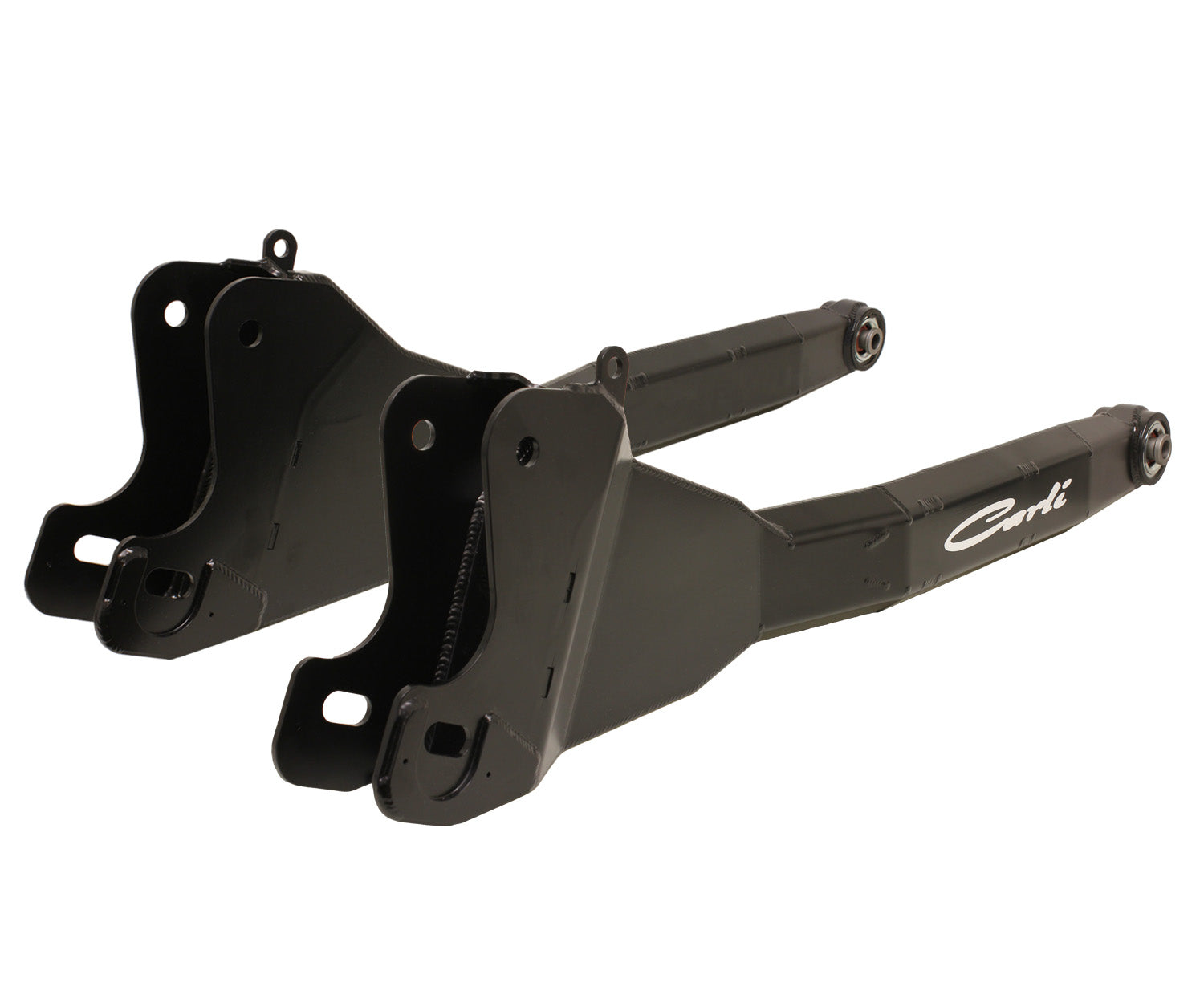

Carli Fabricated Radius Arms are an exponentially superior upgrade to weak, stamped factory radius arms. Fabricated Radius Arms feature thick fully boxed plate steel construction, robust cross-bracing and gusseting, and a rebuildable 17-4 Stainless spherical joint which allows unhindered articulation while eliminating the kinetic “kick” of the large factory bushings as they wind up with energy. The end result yields a smoother ride with greater, tighter control. Includes custom-length quad-wrap limit straps that prevent over-travel of the shock in extreme off-road conditions.
Fits 2013 to 2022 Ram 2500/3500, 4x4
Provides massive strength upgrade versus. stock arm
Improved ride quality and vehicle control
Features internal X-bracing & serviceable 17-4 stainless spherical joints
Includes 12″ quad wrap limit straps, for 3.25″ lift systems
14-23 RAM 2500/3500 4X4 FABRICATED RADIUS ARM SYSTEM - 3.25" LIFT
Carli Fabricated Radius Arms, 3.25” Lift, 2013-23 Ram 2500/3500, 4x4
