Carli Suspension CS-DPT25-1319-D 3.25 inch Lift Pintop System

CS-DPT25-1319-D

Pintop Leveling
CS-DPT25-1319-D
Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DTSB3-1419 or CS-DSBD-14
Leaf Spring Options (REQUIRED): CS-DPAP-03-D or CS-DFSP-13-D
Carli Dodge Leveling Pintop 2.5 System, BASE
Carli's most popular system, The pintop kit boasts Remote Reservoir King 2.5" shocks. Designed and tuned in house for the customer looking for substantial on and offroad performance improvement.
Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter (2.5”) shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

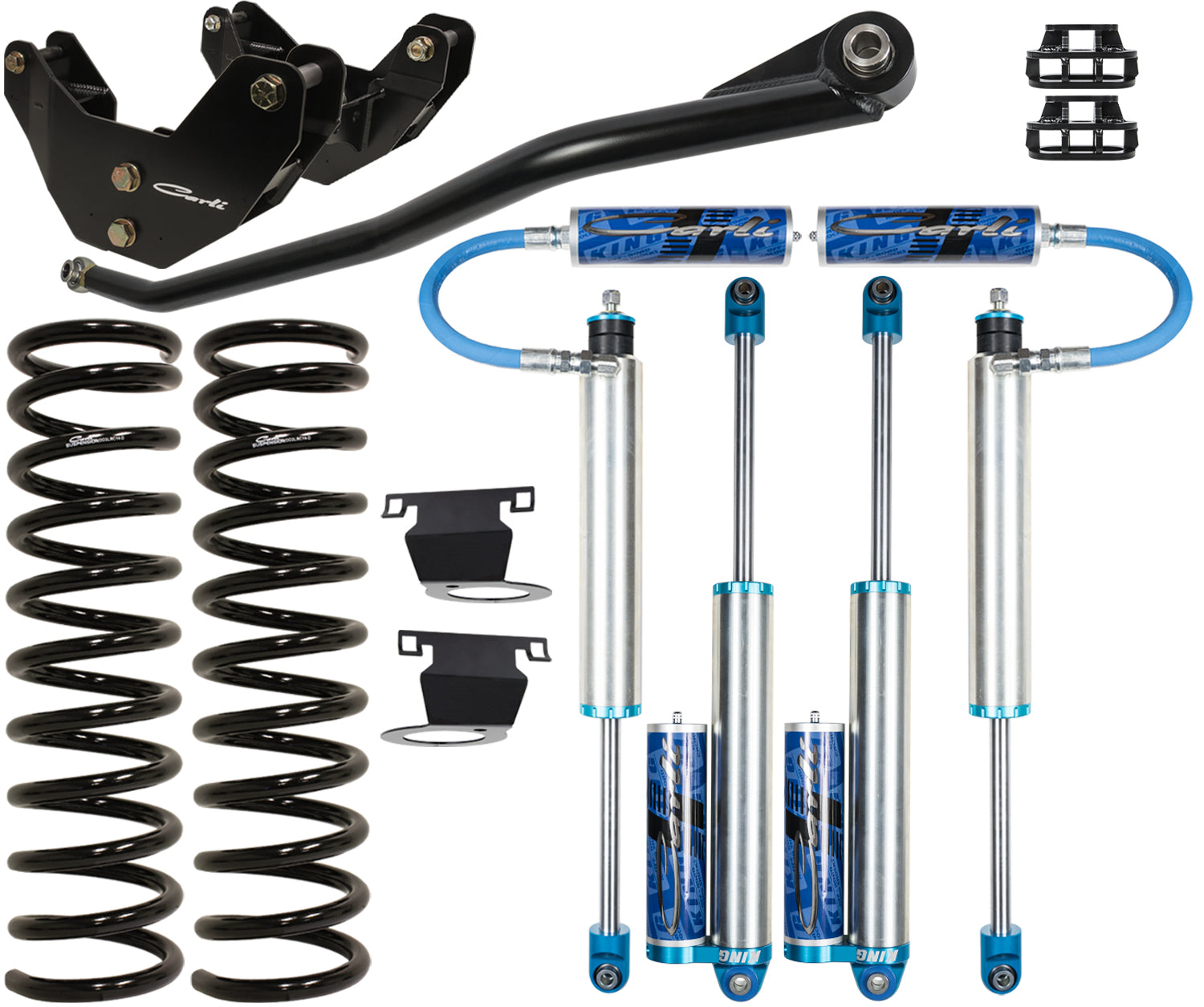

System includes Linear-rate front coil springs, front and rear shock package, foront bump drops, radius arm drops and adjustable track bar.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
Increases wheel travel to 9.3" front and 13" rear.
13-23 RAM 3500 4X4 DIESEL 3.25" LIFT PINTOP SYSTEM
Carli Pintop 2.5 Leveling System, Base, 3.25” Lift, 2014-22 Ram 3500, Coil
